2012 Mitsubishi Lancer Evolution MRFACTORY OEM SERVICE PROCEDURE

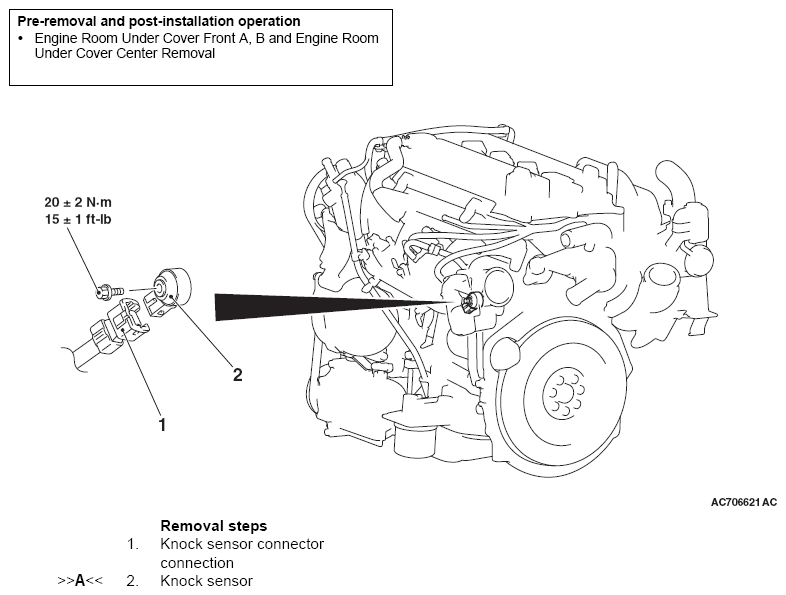

Removal And Installation: Notes
CAUTION:
- When the knock sensor replacement is performed, use scan tool MB991958 to initialize the learning value (Refer to INITIALIZATION PROCEDURE FOR LEARNING VALUE IN MFI ENGINE ).
- Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.
