2012 Mitsubishi Eclipse SEFACTORY OEM SERVICE PROCEDURE

Engine Model Stamping

The engine model is stamped on the cylinder block.

The engine model number is as shown as follow.

ENGINE MODEL SPECIFICATION

ENGINE MODEL	ENGINE DISPLACEMENT
4G69	2.4L
6G75	3.8L

The engine serial number is stamped near the engine model number.

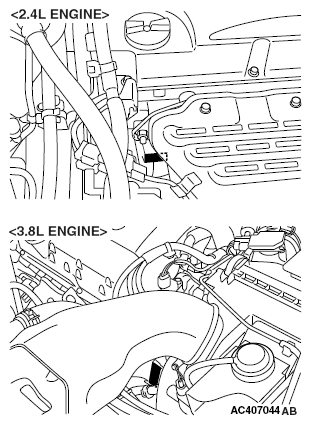

Fig 1: Locating Engine Model Stamped On Cylinder Block

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
