2012 Mitsubishi Eclipse SEFACTORY OEM SERVICE PROCEDURE
Measurement Method

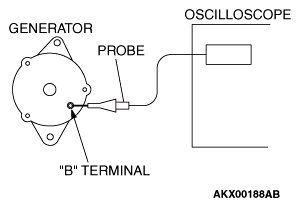

Connect the oscilloscope special patterns pick-up to the generator "B" terminal.

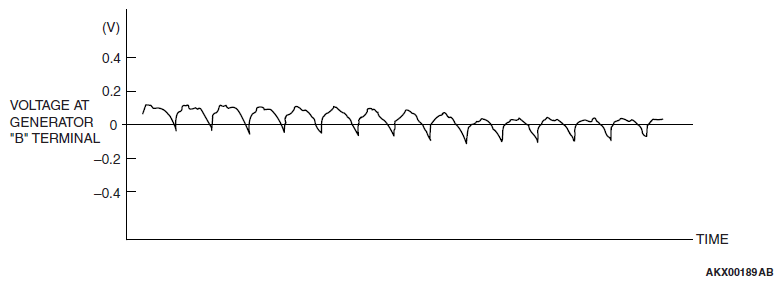

STANDARD WAVEFORM
STANDARD WAVEFORM
| Observation Conditions | |
|---|---|
| FUNCTION | SPECIAL PATTERNS |
| Pattern height | Variable |
| Variable knob | Adjust while viewing the wave pattern |
| Pattern selector | Raster |
| Engine revolutions | Curb idle speed |
