2011 Mitsubishi Eclipse GTFACTORY OEM SERVICE PROCEDURE

A/T Control Relay Check

Remove the A/T control relay.

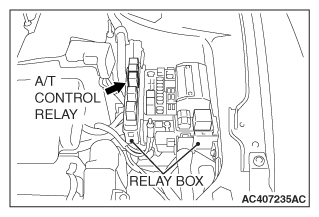

Fig 1: Locating A/T Control Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use jumper wires to connect A/T control relay terminal 3 to the negative battery terminal and terminal 2 to the positive battery terminal.

Fig 2: Checking Continuity Between A/T Control Relay Terminals 1 And 4
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Check for continuity between A/T control relay terminals 1 and 4 when the jumper wires are connected to and disconnected from the battery.

CONTINUITY SPECIFICATION

JUMPER WIRE	CONTINUITY BETWEEN TERMINALS NO. 1 AND NO. 4
Connected	Continuity
Disconnected	No continuity

If there is any problem with the A/T control relay, replace it.
