2011 Mitsubishi Eclipse GTFACTORY OEM SERVICE PROCEDURE

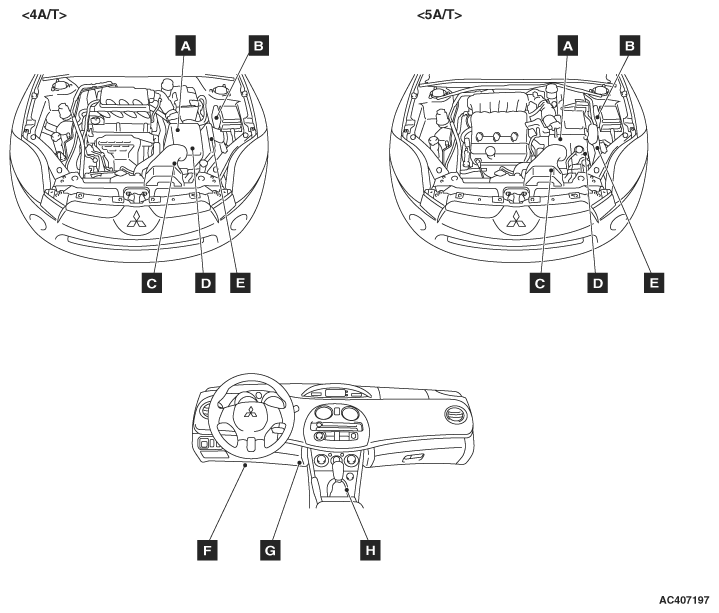

A/T Control Component Layout
SYMBOL REFERENCE
| NAME | SYMBOL | NAME | SYMBOL |
|---|---|---|---|
| A/T control relay | B | Powertrain control module (PCM) | E |
| A/T control solenoid valves | D | Stoplight switch | F |
| Data link connector | G | Shift switch assembly | H |
| Input shaft speed sensor | A | Transmission fluid temperature sensor | D |
| Output shaft speed sensor | A | Transmission range switch | C |
