2008 Mitsubishi Eclipse L4-2.4L (4G69)FACTORY OEM SERVICE PROCEDURE
System Specifications
Timing Belt tensioner

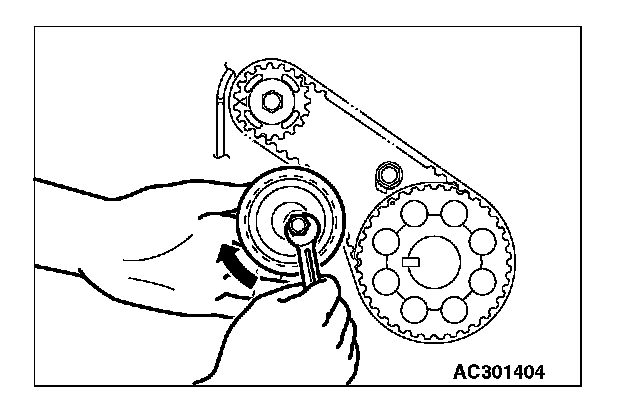

Lift with your fingers the balancer timing belt tensioner in the direction of the arrow. Apply a tensile torque of [3.0 ± 0.4 Nm (26 ± 4 in-lb)] to the balancer timing belt so the belt is tense without any looseness. Tighten the assembling bolt to the specified torque in this state. Then, fix the balancer timing belt tensioner.
Tightening torque 19 ± 3 Nm (14 ± 2 ft-lb)
Timing Belt Cover
Tightening torque for bolt M6 (Bolt, washer assembly) 9.0 ± 1.0 Nm (80 ± 8 in-lb)
Tightening torque for bolt M6 (Flange bolt and nut) 11 ± 1 Nm (98 ± 8 in-lb)
Tightening torque for bolt M8 14 ± 1 Nm (124 ± 8 in-lb)
Crankshaft Damper Pulley
Tightening torque 25 ± 4 Nm (18 ± 3 ft-lb)
Lift with your fingers the balancer timing belt tensioner in the direction of the arrow. Apply a tensile torque of [3.0 ± 0.4 Nm (26 ± 4 in-lb)] to the balancer timing belt so the belt is tense without any looseness. Tighten the assembling bolt to the specified torque in this state. Then, fix the balancer timing belt tensioner.
Tightening torque 19 ± 3 Nm (14 ± 2 ft-lb)
Timing Belt Cover
Tightening torque for bolt M6 (Bolt, washer assembly) 9.0 ± 1.0 Nm (80 ± 8 in-lb)
Tightening torque for bolt M6 (Flange bolt and nut) 11 ± 1 Nm (98 ± 8 in-lb)
Tightening torque for bolt M8 14 ± 1 Nm (124 ± 8 in-lb)
Crankshaft Damper Pulley
Tightening torque 25 ± 4 Nm (18 ± 3 ft-lb)
