2008 Mitsubishi Eclipse L4-2.4L (4G69)FACTORY OEM SERVICE PROCEDURE
Engine Control Module: Testing and Inspection
CHECK AT THE ENGINE CONTROL MODULE (ECU) [M/T] OR THE POWERTRAIN CONTROL MODULE (PCM) [A/T]
1. Disconnect the ECM [M/T] or the PCM [A/T] connectors B-18, B-19, B-20, B-21 and B-22, and connect check harness special tool MB991923 between the ECM [M/T] connectors or the PCM [A/T] connectors.
2. Measure the voltage between each check harness connector terminal and check harness connector ground terminal (No. 25 or No. 29).
TERMINAL VOLTAGE CHECK CHART
TERMINAL RESISTANCE AND CONTINUITY CHECK
1. Disconnect the ECM [M/T] or the PCM [A/T] connectors B-18, B-19, B-20, B-21 and B-22, and connect check harness special tool MB991923 between the ECM [M/T] connectors or the PCM [A/T] connectors.
2. Measure the voltage between each check harness connector terminal and check harness connector ground terminal (No. 25 or No. 29).
TERMINAL VOLTAGE CHECK CHART

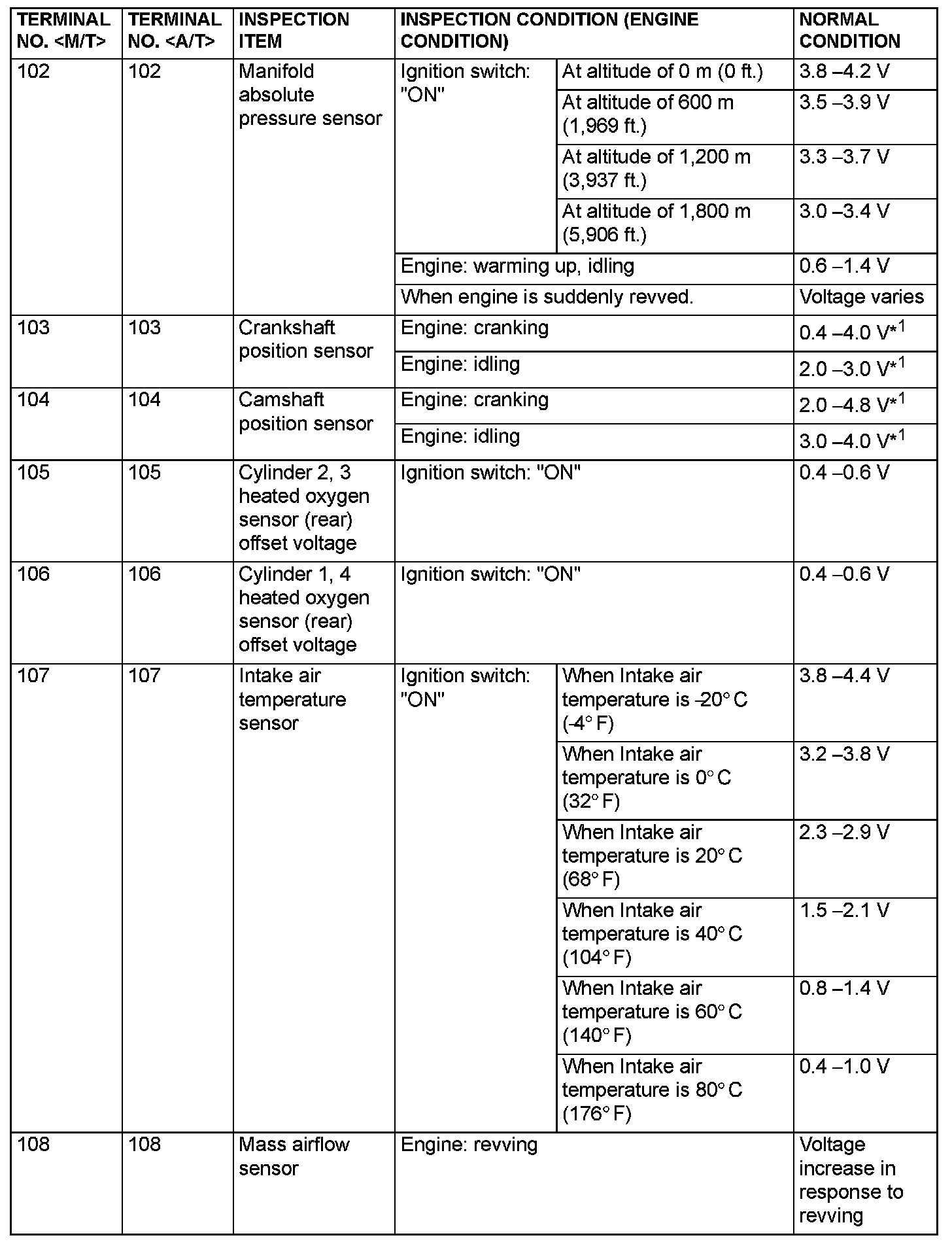

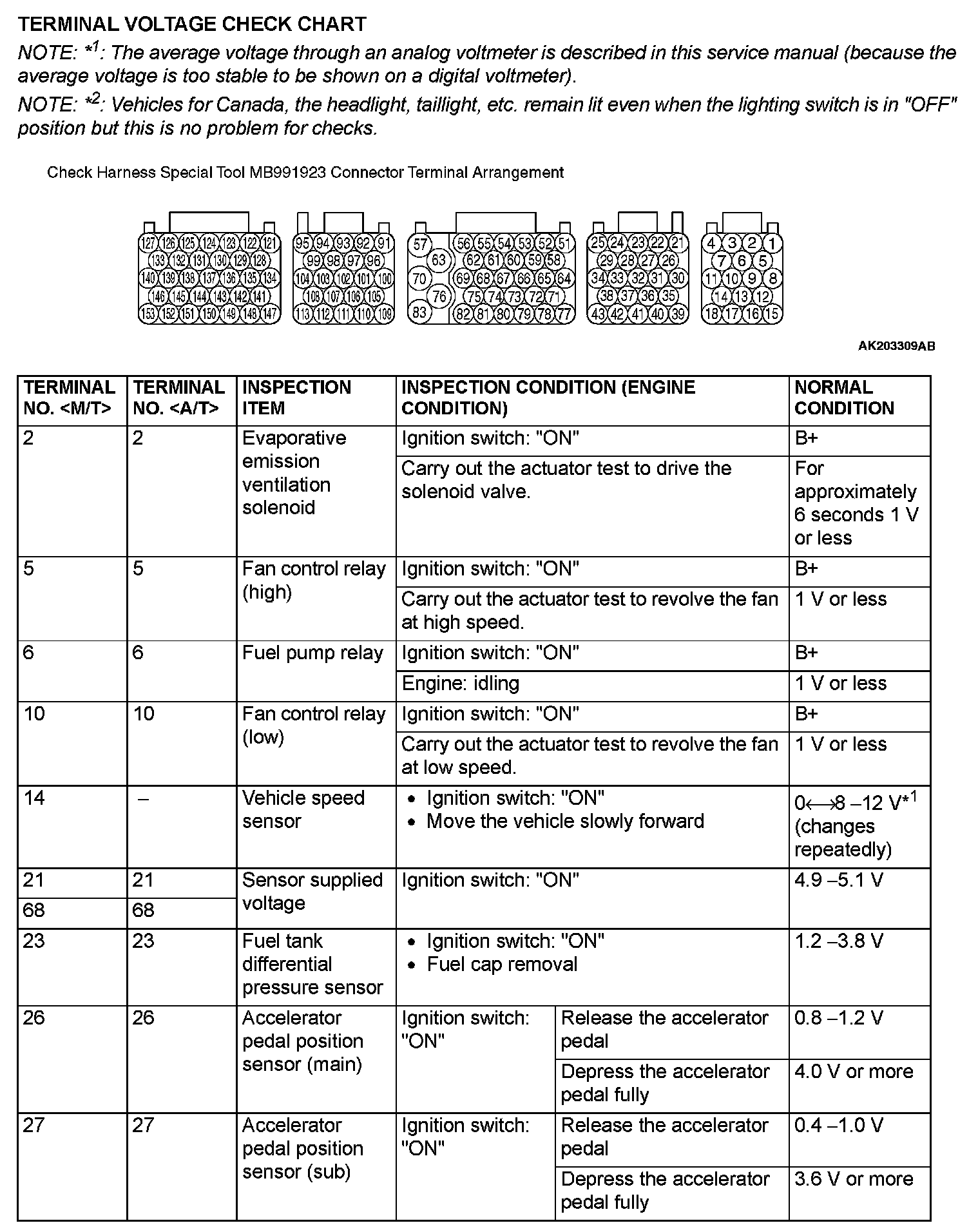

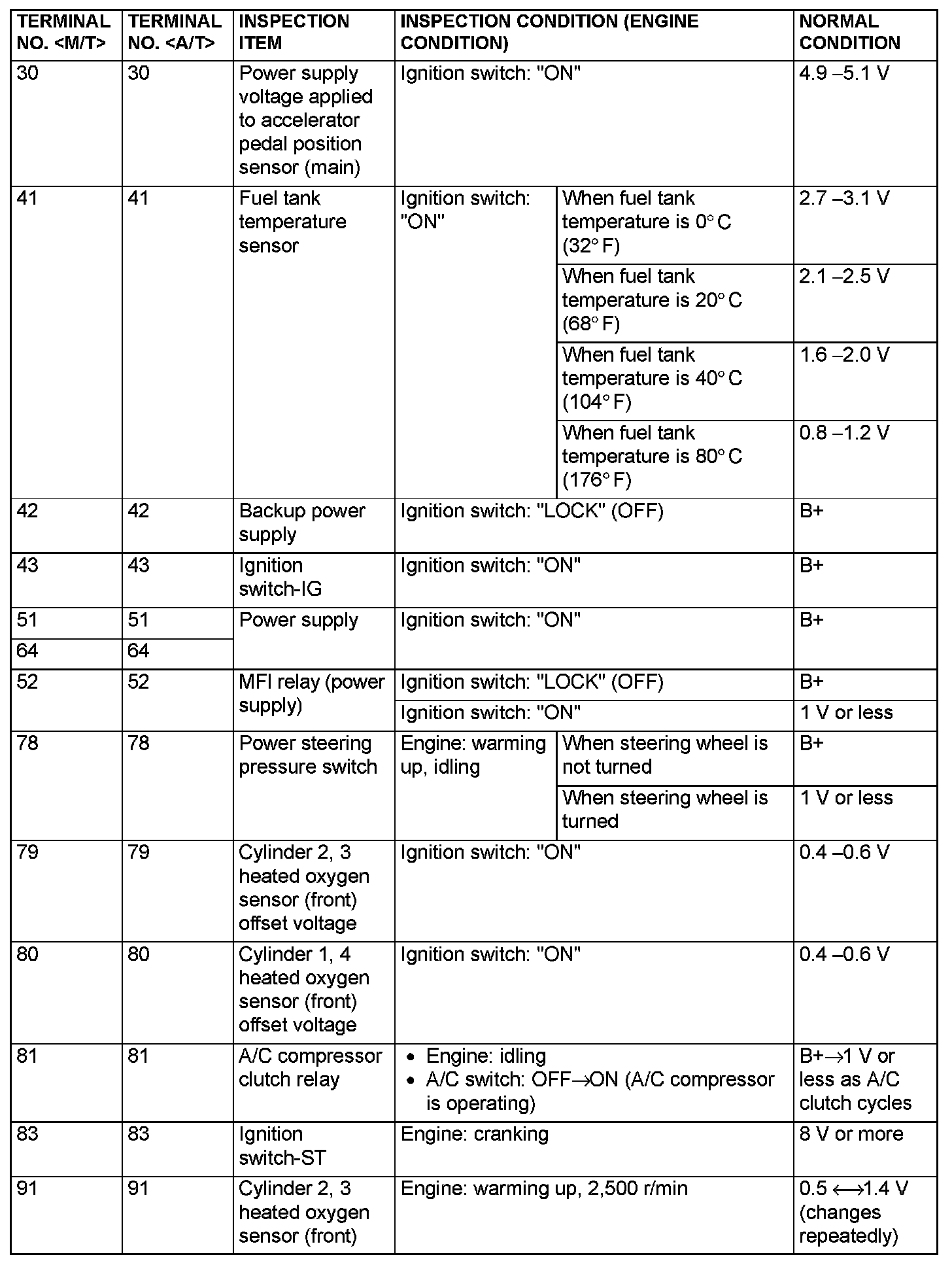

Terminal Voltage Check Chart (Part 1):

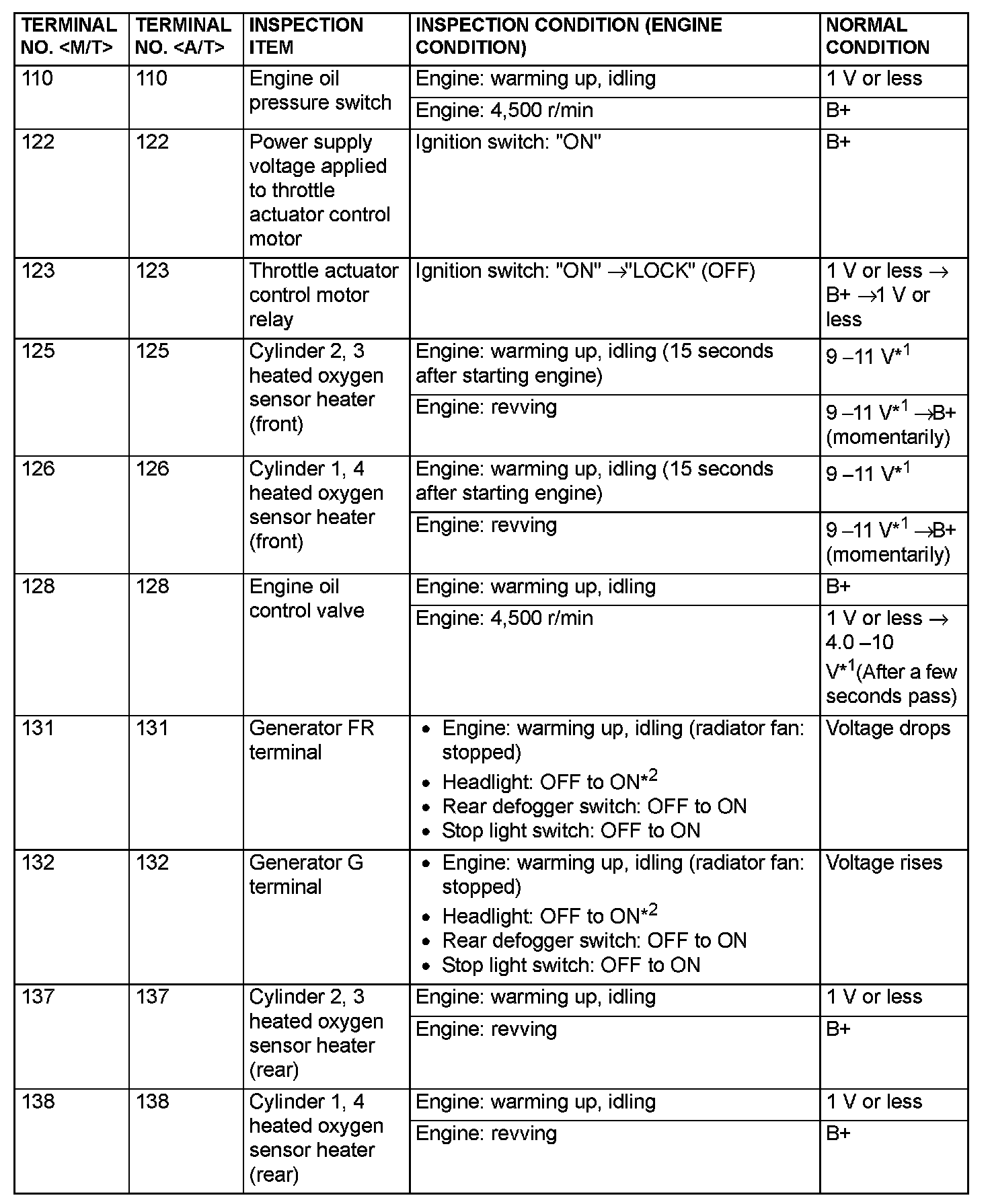

Terminal Voltage Check Chart (Part 2):

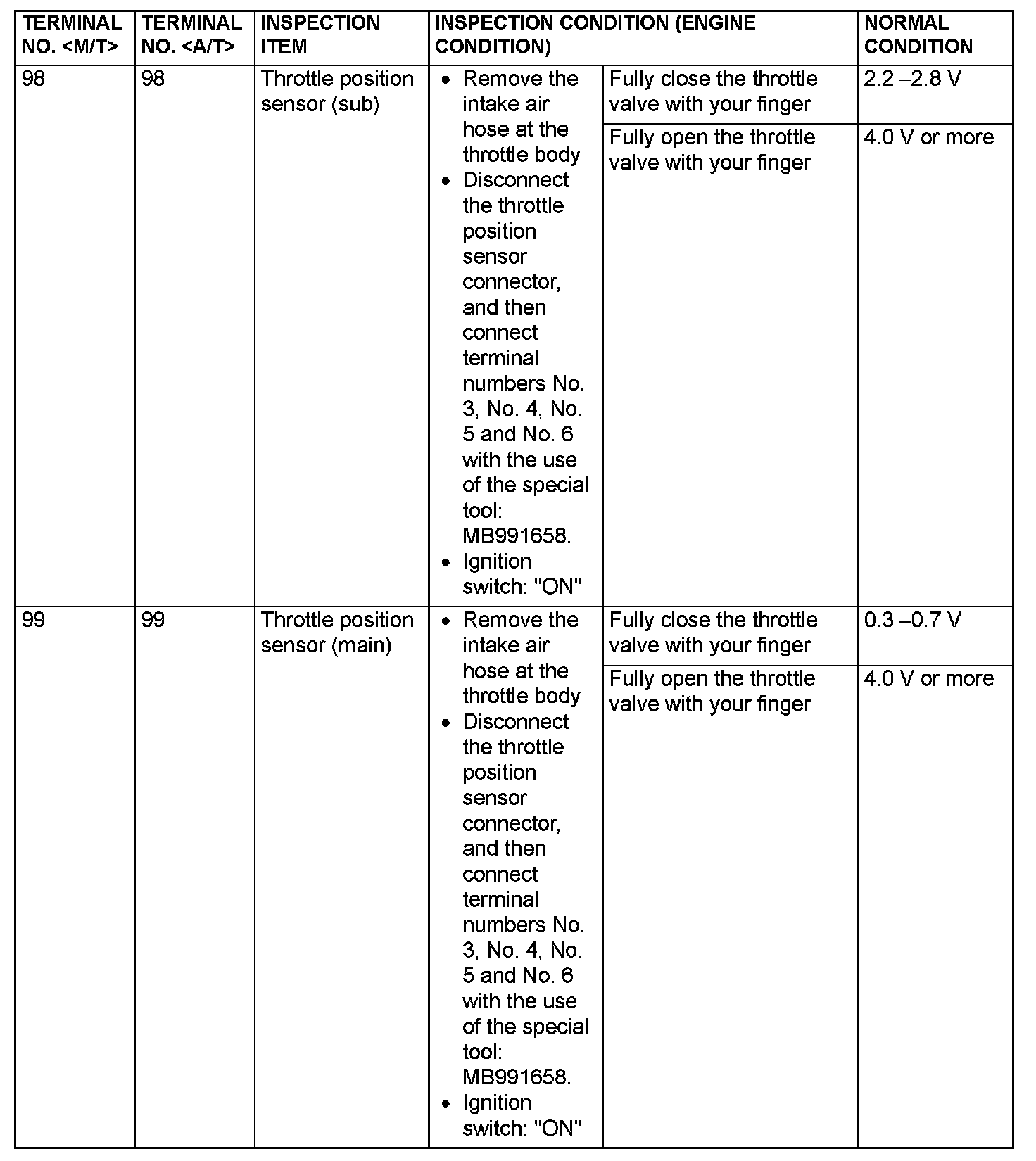

Terminal Voltage Check Chart (Part 3):

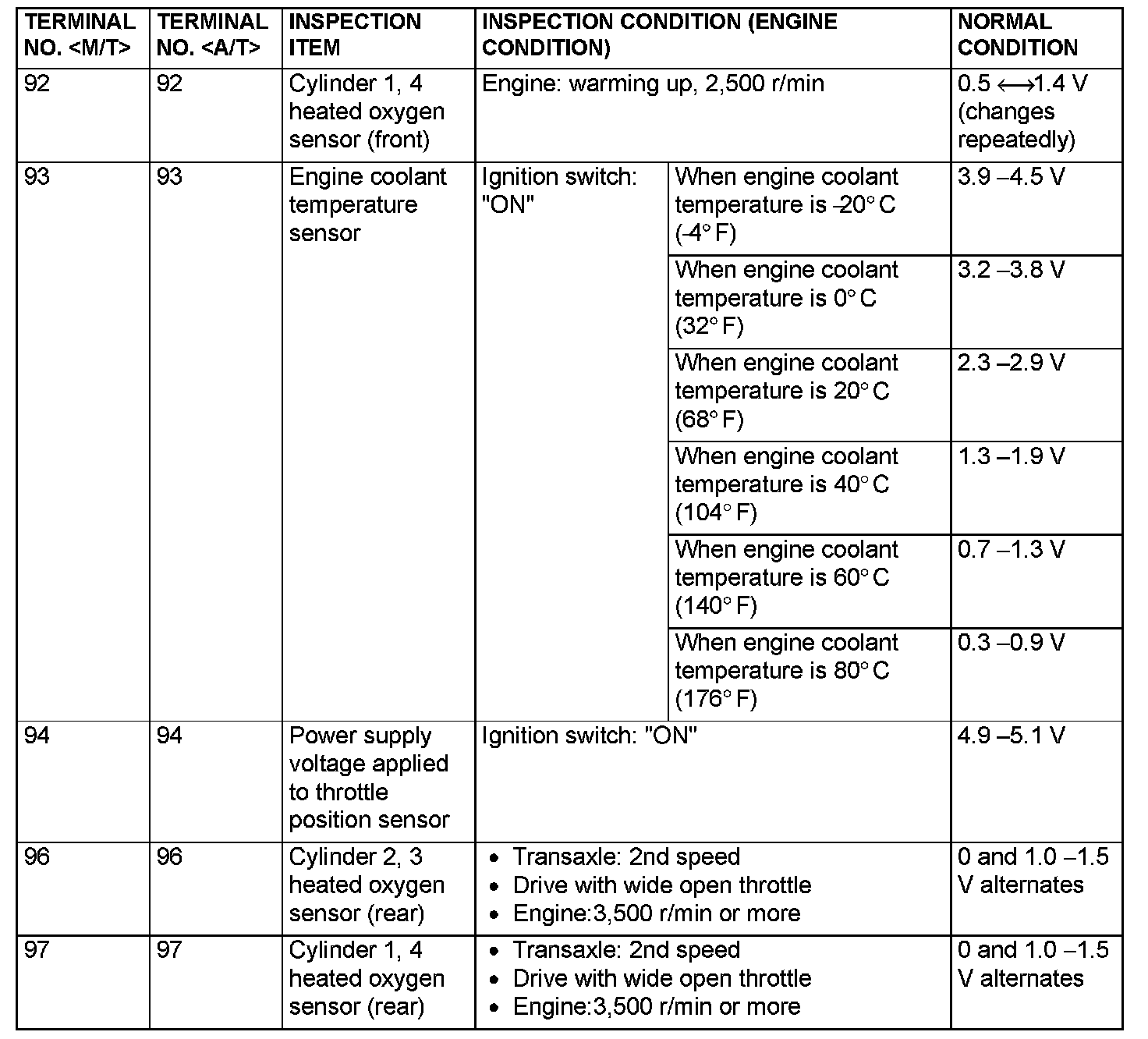

Terminal Voltage Check Chart (Part 4):

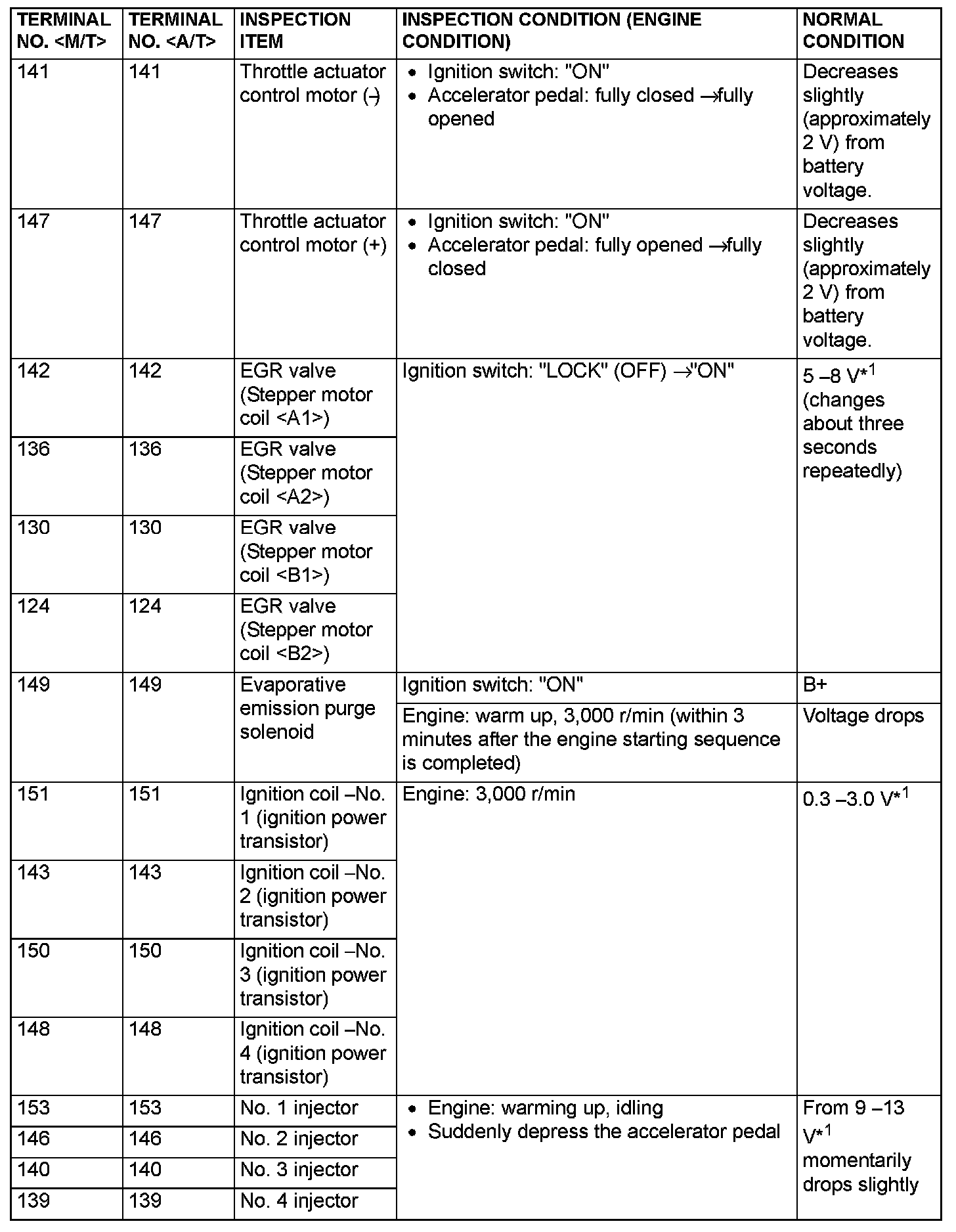

Terminal Voltage Check Chart (Part 5):
Terminal Voltage Check Chart (Part 6):
Terminal Voltage Check Chart (Part 7):
TERMINAL RESISTANCE AND CONTINUITY CHECK

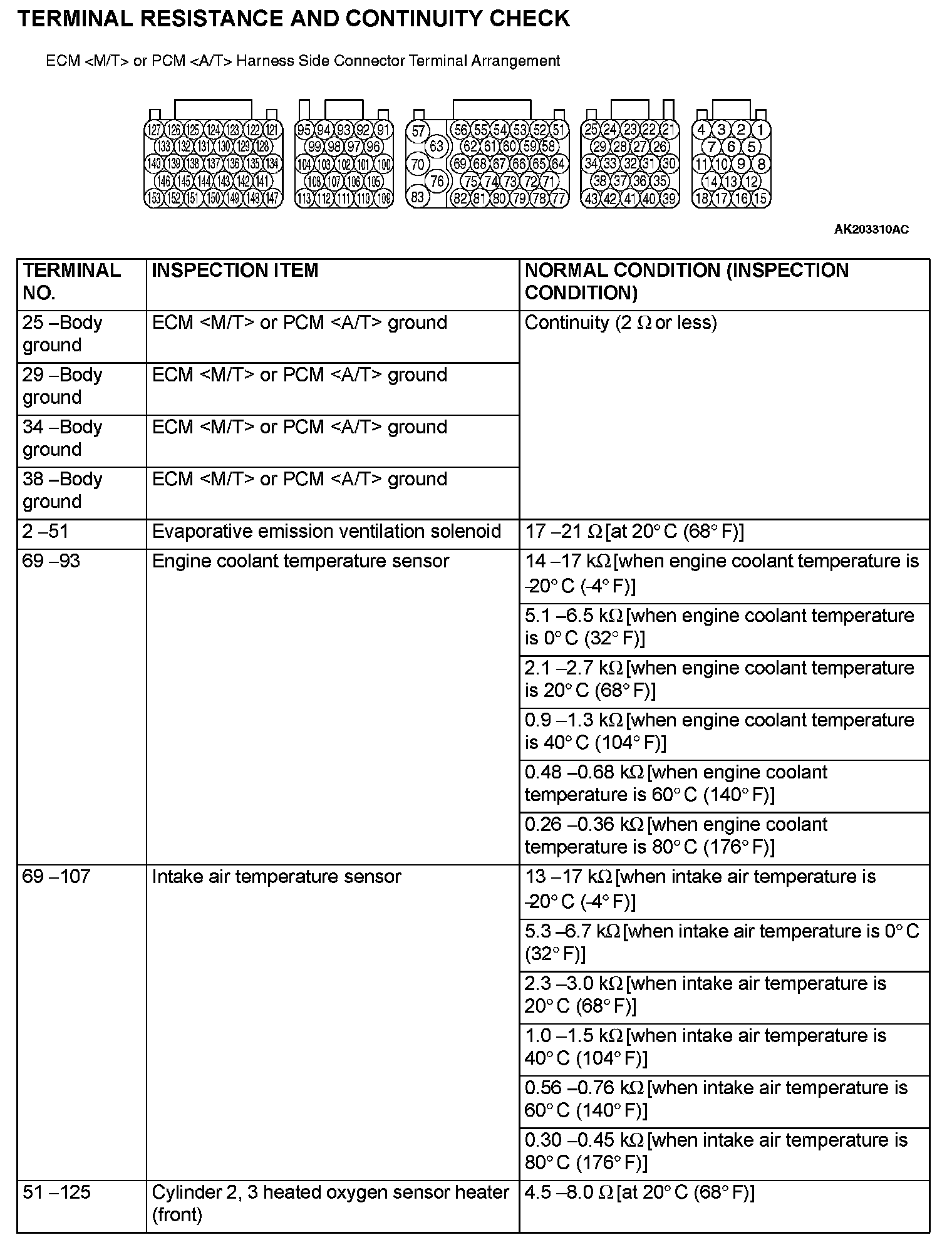

Terminal Resistance And Continuity Check (Part 1):

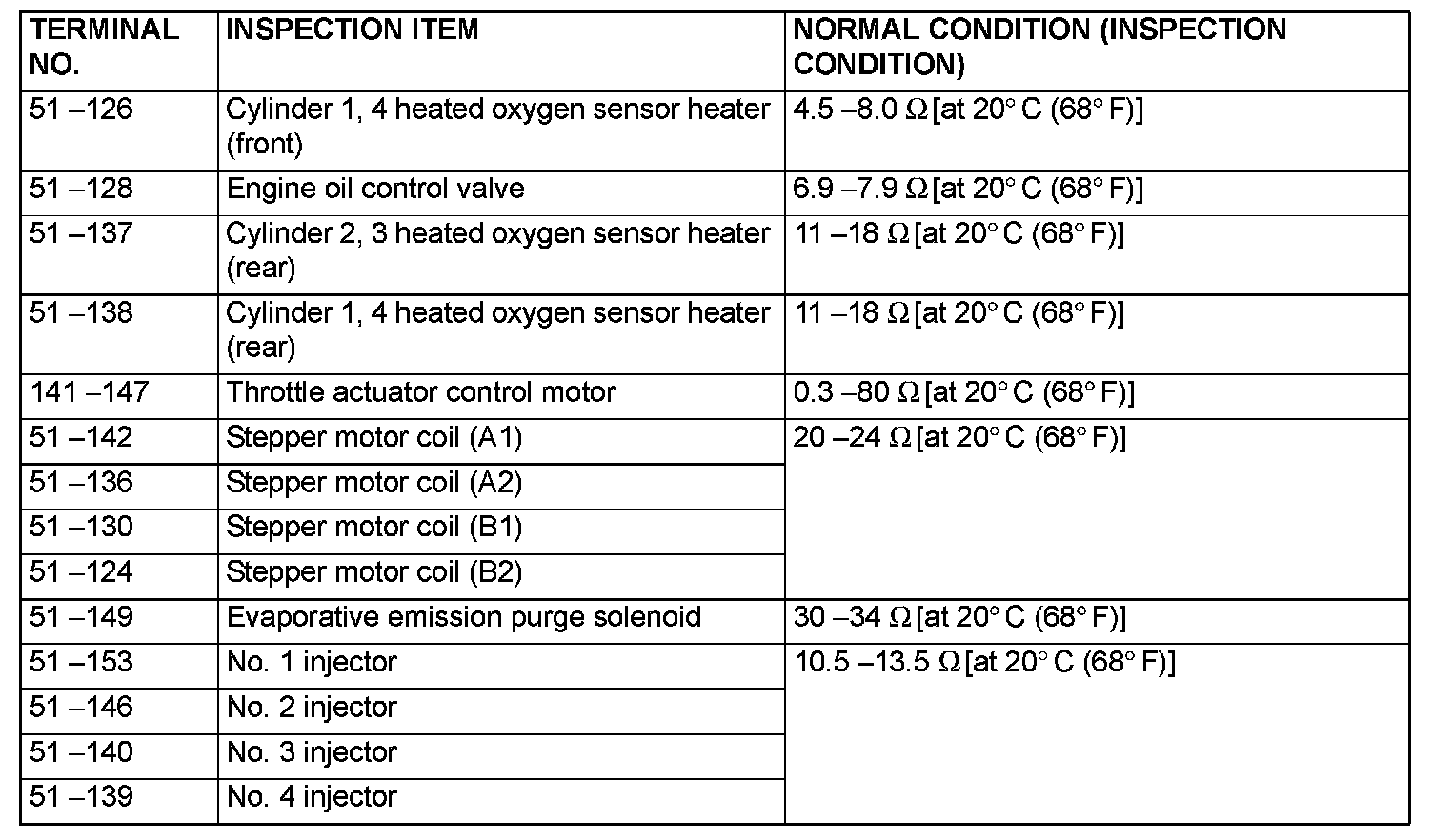

Terminal Resistance And Continuity Check (Part 2):
