Encrypted Code Registration Using Ignition Key [Registration Using Scan Tool MB991958 (M.U.T.-III Sub Assembly)]

ENCRYPTED CODE REGISTRATION USING IGNITION KEY

When the ECM [M/T], PCM [A/T] or the ETACS-ECU is replaced, or the ignition key is lost or additional keys are requested, the ignition key must be used to register encrypted codes.

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A






CAUTION : To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

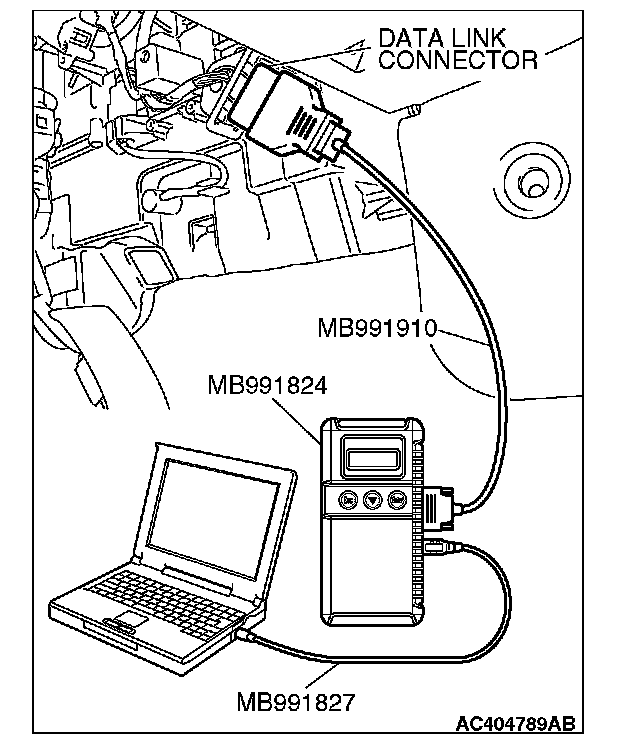

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.

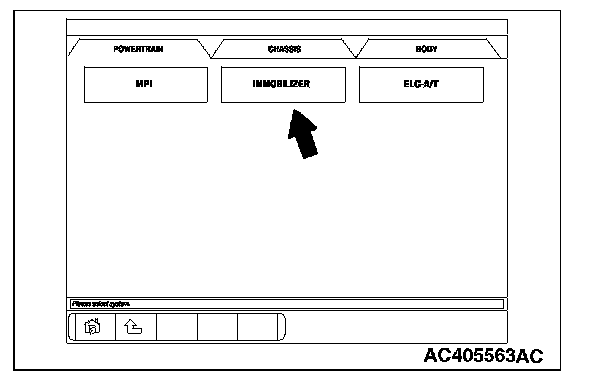

3. Choose "IMMOBILIZER" from the "POWER TRAIN" tab.

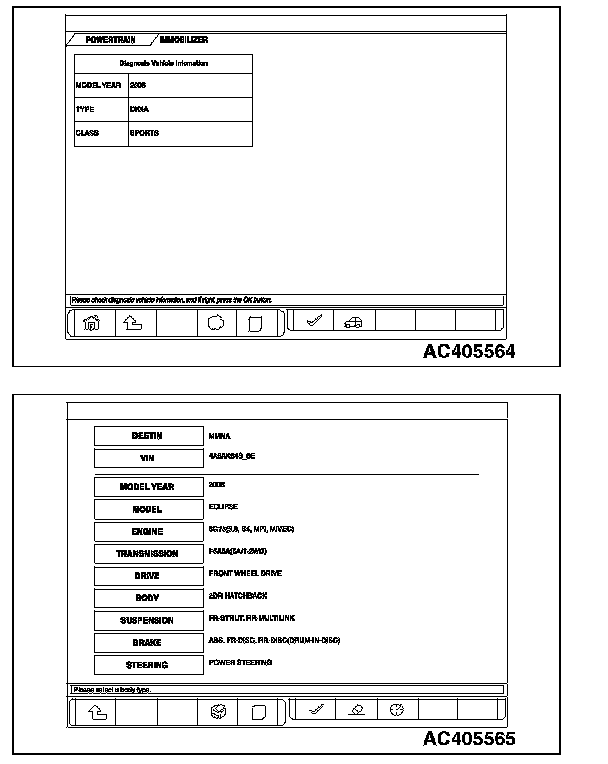

4. Enter the VIN code of the vehicle that is registered. Then, press "OK" button.

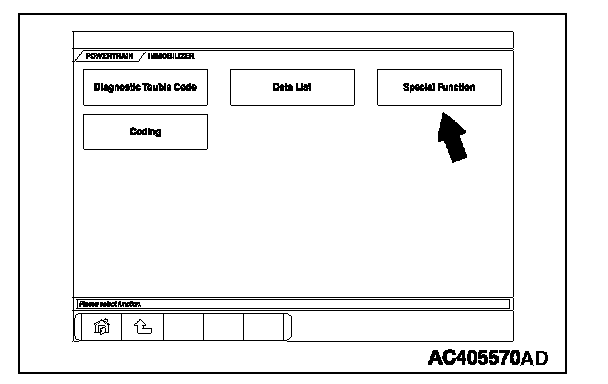

5. Select "Special Function."

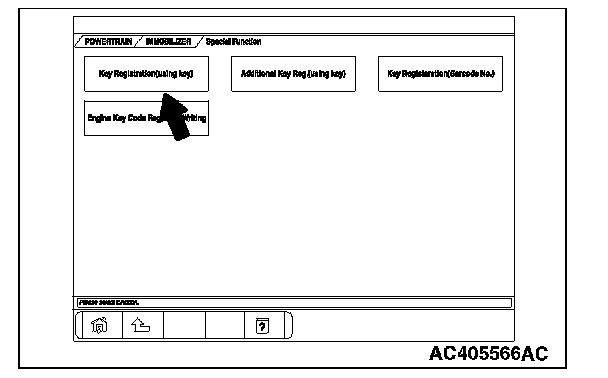

6. Select "Key Registration (using key)."

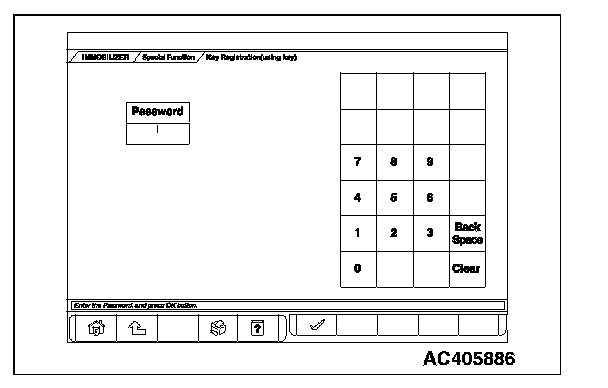

7. Enter the password of the vehicle, and press the OK button.

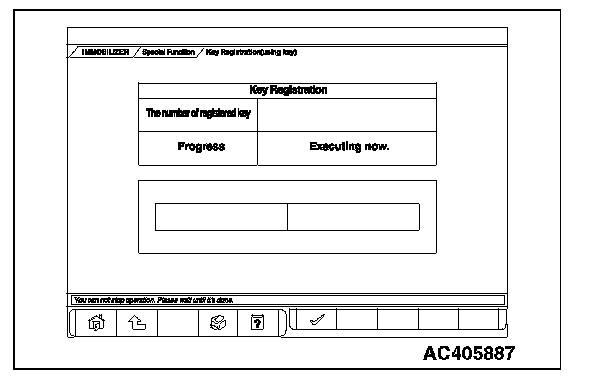

8. Registration of the ignition key will be started.

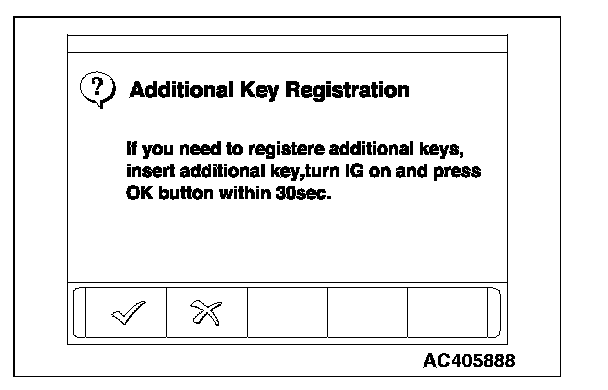

9. When the ignition key registration is finished, the additional key registration menu is displayed. To register the additional key, insert the key and turn the ignition switch to the "ON" position. Then, press the OK button. Press the CANCEL button to terminate the ignition key registration.

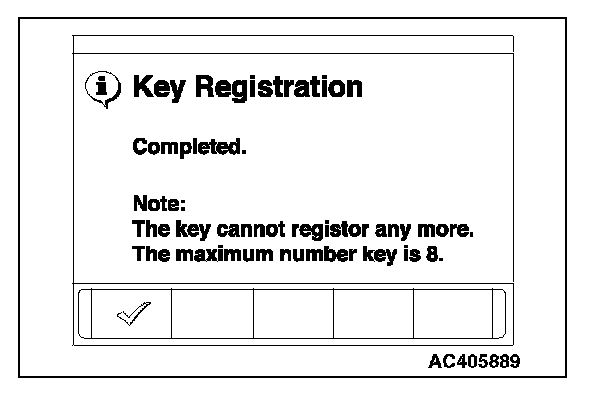

10. A maximum of eight ignition keys can be registered. When the registration of the eighth ignition key is finished, key registration completion menu is displayed. Press the OK button and finish the ignition key registration.
