2006 Mitsubishi MonteroFACTORY OEM SERVICE PROCEDURE
Removal And Installation: Notes

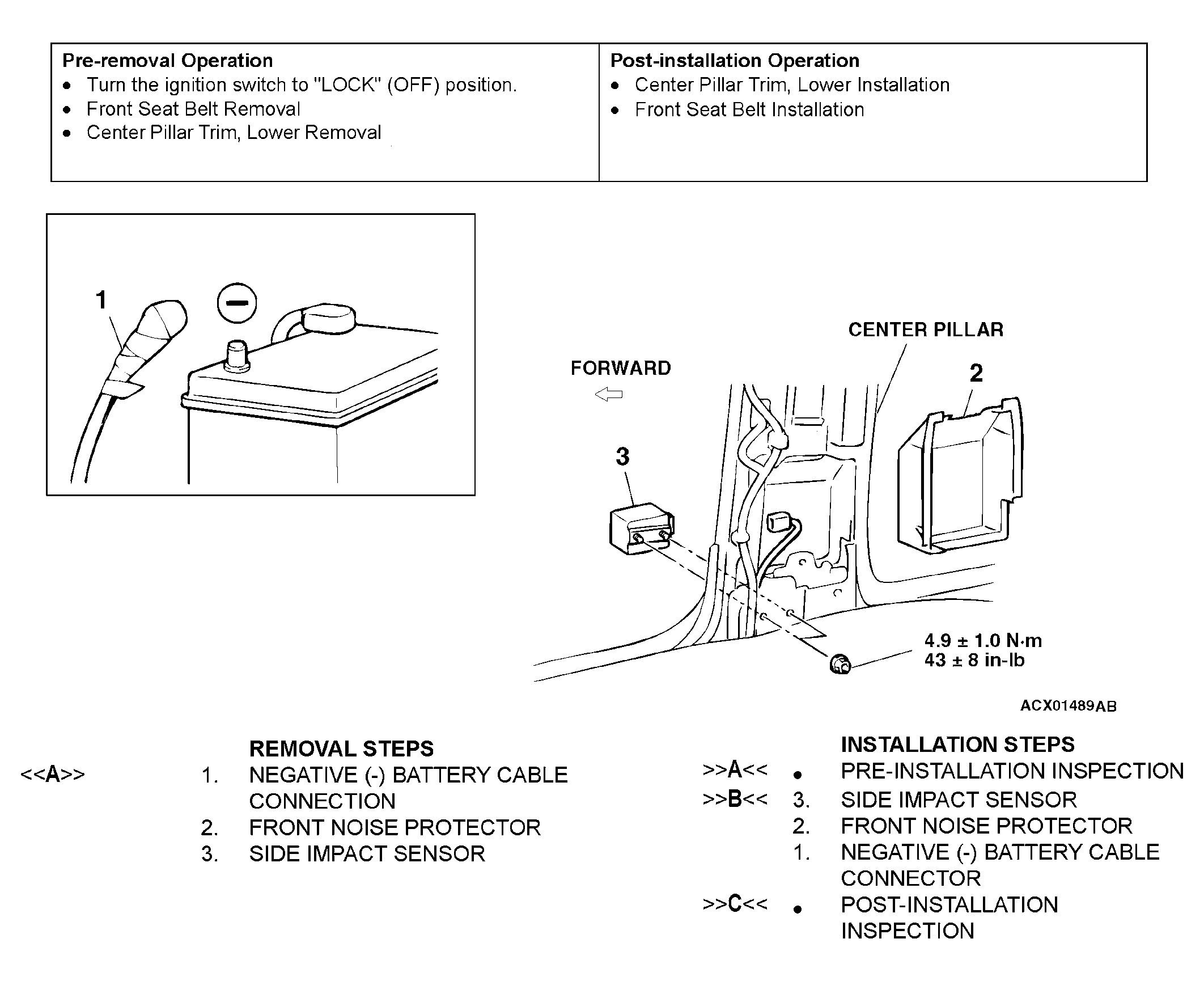

A side impact sensor is installed behind the center pillar trim on both driver and passenger sides of the vehicle.
WARNING:
- Never attempt to disassemble or repair the side impact sensor. If faulty, replace it.
- Do not drop or subject the side impact sensor to impact or vibration. Replace the side impact sensor, if dents, cracking, deformation, or rust are present.
- Replace the side impact sensor after the air bag has deployed.
