2006 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE

Commutator Check

WARNING: This page is about a different variant/trim than selected.

Place the armature on a pair of V-blocks, and check the deflection by using a dial gauge.
Standard value: 0.05 mm (0.002 inch)

Limit: 0.1 mm (0.004 inch)

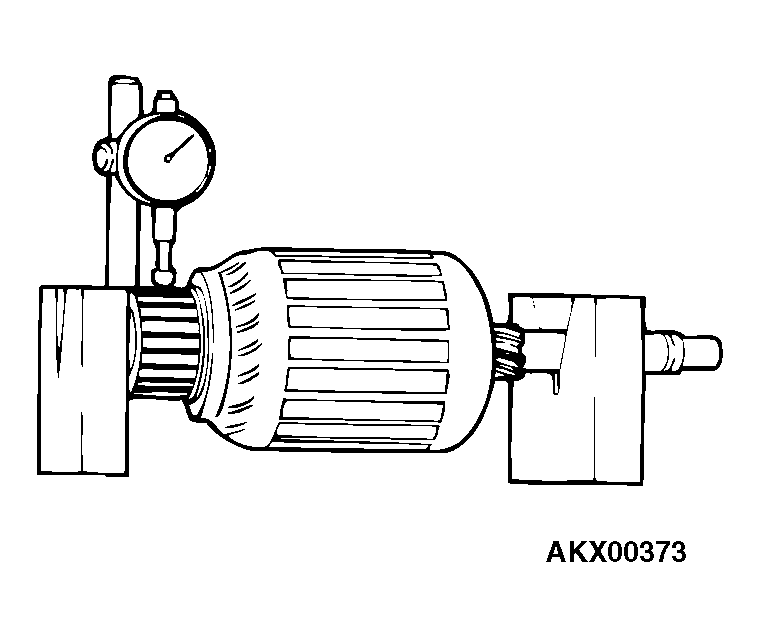

Fig 1: Placing Armature On Pair V-Blocks
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the outer diameter of the commutator.
Standard value: 29.4 mm (1.16 inch)

Minimum limit: 28.8 mm (1.13 inch)

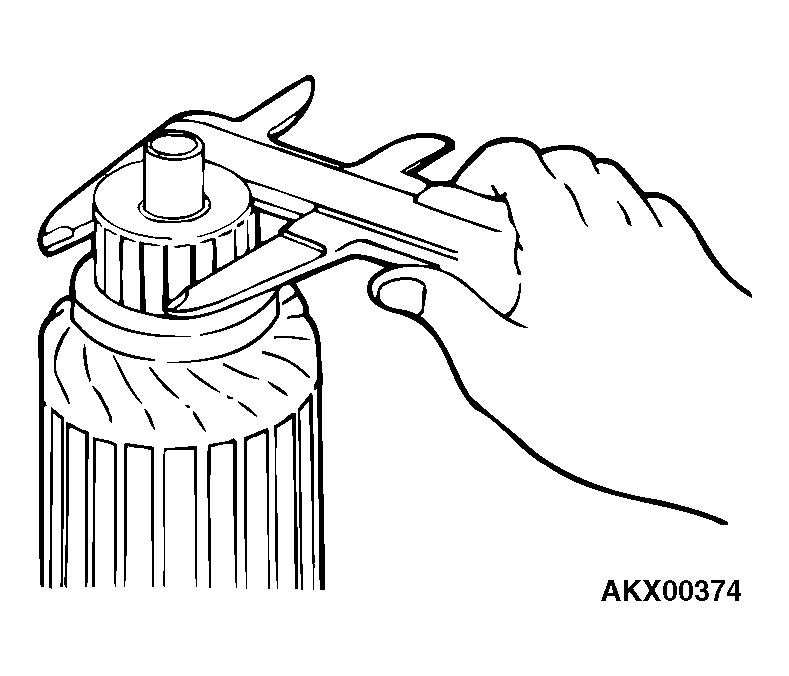

Fig 2: Checking Outer Diameter Of Commutator
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the depth of the undercut between segments.
Standard value: 0.5 mm (0.02 inch)

Minimum limit: 0.2 mm (0.008 inch)

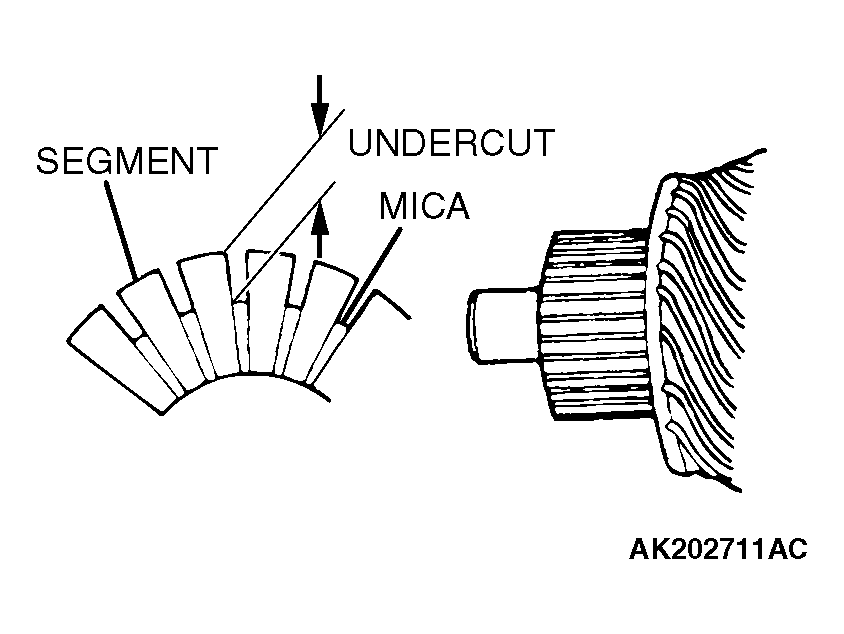

Fig 3: Checking Depth Undercut Between Segments
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
