Vehicle Information Code Plate: Notes

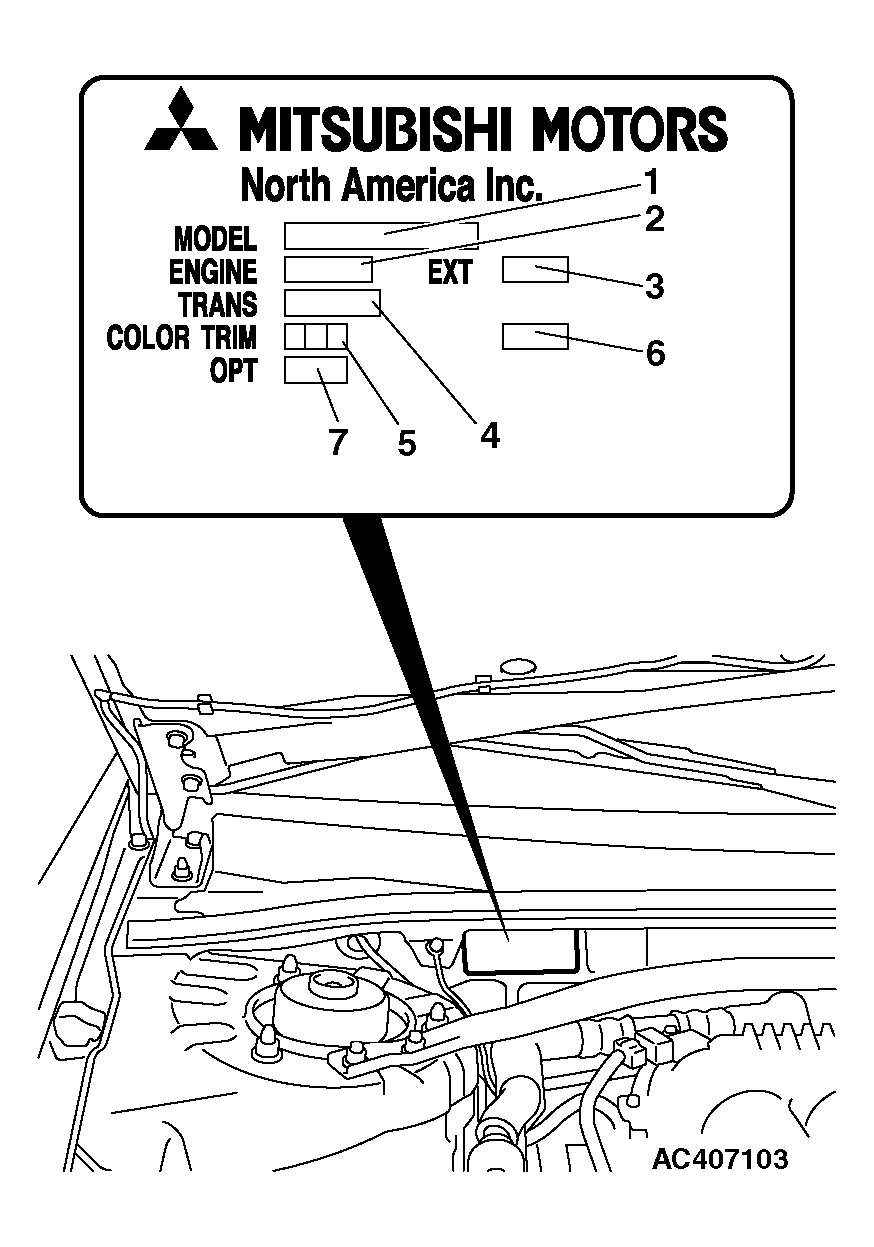

The vehicle information code plate is riveted onto the cowl top outer panel in the engine compartment.
The plate shows model code, engine model, transaxle model and body color code.
| NO. | ITEM | CONTENT | |
|---|---|---|---|
| 1 | MODEL | DK4AMJXYL4M | DK4AM: Vehicle model |
| JXYL4M: Model series | |||
| 2 | ENGINE | 4G69 | Engine model |
| 6G75 | |||
| 3 | EXT | A33B | Exterior code |
| 4 | TRANS | F5M42 | Transaxle model |
| F4A4B | |||
| F5A5A | |||
| F6MBA | |||
| 5 | COLOR | A33 | Body color code |
| 6 | TRIM | 25H | Interior code |
| 7 | OPT | Z09 | Equipment code |
For monotone color vehicles, the body color code shall be indicated.
