2006 Mitsubishi Eclipse GS, AutomaticFACTORY OEM SERVICE PROCEDURE
General Specifications
< 2.4L ENGINE >
GENERAL SPECIFICATIONS - 2.4L ENGINE
| ITEM | DK2AMNHYL4M/9M/5M | DK2AMRHYL4M/9M/5M | ||
|---|---|---|---|---|

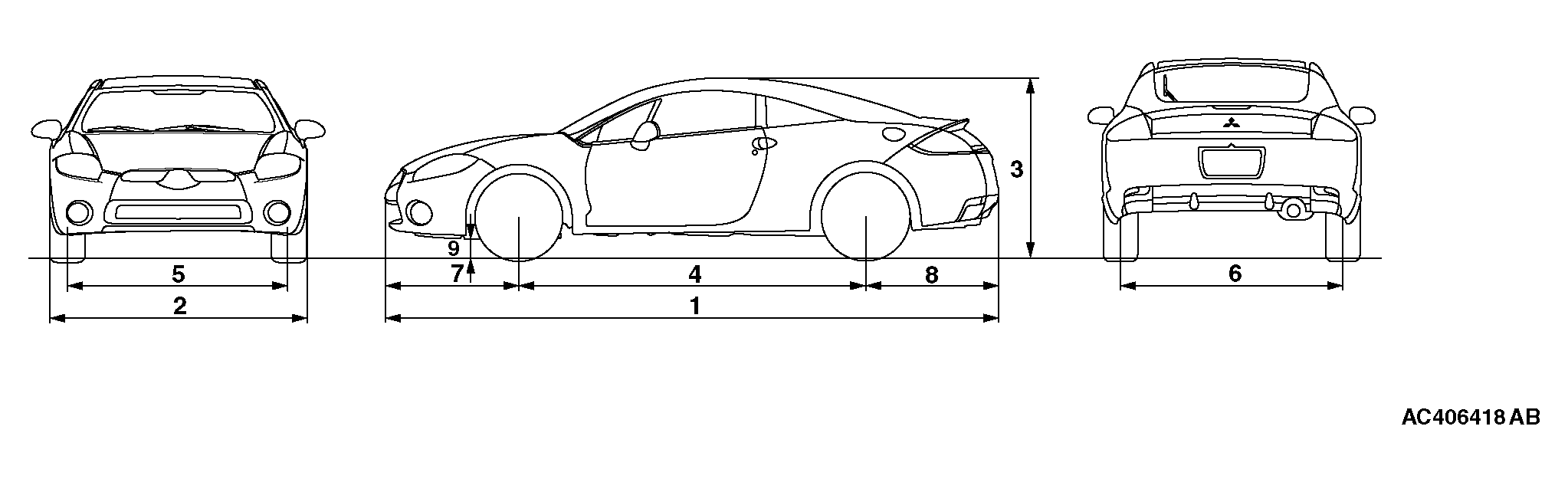

| Vehicle dimension mm (in) | Overall length | 1 | 4,565 (179.7) | 4,565 (179.7) |
| Overall width | 2 | 1,835 (72.2) | 1,835 (72.2) | |
| Overall height (unladen) | 3 | 1,358 (53.5) | 1,358 (53.5) | |
| Wheelbase | 4 | 2,575 (101.4) | 2,575 (101.4) | |
| Tread-front | 5 | 1,570 (61.8) | 1,570 (61.8) | |
| Tread-rear | 6 | 1,570 (61.8) | 1,570 (61.8) | |
| Overhang-front | 7 | 1,007 (39.6) | 1,007 (39.6) | |
| Overhang-rear | 8 | 983 (38.7) | 983 (38.7) | |
| Ground clearance | 9 | 148 (5.8) | 148 (5.8) | |
| Vehicle weight kg (lb) | Curb weight | 1,485 (3,274) | 1,500 (3,307) | |
| Gross vehicle weight rating | 1,845 (4,068) | 1,845 (4,068) | ||
| Gross axle weight rating-front | 1,020 (2,249) | 1,020 (2,249) | ||
| Gross axle weight rating-rear | 835 (1,841) | 835 (1,841) | ||
| Seating capacity | 4 | |||
| Engine | Model No. | 4G69 | ||
| Piston displacement | 2.4L | |||
| Transaxle | Model No. | F5M42 | F4A4B | |
| Type | 5-speed manual | sports mode 4-speed automatic | ||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||
< 3.8L ENGINE >
GENERAL SPECIFICATIONS - 3.8L ENGINE
| ITEM | DK4AMJXYL4M/5M | DK4AMYXYL4M/5M | ||||
|---|---|---|---|---|---|---|
| Vehicle dimension mm (in) | Overall length | 1 | 4,565 (179.7) | 4,565 (179.7) | ||
| Overall width | 2 | 1,835 (72.2) | 1,835 (72.2) | |||
| Overall height (unladen) | 3 | 1,358 (53.5) 1,366 (53.8)(1) | 1,358 (53.5) 1,366 (53.8)(1) | |||
| Wheelbase | 4 | 2,575 (101.4) | 2,575 (101.4) | |||
| Tread-front | 5 | 1,570 (61.8) | 1,570 (61.8) | |||
| Tread-rear | 6 | 1,570 (61.8) | 1,570 (61.8) | |||
| Overhang-front | 7 | 1,007 (39.6) | 1,007 (39.6) | |||
| Overhang-rear | 8 | 983 (38.7) | 983 (38.7) | |||
| Ground clearance | 9 | 148 (5.8) 156 (6.1)(1) | 148 (5.8) 156 (6.1)(1) | |||
| Vehicle weight kg (lb) | Curb weight | 1,575 (3,472) | 1,605 (3,538) | |||
| Gross vehicle weight rating | 1,945 (4,288) | 1,945 (4,288) | ||||
| Gross axle weight rating-front | 1,110 (2,447) | 1,110 (2,447) | ||||
| Gross axle weight rating-rear | 845 (1,863) | 845 (1,863) | ||||
| Seating capacity | 4 | |||||
| Engine | Model No. | 6G75 | ||||
| Piston displacement | 3.8L | |||||
| Transaxle | Model No. | F6MBA | F5A5A | |||
| Type | 6-speed manual | sports mode 5-speed automatic | ||||
| Fuel system | Fuel supply system | Electronic controlled multiport fuel injection | ||||
|
||||||
