2005 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Accelerator Cable Check And Adjustment
- Turn off air conditioning and all lights. Inspect and adjust at no load.
- Start engine and allow to idle unit it reaches normal operating temperature.
- Confirm the idle speed is at standard value.
- Standard value: 850+/-50 r/min
- Stop the engine [ignition switch in the "LOCK" (OFF) position].
- Confirm there are no sharp bends in the accelerator cable.
- Check the inner cable for correct slack.
- Standard value: 1 - 2 mm (0.04 - 0.08 inch)
- If there is too much slack or no slack, adjust the cable as follows:

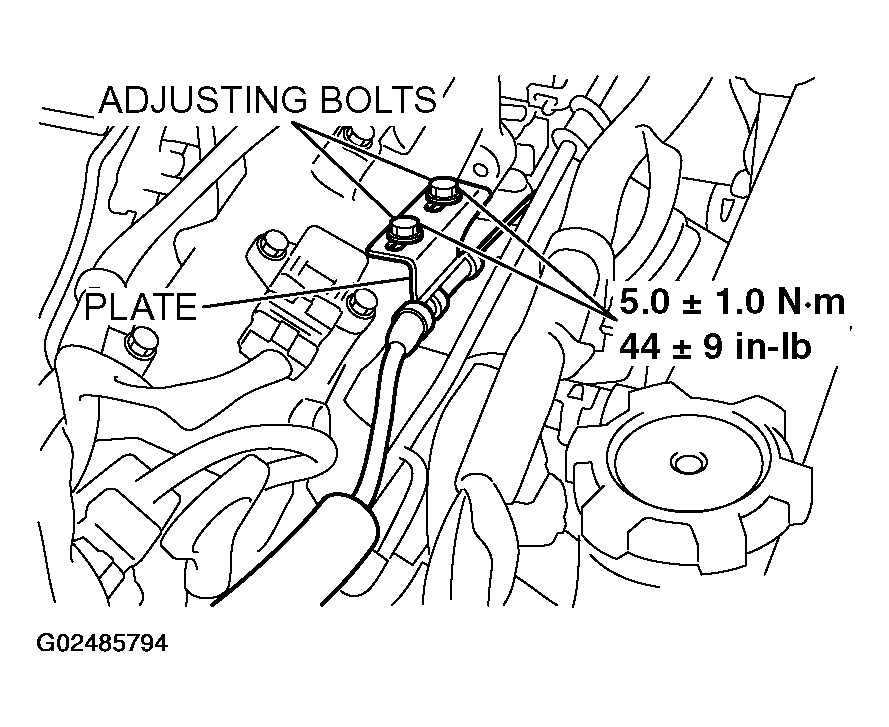

- Loosen the adjusting bolts to release the cable.
- Move the plate until the inner cable play is at the standard value, and then tighten the adjusting bolts to specified torque.
