2005 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE

Inspection (Disassembly And Assembly): Stator

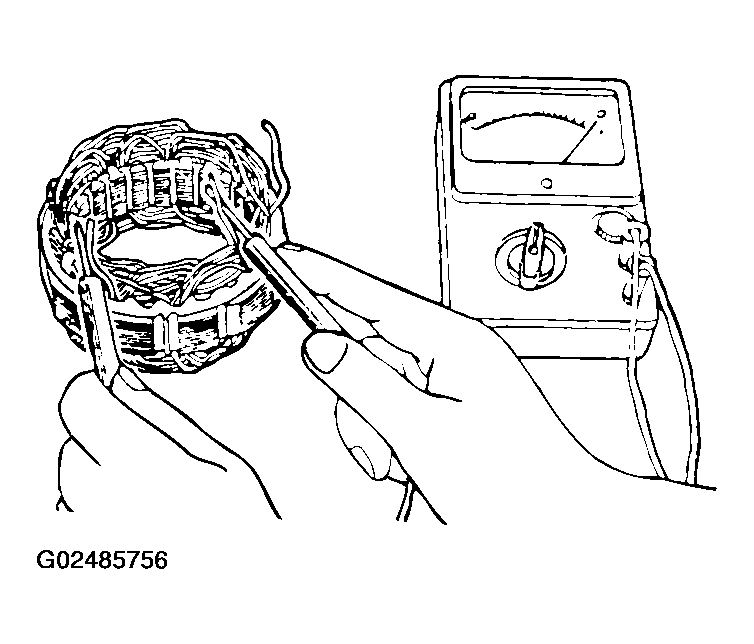

Check the continuity between coil leads.
If there is no continuity, replace the stator.

Fig 1: Checking Continuity Between Coil Leads
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

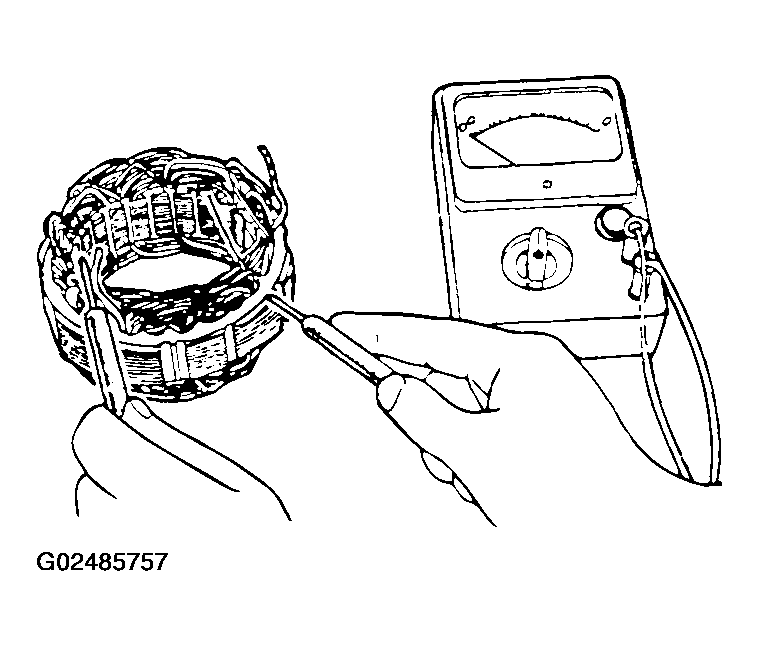

Check the continuity between coil and core.
If there is no continuity, replace the stator.

Fig 2: Checking Continuity Between Coil And Core
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
