2003 Mitsubishi Montero XLSFACTORY OEM SERVICE PROCEDURE

Spark Plug Test

Remove the spark plug and connect to the spark plug cable.

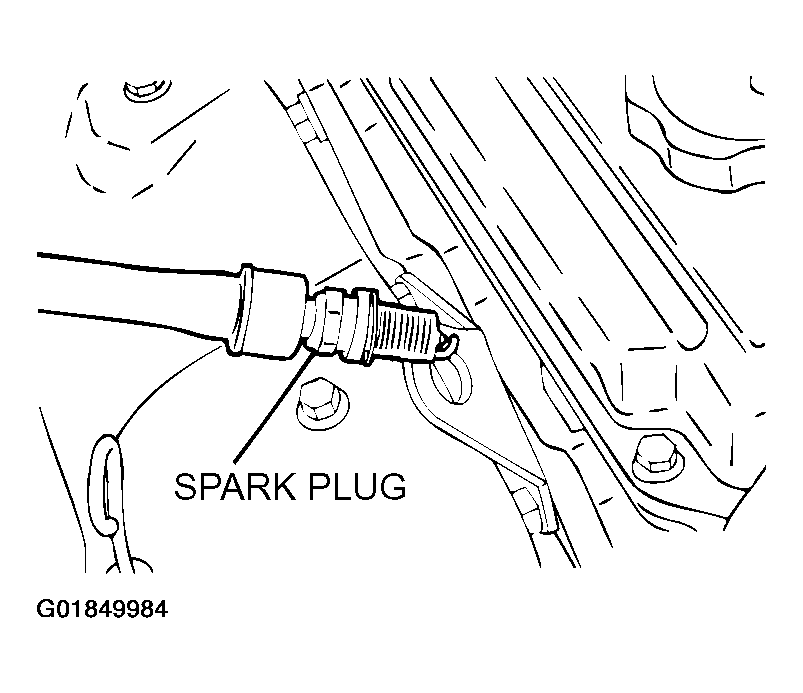

Fig 1: Removing Spark Plug
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Ground the spark plug outer electrode (body), and crank the engine.
Check that there is an electrical discharge between the electrodes at this time.

Fig 2: Checking For Electrical Discharge
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
