2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Fuel Pump Relay: Montero
- Turn the ignition off.

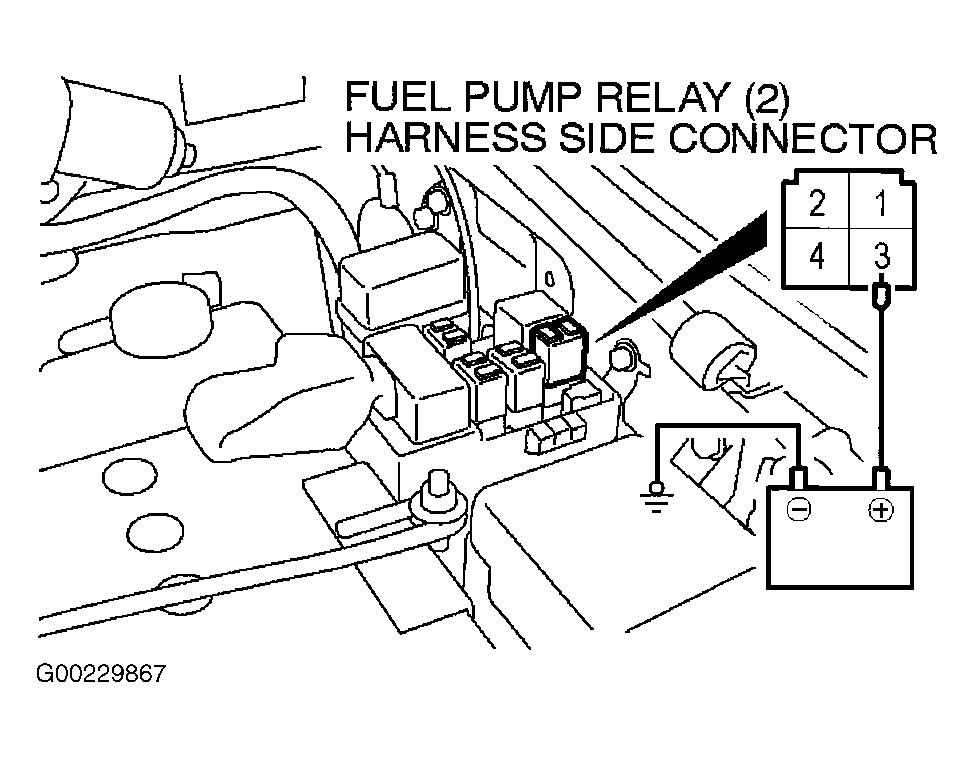

- Remove the fuel pump relay (2). Connect terminal number 3 of the harness-side connector to the battery. See Fig 1. Check if the fuel pump operation sound can be heard at this time.NOTE: As the fuel pump is an in-tank type, the fuel pump sound is hard to hear. Remove the fuel tank filler tube cap and check from the tank inlet.
- Check the fuel pressure by pinching the fuel hose with your fingertips.
- Install the fuel pump relay (2).
