2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Lancer & Lancer Evolution VIII
- Turn the ignition off.
- Remove the rear seat assembly.
- Remove the protector.

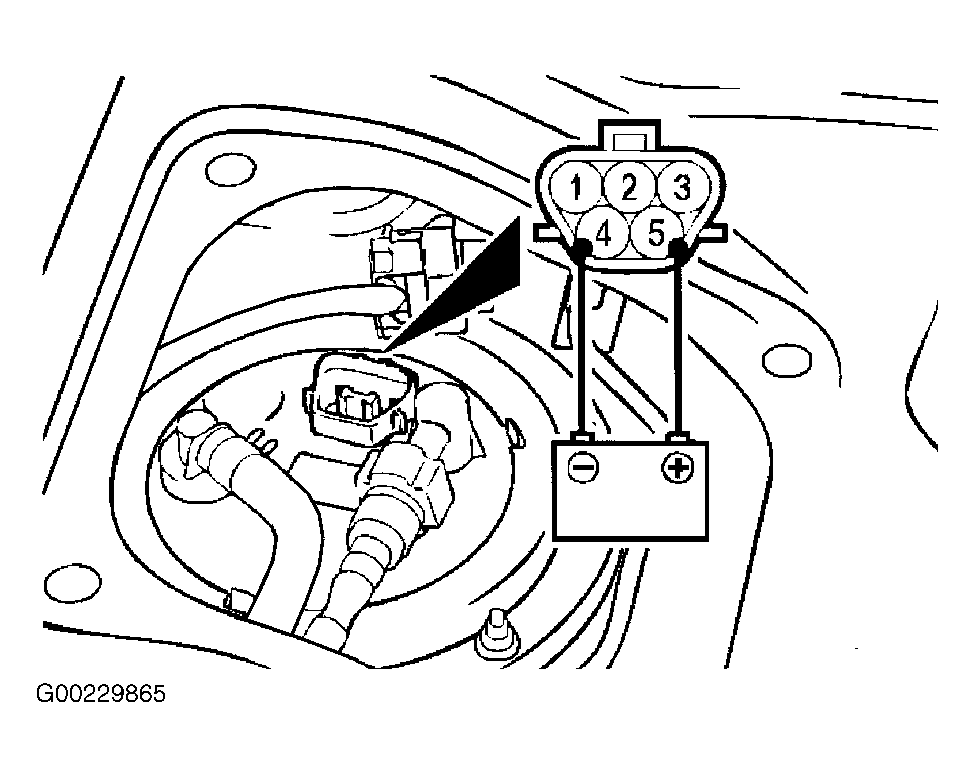

- Disconnect the fuel pump module connector. See Fig 1 or Fig 2 .
- When the fuel pump drive connector is attached directly to the battery, check if the sound of the fuel pump operation can be heard.NOTE: As the fuel pump is an in-tank type, the fuel pump sound is hard to hear. Remove the fuel tank filler tube cap and check from the tank inlet.
- Check for fuel pressure by pinching the fuel hose with fingertips.
- Connect the fuel pump module connector.
- Install the protector and rear seat assembly.
