2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Spark Plug Check And Cleaning
CAUTION:

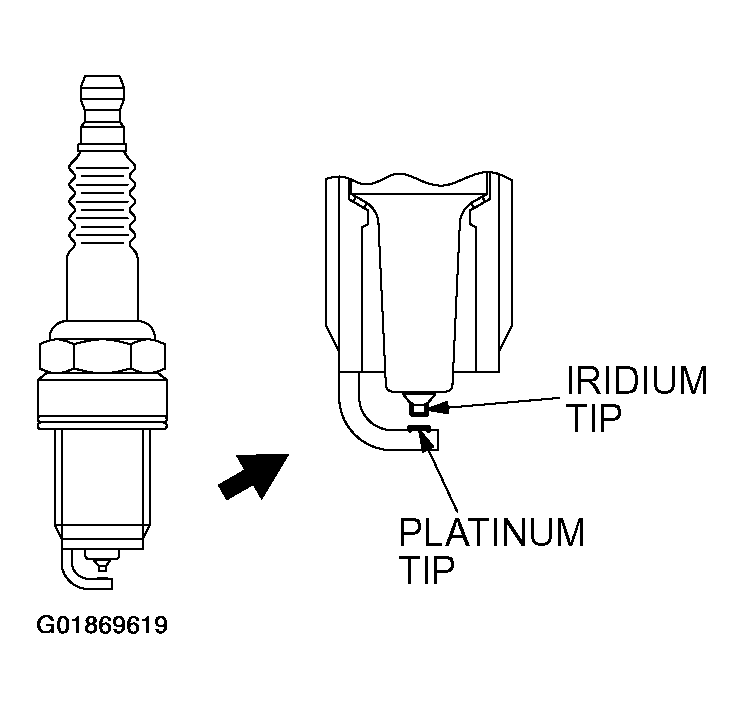

- Do not attempt to adjust the gap of the iridium plug.
- Cleaning of the iridium plug may result in damage to the iridium and platinum tips. Therefore, if carbon deposits must be removed, use a plug cleaner and complete cleaning within 20 seconds to protect the electrode. Do not use a wire brush.
Check the plug gap and replace if the limit is exceeded.
- Standard value: 0.7 - 0.8 mm (0.028 - 0.031 inch)
- Limit: 1.0 mm (0.039 inch)
