2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Magnetic Switch Pull-In Test
CAUTION:
To prevent coil from burning, DO NOT apply voltage to starter assembly for more than 10 seconds.

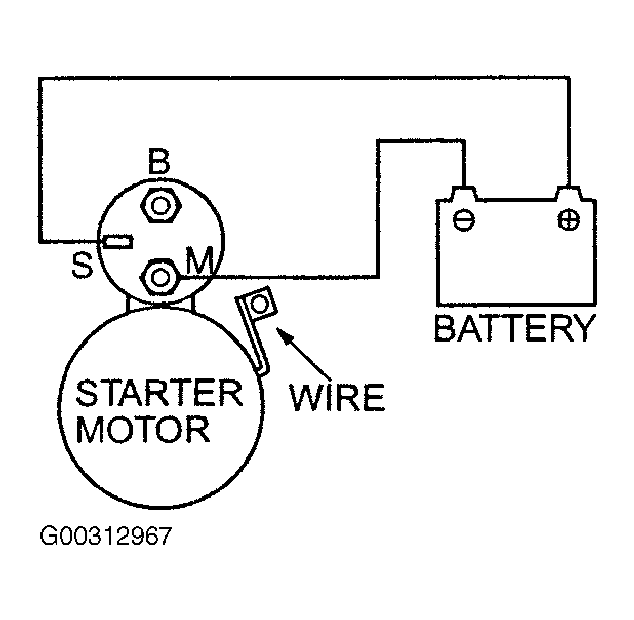

- Disconnect field coil wire from "M" terminal of the magnetic switch. See Fig 1 .
- Connect a 12-volt battery between "S" terminal and "M" terminal.
- If the pinion moves out, the pull-in coil is good. If it doesn't, replace the magnetic switch.
