2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Assembly Service Points

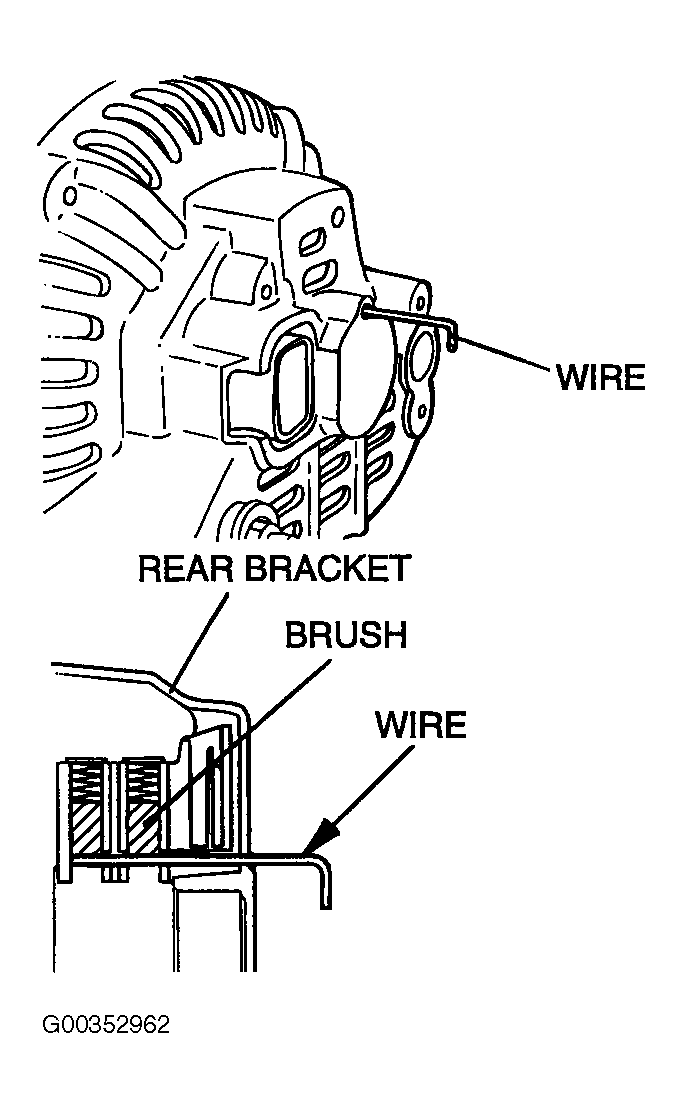

- A) Regulator Assembly Installation - After installing the regulator assembly, insert a wire through the hold provided on the rear bracket while pressing down on the brush, and secure the brush. See Fig 1 .
- B) Rotor Assembly Installation - After installing the rotor, remove the wire used to secure the brush.
NOTE:
Holding the brush with the wire assists installation of the rotor.
