2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE
Component Testing: Rotor

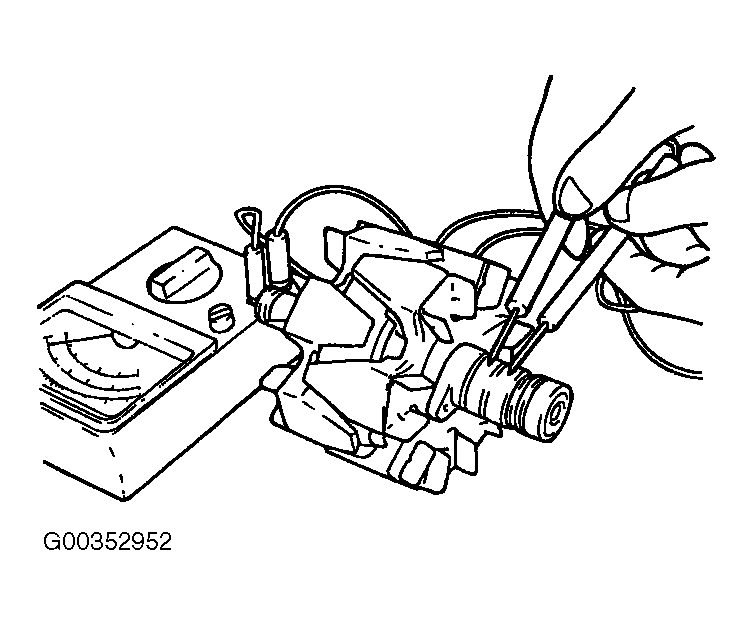

- Measure the resistance between the 2 slip rings of the rotor coil to check the continuity between them. Replace the rotor if the resistance is not within the standard value range of 3-5ohm. See Fig 1 .
- Check the continuity between the slip ring and the core. If there is continuity, replace the rotor. See Fig 2 .
