2003 Mitsubishi Lancer EvolutionFACTORY OEM SERVICE PROCEDURE

Component Testing: Brush

  1. Measure the length of the protrusion of the brush. Replace the brush if the protrusion length is shorter than the limit of 2 mm. See Fig 1 .
  2. Unsolder the lead of the brush. The brush will come out, ready for removal.
  3. Install a new brush by pushing it into the holder. See Fig 2 .

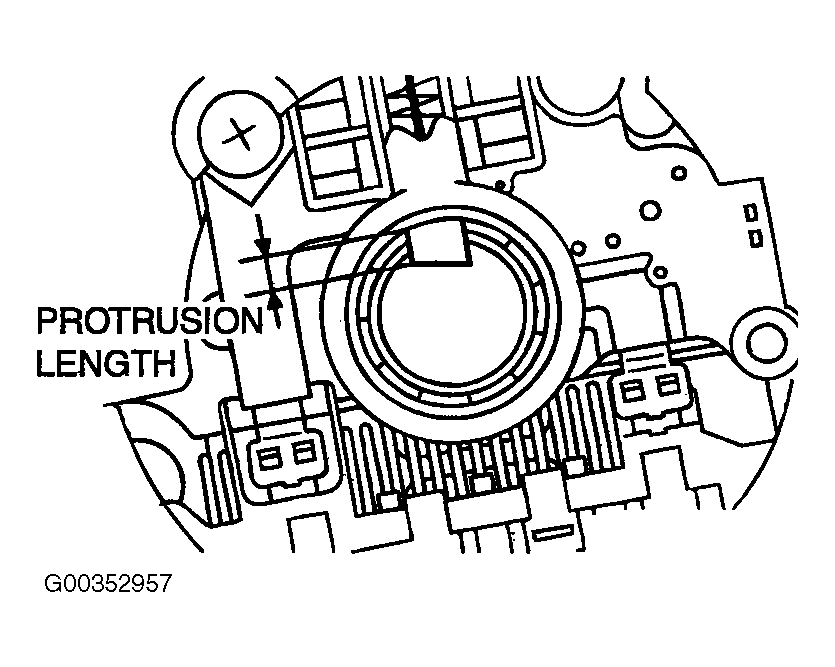

Fig 1: Identifying Protrusion Length
G00352957Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
