2003 Mitsubishi Eclipse RS, StandardFACTORY OEM SERVICE PROCEDURE
Computerized Engine Controls: ECM/Pcm: Notes
NOTE:
For Engine Control Module (ECM) or Powertrain Control Module (PCM) location, see ECM/PCM table. To identify ECM/PCM power and ground terminals, see appropriate pin voltage chart in PIN VOLTAGE CHARTS article. To identify ECM/PCM power and ground circuits, see ENGINE PERFORMANCE in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
ECM/PCM LOCATION
| Application | Location |
|---|---|

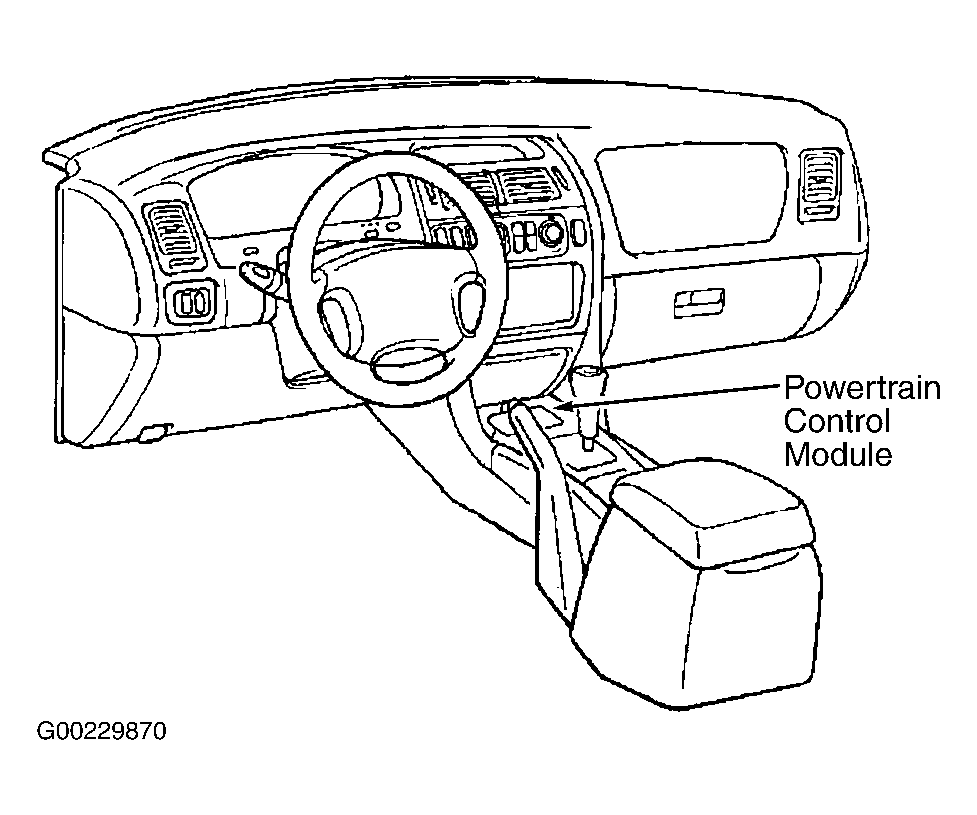

| Diamante (Fig 1) | Behind Center Console |
| Eclipse & Eclipse Spyder (Fig 2) | Behind Glove Box |
| Galant (Fig 3) | Behind Glove Box |
| Lancer & Lancer Evolution VIII (Fig 4 & Fig 5 ) | Behind Glove Box |
| Montero & Montero Sport (Fig 6 & Fig 7 ) | Behind Right Side Kick Panel |
| Outlander (Fig 8) | Behind Glove Box |
