Other Monitor
This monitor applies to DTCs not covered by the rest of the monitors. Following conditions must be met during the test:
- Engine coolant temperature must be 176°F (80°C) or more.
- Atmospheric temperature is 41°F (5°C) or more.
- Selector lever is in "D" range (A/T).

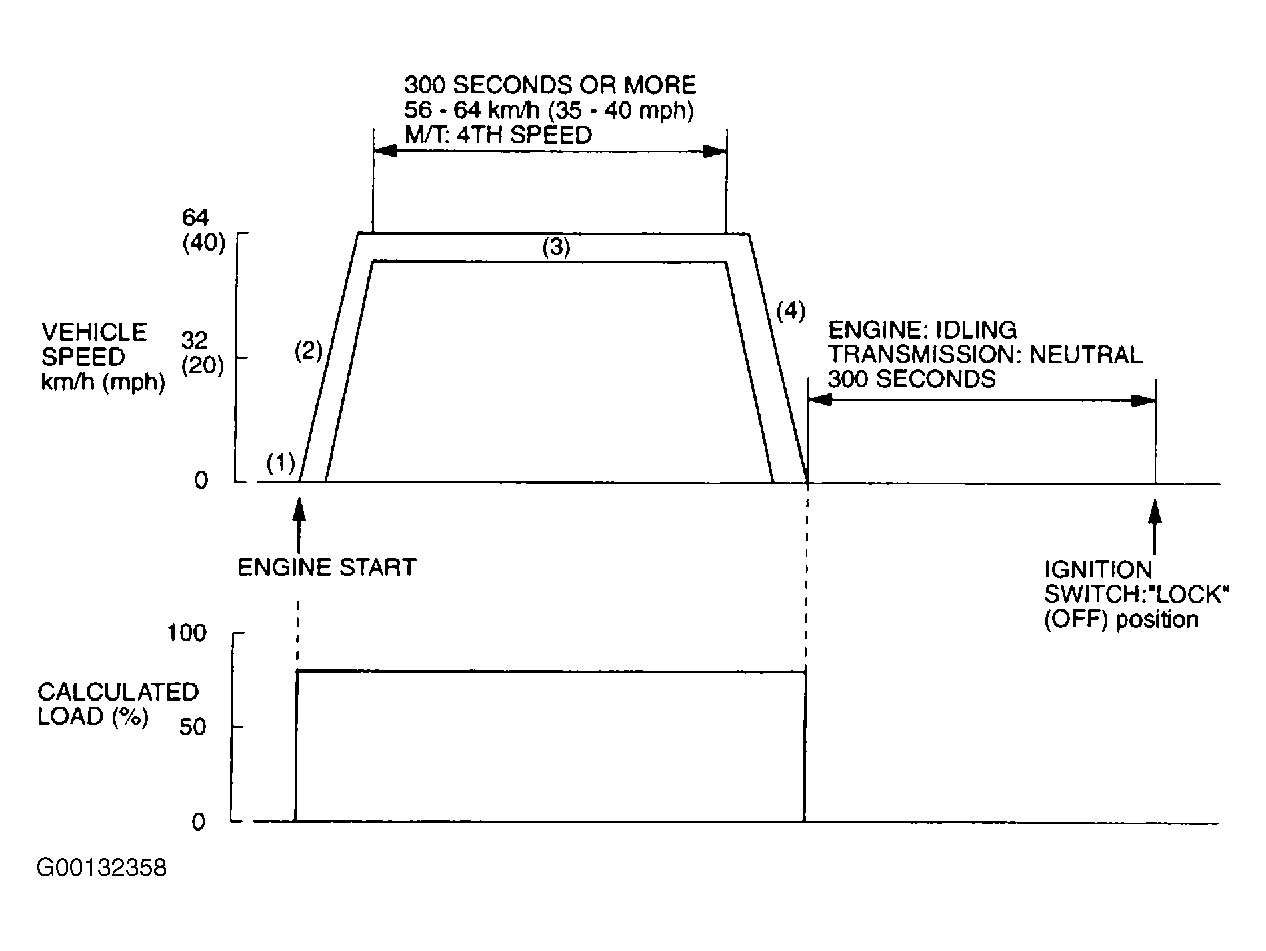

Monitor takes about 10 minutes to complete. To run monitor, use illustration. See Fig 1 . Perform steps as follows:
- Remove all test equipment from vehicle and install all components and connectors that were removed or disconnected during testing.
- After engine is completely warmed up, turn ignition off.
- Start engine and quickly accelerate vehicle to 35-40 MPH and travel for 300 seconds or more. Use 4th gear on M/T.
- Return vehicle to shop and let idle. While engine is idling, A/C switch must be in OFF position, lights and accessories must be off, steering wheel must be in straight-ahead position, and transmission in Neutral. After idling for 5 minutes, turn ignition off.
- Recheck for DTC(s). If any DTC(s) is set, diagnose affected DTC(s). See DIAGNOSTIC TROUBLE CODE DEFINITIONS .
