Catalytic Converter Monitor
This monitor applies to DTC P0421. Following conditions must be met during the test:
- Atmospheric temperature is 14°F (-10°C) or more.
- A/C switch is off.
- Selector lever is in "D" range (A/T).

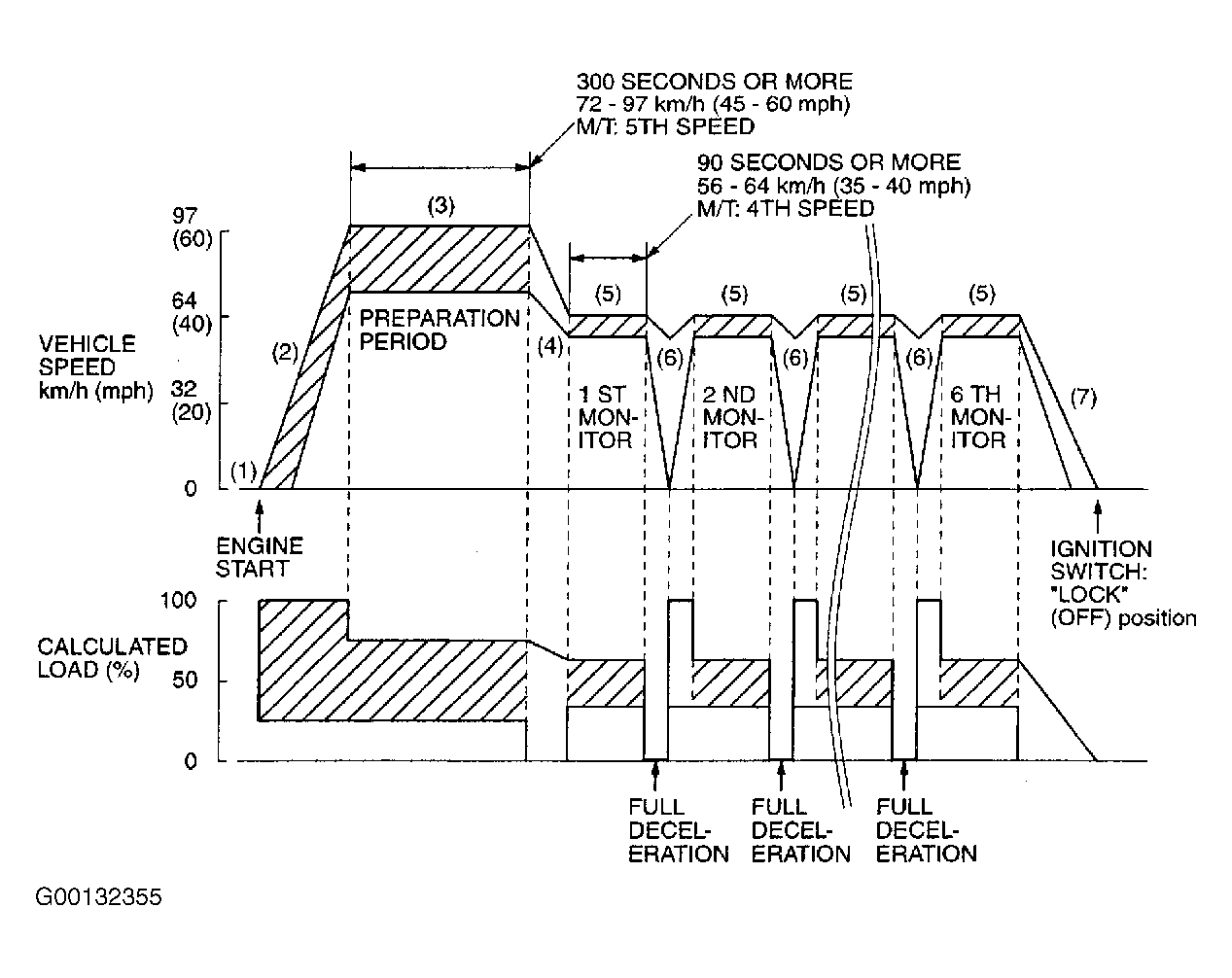

Monitor takes about 20 minutes to complete. To run monitor, use illustration. See Fig 1 . Perform steps as follows:
- Remove all test equipment from vehicle and install all components and connectors that were removed or disconnected during testing.
- Start engine.
- Accelerate vehicle to 45 MPH.
- Travel 300 seconds or more while keeping speed at 45-60 MPH. Use 5th gear on M/T.
- Decelerate to 35-40 MPH.
- While keeping accelerator pedal opening degree constant (use 4th gear on M/T), keep speed at 35-40 MPH for 90 seconds or more.
- Fully close throttle and decelerate for 10 seconds. Then, quickly accelerate until speed is 35-40 MPH. Then repeat steps 5 and 6 five more times.
- Return vehicle to shop. Turn engine off. Recheck for DTC(s). If any DTC(s) is set, diagnose affected DTC(s). See DIAGNOSTIC TROUBLE CODE DEFINITIONS .
