2002 Mitsubishi Lancer LSFACTORY OEM SERVICE PROCEDURE
Power Transistor
CAUTION:
Power transistor test must be performed in less than 10 seconds to prevent coil from burning and power transistor from breaking.

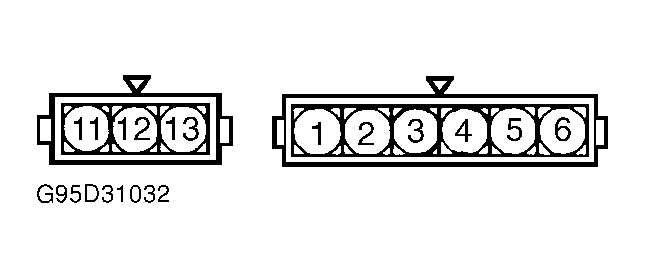

- Disconnect power transistor 6-pin and 3-pin connectors. To test section of power transistor that controls cylinders No. 1 and 4 of ignition coil, connect negative end of 1.5-volt battery to terminal No. 4 of power transistor and positive end to terminal No. 3. See Fig 1.
- Using an analog ohmmeter, check for continuity between power transistor terminals No. 4 and 13 (connect negative ohmmeter probe to terminal No. 13). Continuity should exist. With positive end of 1.5-volt battery disconnected, there should be no continuity. Replace power transistor if it fails test.
- To test section of power transistor that controls cylinders No. 2 and 5 of ignition coil, connect negative end of 1.5-volt battery to terminal No. 4 of power transistor and positive end to terminal No. 2.
- Using an analog ohmmeter, check for continuity between power transistor terminals No. 4 and 12 (connect negative ohmmeter probe to terminal No. 12). Continuity should exist. With positive end of 1.5-volt battery disconnected, there should be no continuity. Replace power transistor if it fails test.
- To test section of power transistor that controls cylinders No. 3 and 6 of ignition coil, connect negative end of 1.5-volt battery to terminal No. 4 of power transistor and positive end to terminal No. 1.
- Using an analog ohmmeter, check for continuity between terminals No. 4 and 11 of power transistor (connect negative ohmmeter probe to terminal No. 11). Continuity should exist. With positive end of 1.5-volt battery disconnected, there should be no continuity. Replace power transistor if it fails test.
