2001 Mitsubishi Galant LSFACTORY OEM SERVICE PROCEDURE

Terminal Identification

NOTE: The following terminal illustrations are shown as viewed from component side of connector.
TERMINAL IDENTIFICATION DIRECTORY

Connector Illustration
Camshaft Position (CMP) Sensor Fig 1
Combination Meter Fig 2-Fig 3
Crankshaft Position (CKP) Sensor Fig 4
Distributor Assembly Fig 5
EGR Solenoid Fig 6
Engine Coolant Temperature (ECT) Sensor Fig 7
Fuel Injector Fig 8
Fuel Injector Intermediate Fig 9
Fuel Tank Differential Pressure (FTDP) Sensor Fig 10
Fuel Pump Relay Fig 20
Generator Field Fig 11
Heated Oxygen Sensor (HO2S) Fig 13-Fig 12
Idle Air Control (IAC) Motor Fig 14
Immobilizer ECU Fig 15
Intermediate Connector B-11 Fig 16
Intermediate Connector D-15 Fig 17
Knock Sensor (KS) Fig 18
Manifold Differential Pressure (MDP) Sensor Fig 19
MFI Relay Fig 20
OBD-II DLC Fig 21
Powertrain Control Module (PCM) Fig 22
Purge Solenoid Fig 23
Throttle Position (TP) Sensor Fig 24
Vehicle Speed Sensor (VSS) Fig 25
Ventilation Solenoid Fig 26
Volume Airflow (VAF) Sensor Fig 27

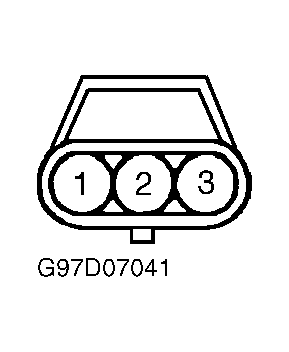

Fig 1: Identifying Camshaft Position (CMP) Sensor Connector Terminals (2.4L)
G97D07041Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
