1997 Mitsubishi Montero LSFACTORY OEM SERVICE PROCEDURE
Terminal Identification
NOTE:
The following terminals are shown as viewed from component side of connector.
TERMINAL IDENTIFICATION DIRECTORY
| Connector | See |
|---|---|

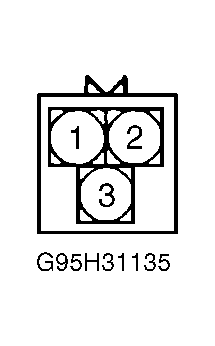

| CKP Sensor | Fig 1 |
| DLC | Fig 2 |
| ECT Sensor | Fig 3 |
| Fuel Injector | Fig 4 |
| Fuel Pump | Fig 5 |
| FTDP Sensor | Fig 6 |
| Generator Field | Fig 7 |
| HO2S | Fig 8 |
| IAC Motor | Fig 9 |
| Ignition Coil | Fig 10 |
| KS | Fig 11 |
| MDP Sensor | Fig 12 |
| MFI Relay | Fig 13 |
| PNP Switch | Fig 14 |
| PCM | Fig 15 |
| TCM | Fig 16 |
| TP Sensor | Fig 17 |
| VAF Sensor | Fig 18 |
