1990 Mitsubishi Montero Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Using Multi-Use Tester
- Turn ignition off.
- Connect power source terminal of multi-use tester to cigarette lighter socket.

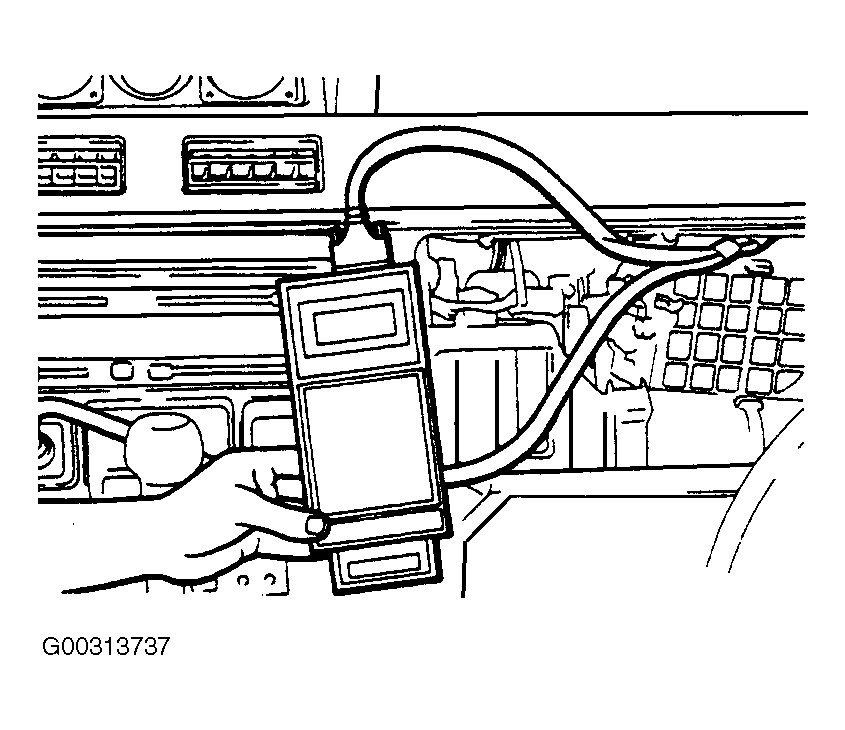

- Connect multi-use tester to diagnosis connector. See Fig 1 .
- Turn ignition on.
- Using multi-use tester, read out and record self-diagnosis output.
- Refer to diagnosis chart, and repair the indicated location of malfunction. See DIAGNOSTIC TROUBLE CODE DEFINITIONS .
- Erase malfunction code. See CLEARING DIAGNOSTIC TROUBLE CODES .
