CAUTION: If battery terminals are disconnected while engine is running or when ignition switch is in "ON" position, malfunction of computer or damage to semi-conductors could result.

Turn ignition switch to "OFF" position. Remove harness connectors "A" and "B" from ECU. See Fig 1 .
Set check switch of Feedback Carburetor Checker (09341 21000) to "OFF" position.
Set select switch of checker to "A" position. Connect FBC Wiring Harness Connector (09391-21101) to connectors of FBC checker.
Connect FBC connector to ECU connectors. Perform checks according to FBC SYSTEMS CHECK PROCEDURE CHART. See Fig 2 .
If checker shows variation from specifications, check for defective sensor and electrical wiring. Repair or replace defective components.
After repair or replacement of defective components, recheck system with checker. Set check switch of checker to "OFF" position.
Set ignition switch to "OFF" position. Disconnect all harness connectors and reinstall in proper harness connectors.

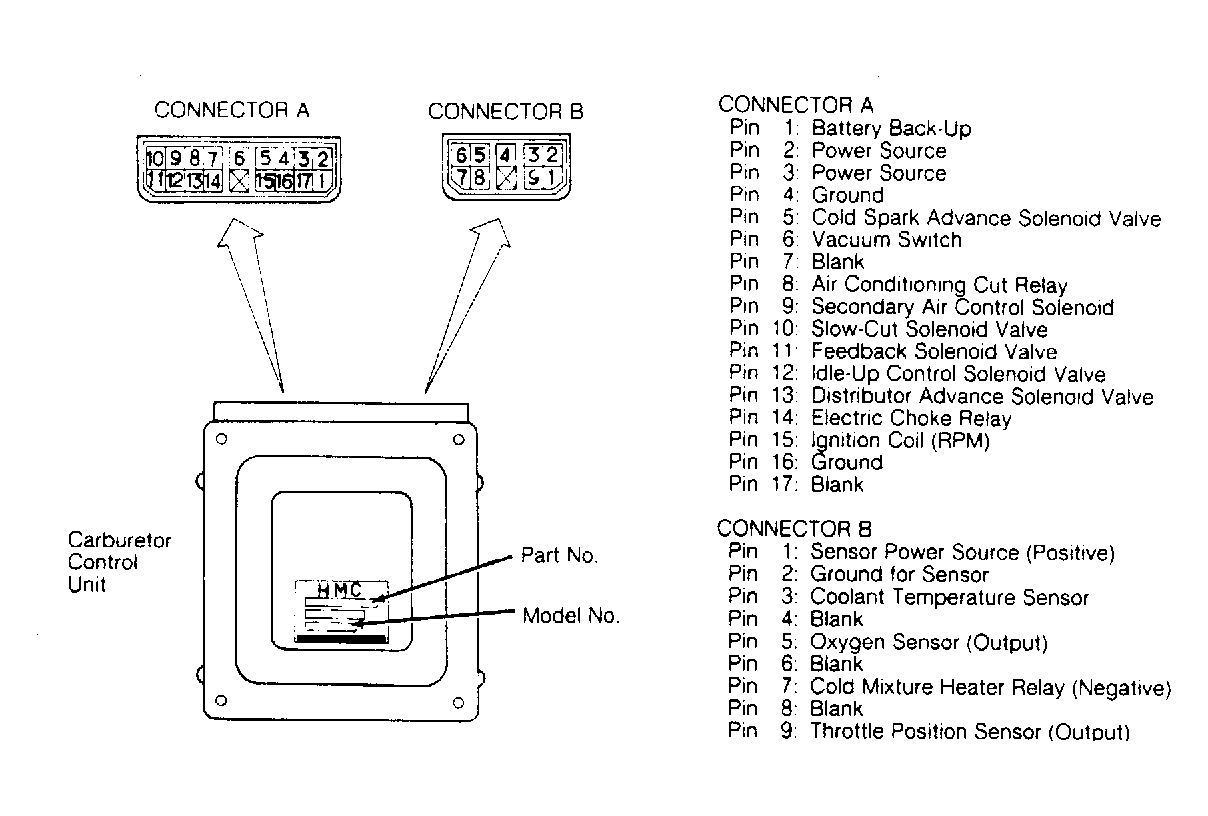

Fig 1: Electronic Control Unit Connectors
