1987 Mitsubishi Starion ESI-RFACTORY OEM SERVICE PROCEDURE

Control Relay

  1. Disconnect electrical harness and test continuity between terminals No. 1 and 7, then 3 and 7. See Fig 1. If there is no continuity, relay is good. If continuity is measured, replace control relay.
  2. Apply 12 volts across terminals No. 8 (positive) and 4 (negative) while testing continuity between terminals No. 3 and 7. If continuity exists, relay is good. If not, replace relay.
  3. Apply 12 volts across terminals No. 6 (positive) and 4 (negative) while testing continuity between terminals No. 1 and 7. If continuity exists, relay is good. If not, replace relay.
  4. Apply 12 volts across terminals No. 5 (positive) and 2 (negative) while testing continuity between terminals No. 1 and 7. If continuity exist, relay is good. If not, replace relay.

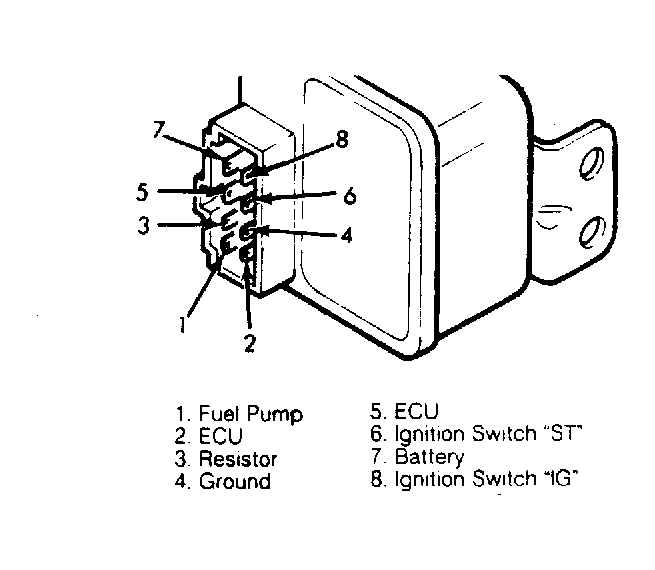

Fig 1: EFI Control Relay Terminal Positions
G61391
