1986 Mitsubishi Starion ESI-RFACTORY OEM SERVICE PROCEDURE
Airflow Sensor
- Disconnect airflow sensor connector. Unsnap finger clip and remove air cleaner cover. Remove filler from air cleaner body. Remove airflow sensor.

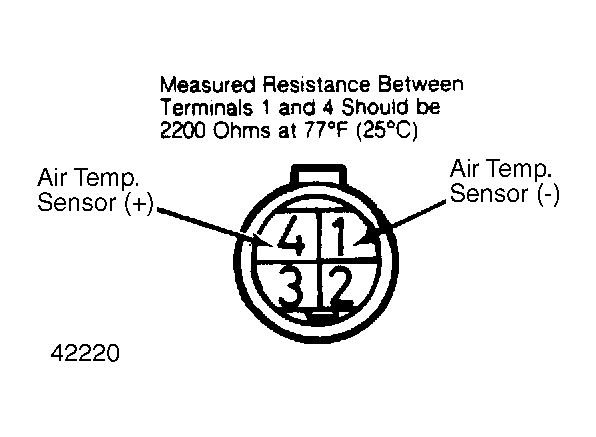

- To inspect, check air cleaner element, case and cover for damage and contamination. Replace if necessary. Check intake air temperature sensor by measuring resistance.AIRFLOW SENSOR (AFS) RESISTANCE
Temperature °F (°C) Resistance (Ohms) 68 (20) 2500 - Reverse removal procedure to install airflow sensor. Make sure that connector is securely attached.
