61 35 360 Removing and installing control unit for camera-based driver support systems (KAFAS)
Attention!
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .
Preliminary work needed:
- Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
- Remove RIGHT GLOVE COMPARTMENT .
Removal:

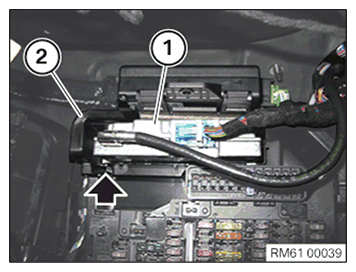

Release detent on equipment holder.
Feed out KAFAS control unit (1) from equipment holder (2).

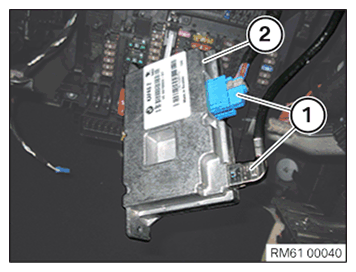

Unlock connector (1) on KAFAS control unit (2) and disconnect.
Installation:
Connect connector (1) to KAFAS control unit (2).
Join KAFAS control unit (1) in equipment holder (2).
Required follow-up work
- Install RIGHT GLOVE COMPARTMENT .
- Connect BATTERY CABLE NEGATIVE TERMINAL .
