2013 Mini Cooper JCW, 2D Convertible, Standard TransFACTORY OEM SERVICE PROCEDURE

ULF-SBX-H SX17182A Connector End View

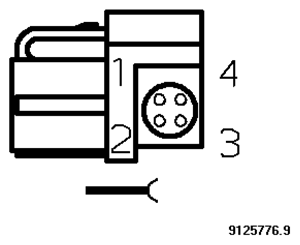

Fig 1: ULF-SBX-H SX17182A Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector X17182

Pin	Type	Description /Signal type	Connection /Measuring notes
1	E	USB ground	AUX-IN connection
2	E	USB data signal	AUX-IN connection
3	E	USB voltage supply	AUX-IN connection
4	E	USB data signal	AUX-IN connection
