ECVT Gear Ratios: Notes
The ECVT transmission includes a final drive and a secondary reduction drive arrangement.
The ratios are as follow:
- Final drive ratio is 4.050:1 and the secondary reduction ratio is 1.423:1.

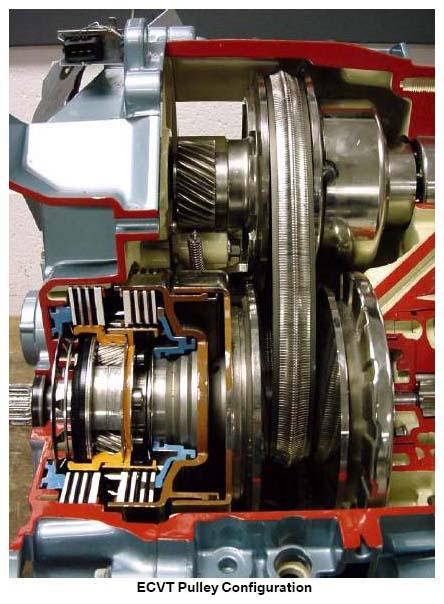

- Low ratio of the belt and pulleys is 2.416:1, allowing a overall low ratio of 13.924:1.
- Highest ratio of the belt and pulleys is 0.443:1, which provides an overall ratio of 2.553:1.
- Reverse has on overall ratio of 15.472:1.
