Measurements Interface Box(MIB): Notes
The MIB was developed to expand the basic measurement capabilities and functions of the GT1 to the level of the DISplus.
The MIB contains all of the components necessary for acquiring static and dynamic signals, generating stimulation signals as well as complex measurements. The MIB collects the signals directly from the vehicle, processes them and transfers them to the diagnosis system for analysis.
The MIB is connected to the GT1 via the new MIB-GT1 connection cable. The GT1 automatically recognizes if the MIB is connected when "Measuring System" is selected. When the Measuring System is selected the "Ready" light on the MIB will light.

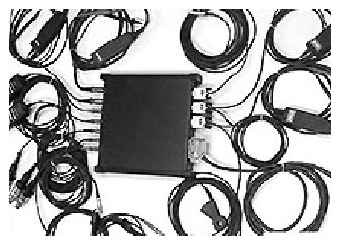

The following items are included with the MIB when delivered:
- Measurement Interface Box
- 1000 amp clamp
- 25 bar pressure sensor - plastic cable protector is locked to the pressure sensor body. Do not attempt to open it .
- Quick connect adapter for 25 bar cable
- MIB-GT1 connecting cable
- KV clip
- RZV cable
- Temp sensor
- Clip-on trigger sensor
- Stimulation cables 1&2
- External power supply unit.
- TD cable
