EMS2000 Control Module
The EMS2000 Control Unit is the center of the engine management system. It receives and processes all inputs and issues corresponding control commands.

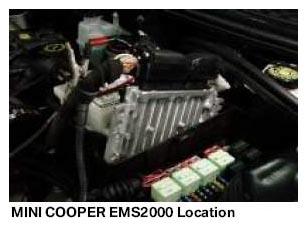

The EMS2000 control unit is located on the left hand side compartment of the battery box (viewed from the drivers seat) next to the engine bay fuse box, on the MINI COOPER. On the MINI COOPER S it is located in a similar position to the left of the engine bay fuse box, mounted in a side compartment of the air box.
In addition to engine controls it has direct control over the following systems:
- Drive By Wire (DBW) throttle control
- Automatic Transmission (ECVT)
- Cruise control
- Air conditioning clutch relay
- Cooling fan relays
The EMS2000 also has an interface with the following systems:
- Air Conditioning (IHKS/IHKA)
- Automatic Stability Control (ASC)
- Dynamic Stability Control (DSC)
- Immobilization (EWS)
