Headlamp Washer System

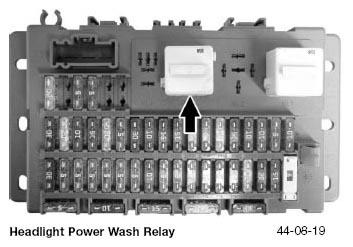

The headlamp power wash pump, is controlled by a relay mounted in the passenger compartment fusebox. A low side switch in the BC1 activates it.
The system will function when the low or high beam lights are on. The headlights are washed with two squirts with a pause of 5 seconds between wash cycles. After activation a 10-minute inhibit function is active - this can be over-ridden by activating the washer switch four times in succession.
