CKM - Vehicle Memory (w/ Progman v. 16 & higher)

The CKM feature contained in CIP provides the ability to "customize" certain vehicle functions to meet the specific preferences of the customer. It is important to note that the functions/features that can be "customized" will vary depending on model, equipment level and vehicle software level.

Upon selecting "CKM" a check of the current vehicle and key settings is made and displayed. A printout should be collected before and after the customization is performed.

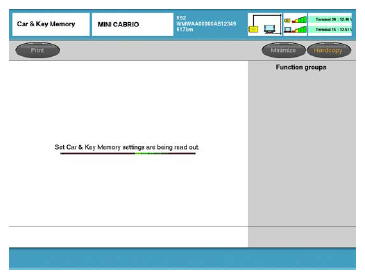

Upon selecting CKM, a check of the current vehicle settings is made.

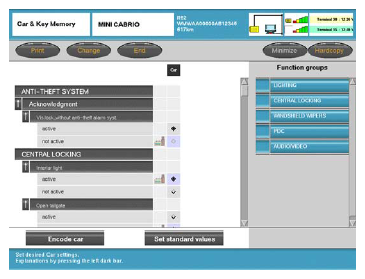

Once the check is complete the current setting are displayed and can be printed out.

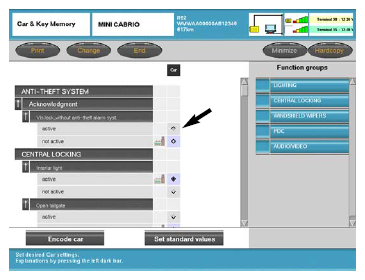

Changes to the current settings can be made by selecting the preferred function.

All selections can be made at once.

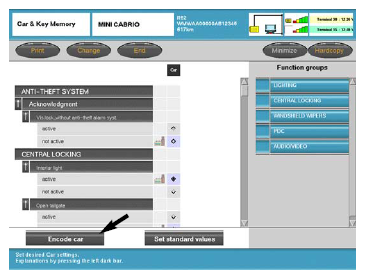

Once all selections have been made, select Encode car  .

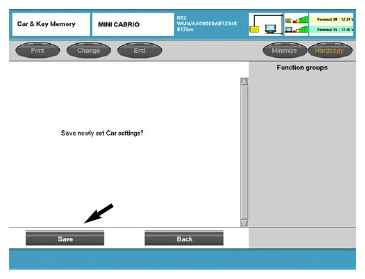

To save setting select Save  .

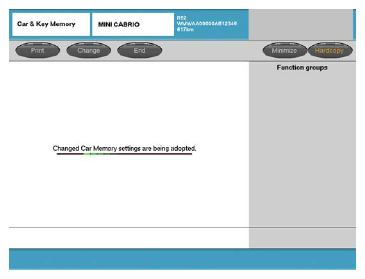

A status bar shows up during the coding procedure.

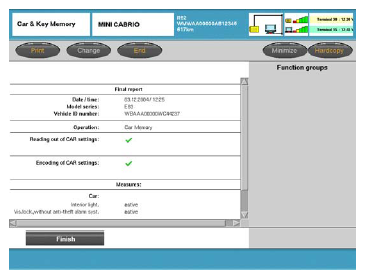

Once complete, a final diagnosis report will be displayed.

Select Finish  .

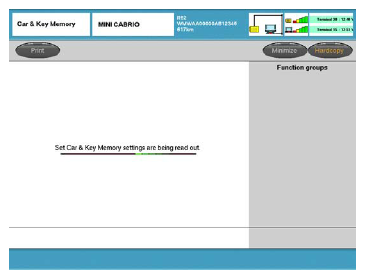

Newly change CKM settings are being read out.

CIP displays a window with the changes made to vehicle memory reflected.

End and terminate CIP.

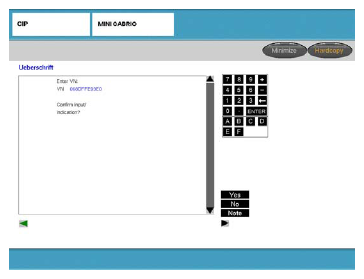

Confirm or enter new VN information.

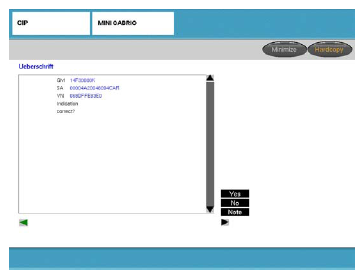

Confirm or correct ZCS information.

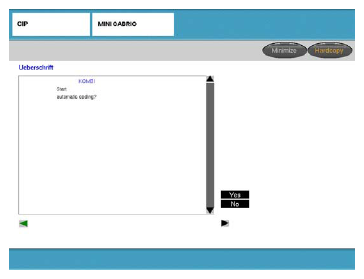

Select Yes  to begin the coding process for the installed/selected module.

Upon completion of the coding process print out a copy of the ZCS information displayed and attach it to the repair order to be maintained with vehicle file.

Switch ignition off for 10 seconds, then check for proper system operation.
