Cylinder Head Assembly

Cylinder Head

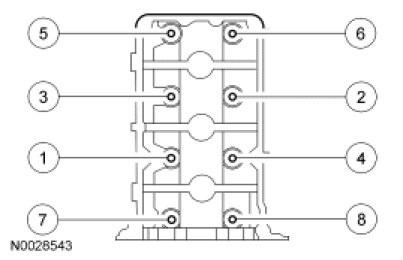

Position the new LH and RH cylinder heads and gaskets. Install new bolts and tighten in the sequence shown in 6 stages.
Stage 1: Tighten to 40 Nm (30 lb-ft).
Stage 2: Tighten to 90 Nm (66 lb-ft).
Stage 3: Loosen one full turn.
Stage 4: Tighten to 40 Nm (30 lb-ft).
Stage 5: Tighten 90 degrees.
Stage 6: Tighten 90 degrees.






Bolt re-usability

NOTE: New cylinder head bolts must be installed. They are a torque-to-yield design and cannot be reused.

Surface Variation -- Head-to-block, Head-to-manifolds And Surface Variation -- Warpage













a Specification 82.4 mm (3.2441 in) diameter gauge.

Camshaft Bearing Cap

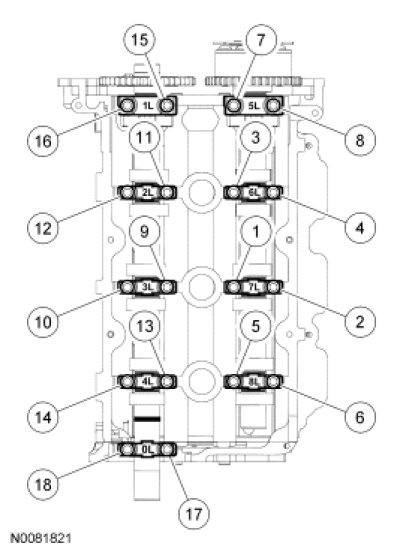

Tighten the LH camshaft bearing cap bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Individually loosen and then tighten each camshaft bearing cap to 10 Nm (89 lb-in).

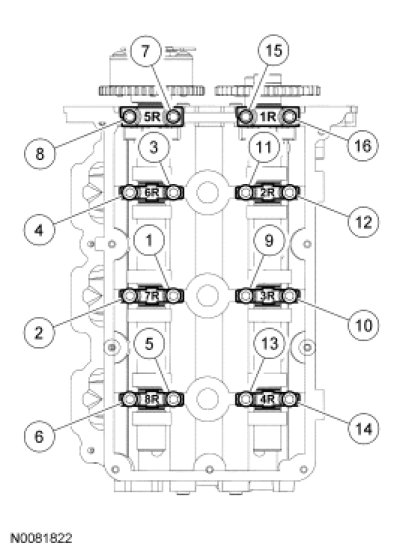

Tighten the RH camshaft bearing cap bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Individually loosen and then tighten each camshaft bearing cap to 10 Nm (89 lb-in).
