2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Test KF: Fan Control (FC) Relays
PINPOINT TEST KF: FAN CONTROL (FC) RELAYS

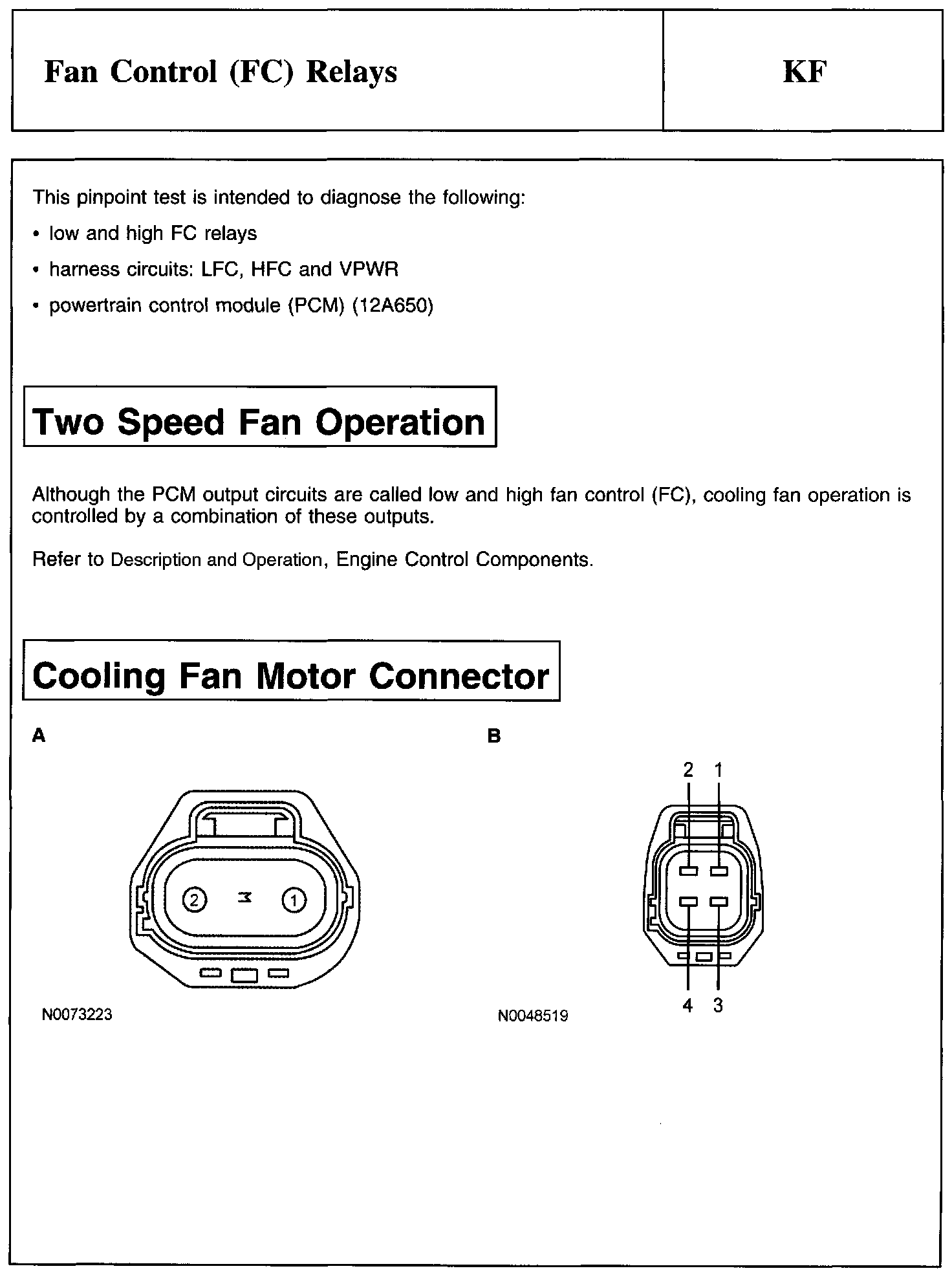

Two Speed Fan Operation And Cooling Fan Motor Connector:

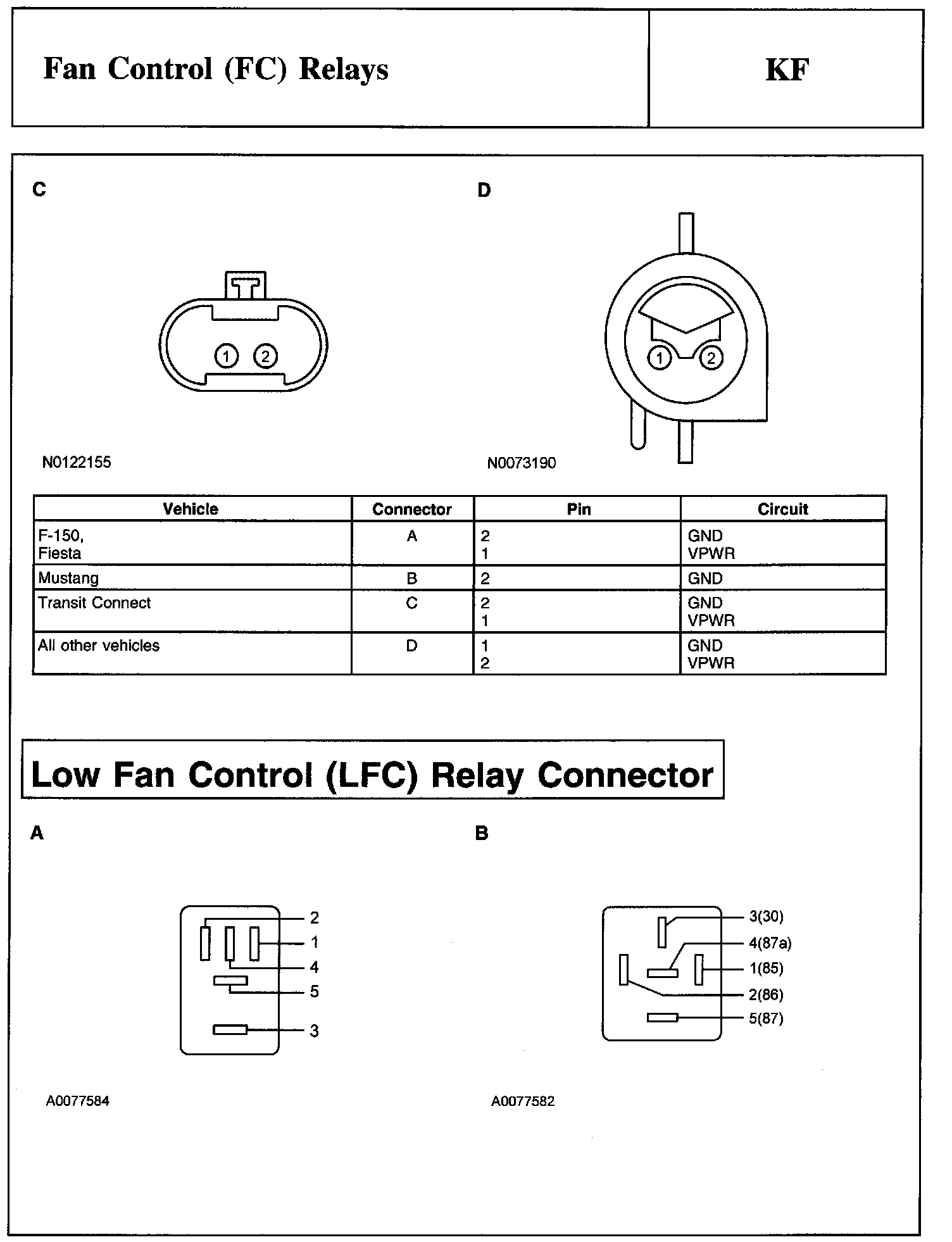

Cooling Fan Motor Connector And Low Fan Control (LFC) Relay Connector:

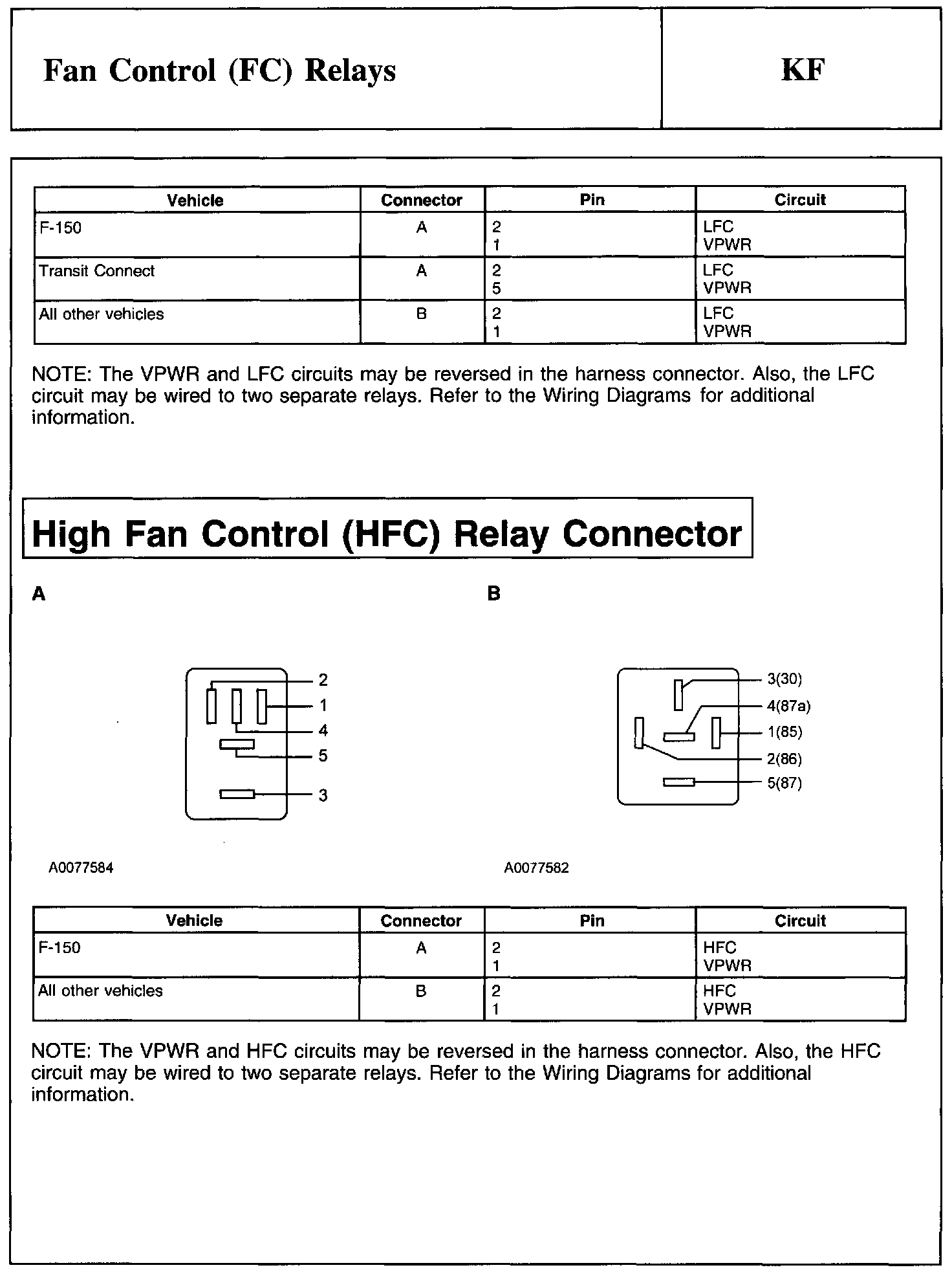

Low Fan Control (LFC) Relay Connector And High Fan Control (HFC) Relay Connector:

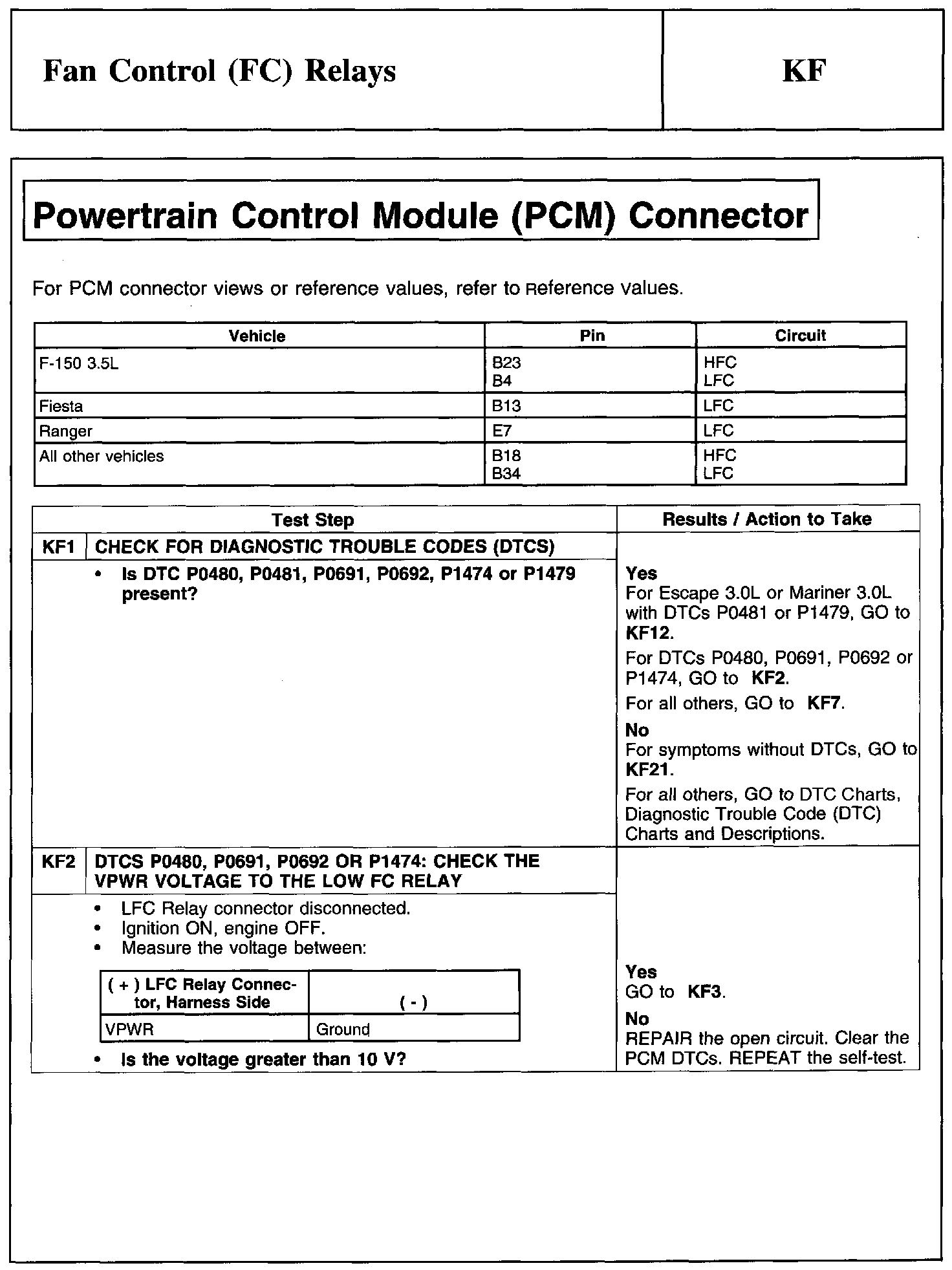

KF1-KF2:

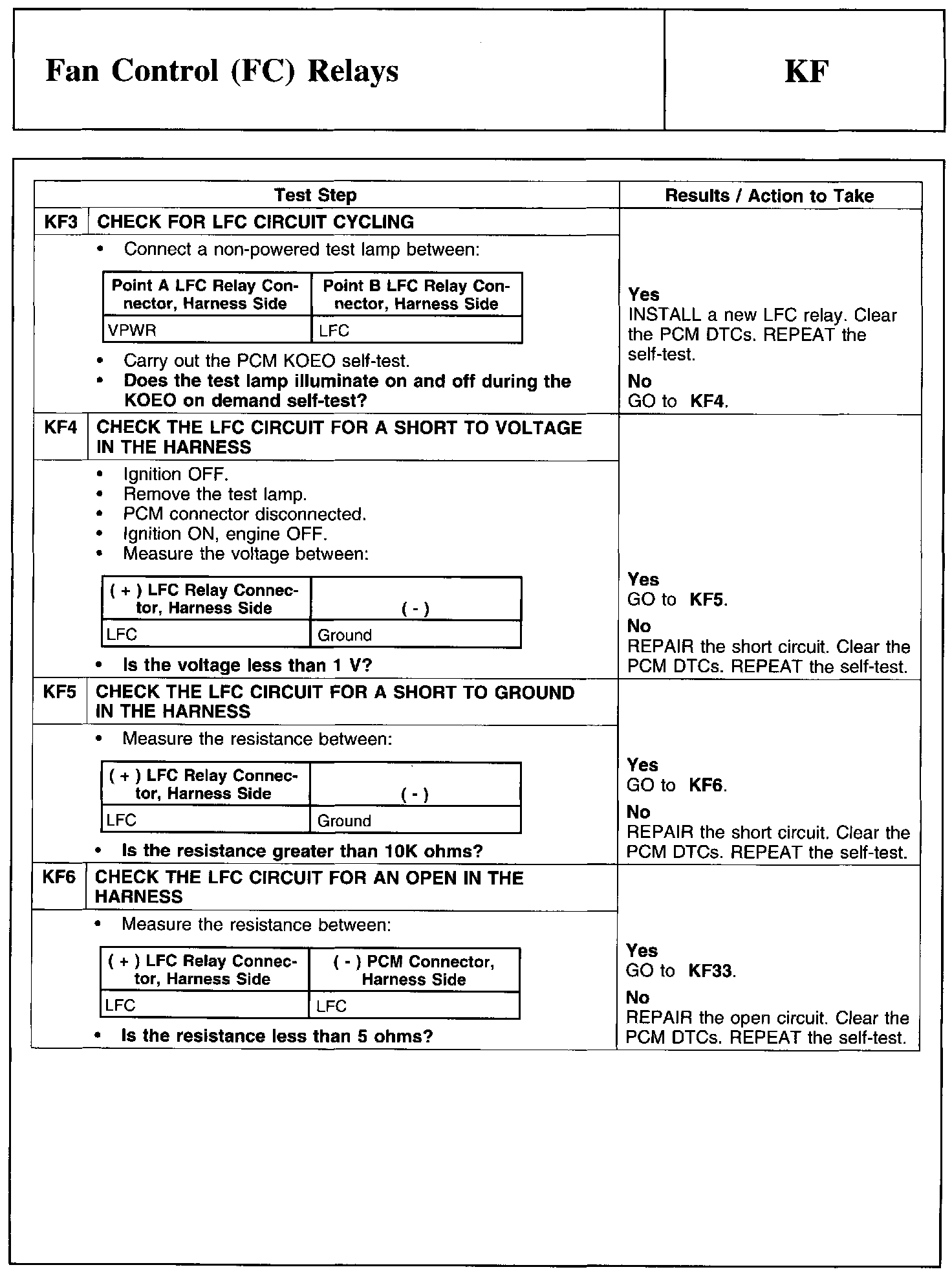

KF3-KF6:

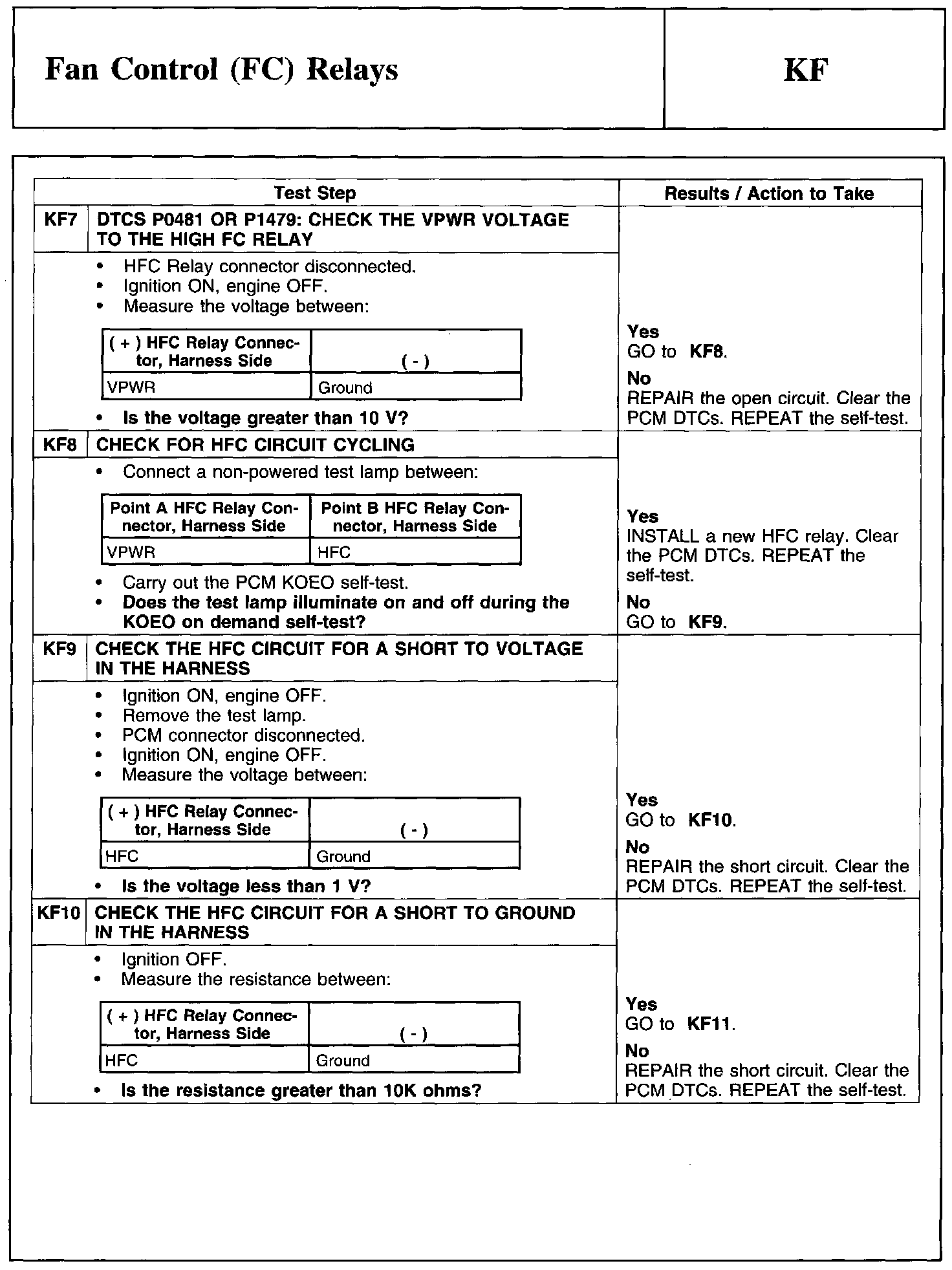

KF7-KF10:

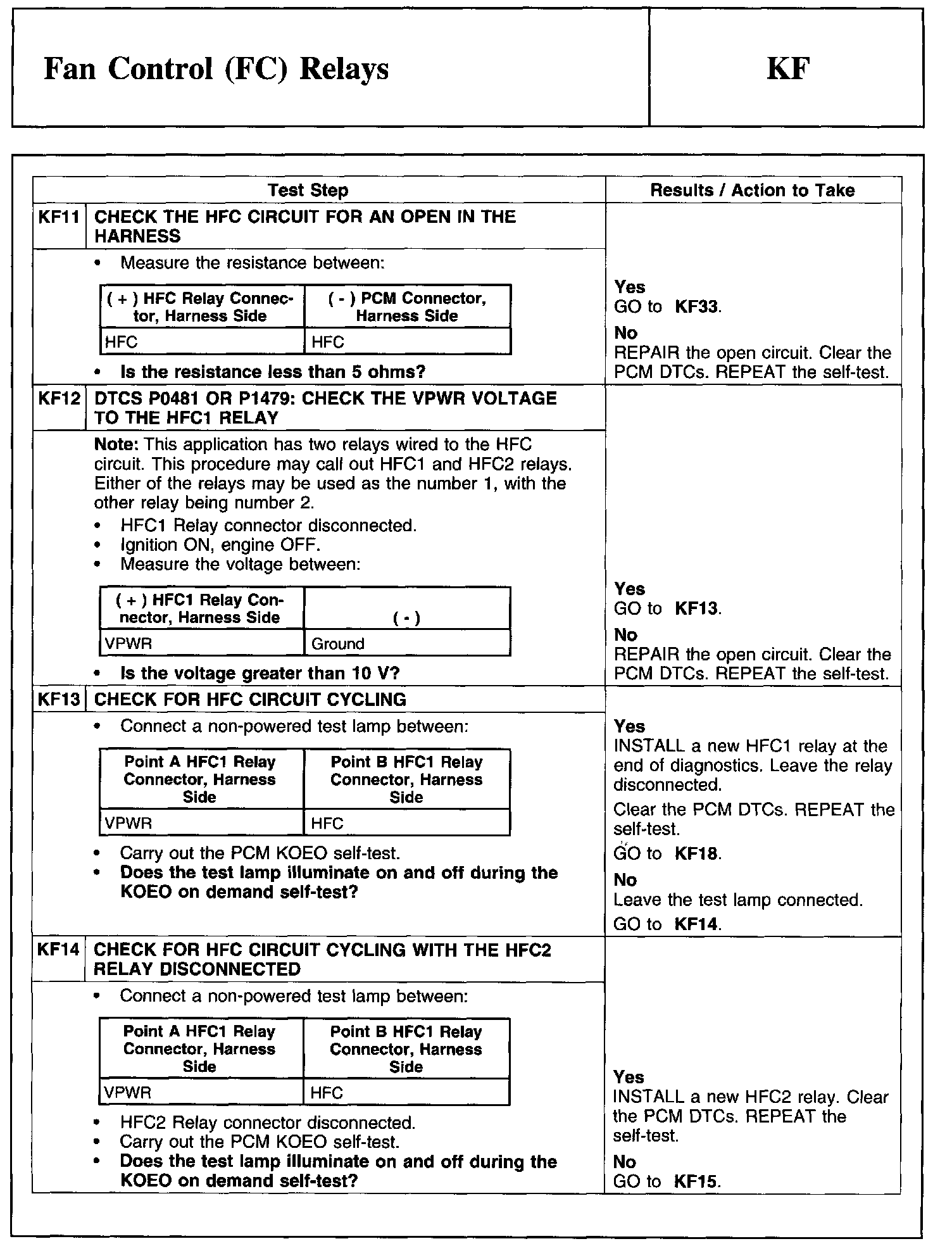

KF11-KF14:

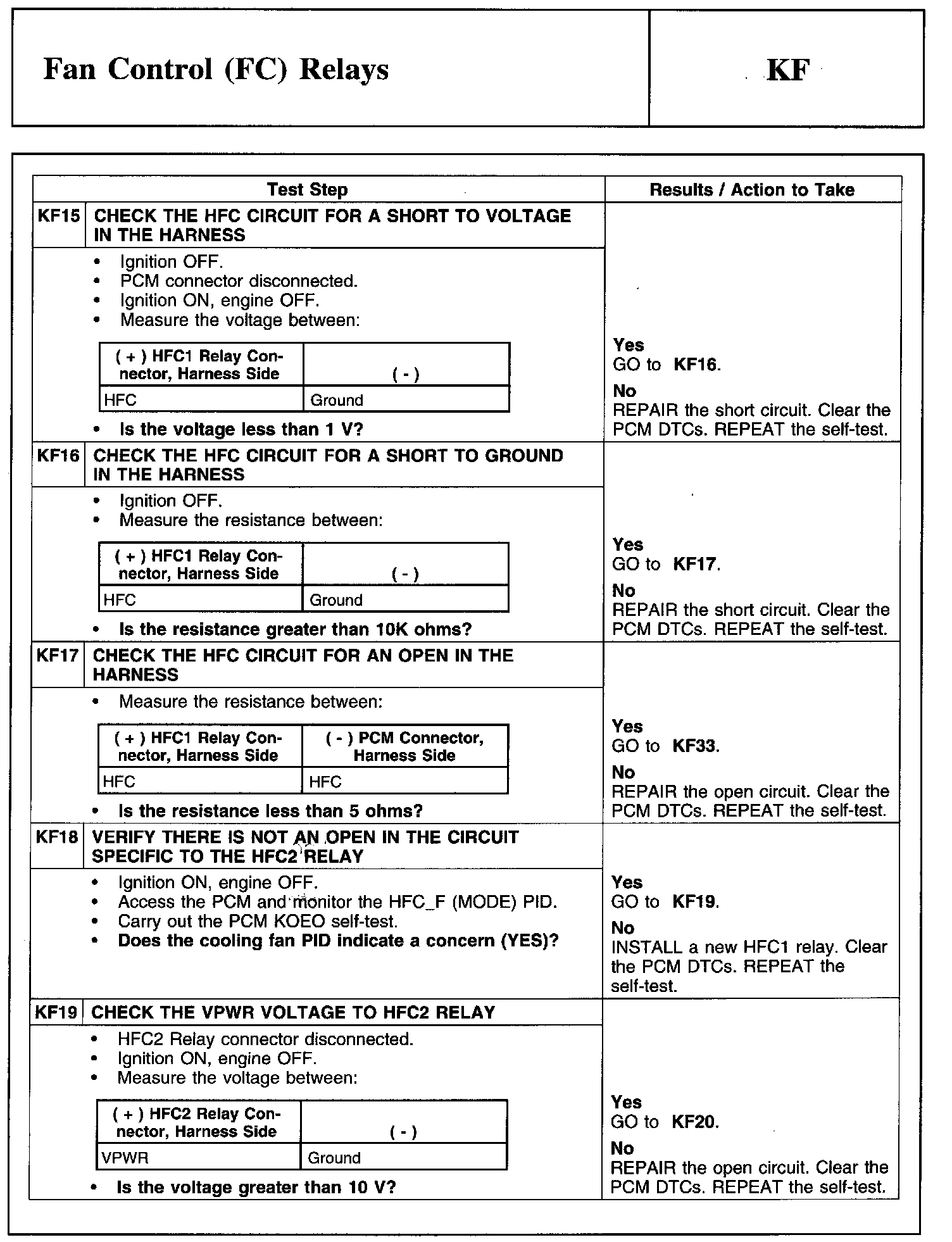

KF15-KF19:

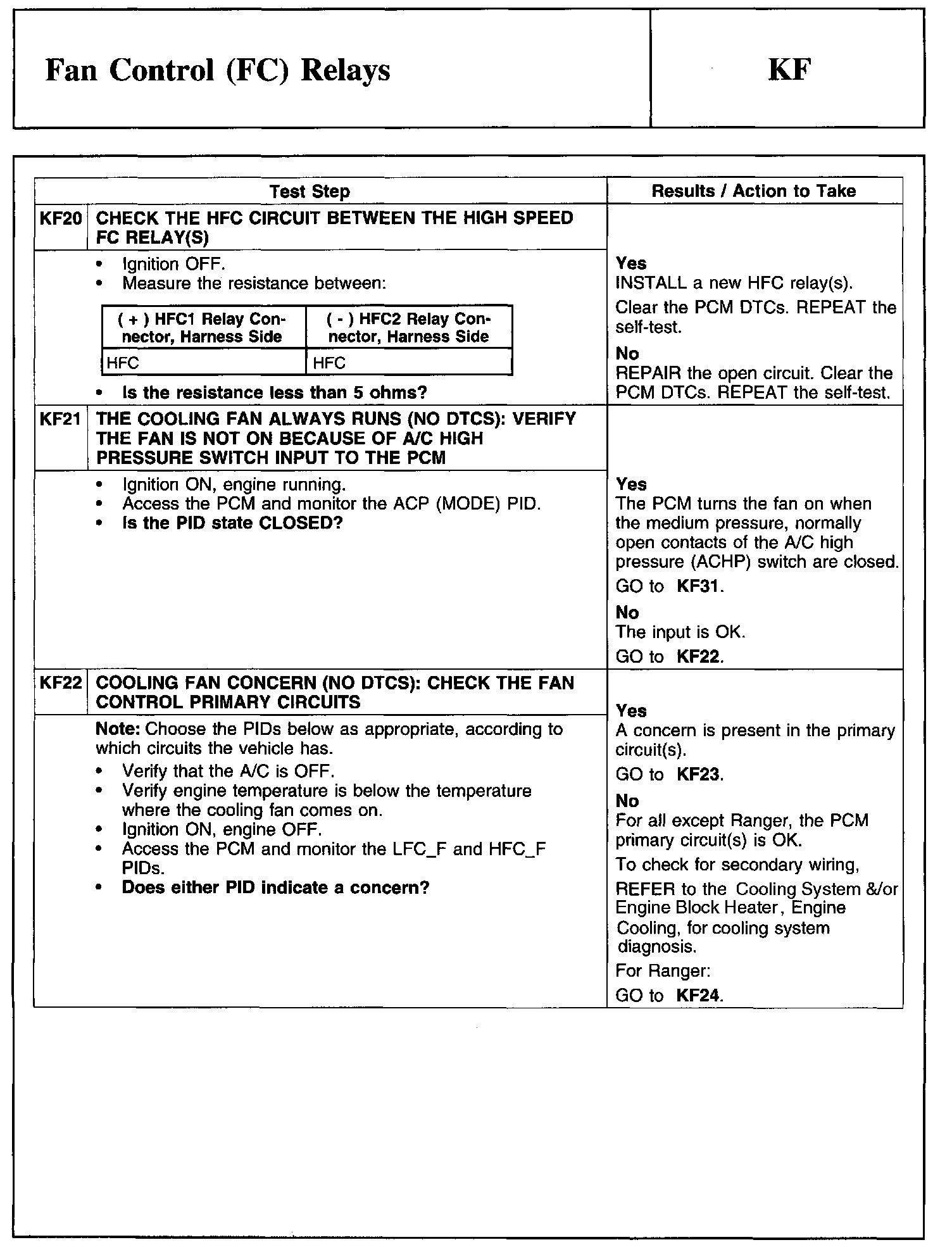

KF20-KF22:

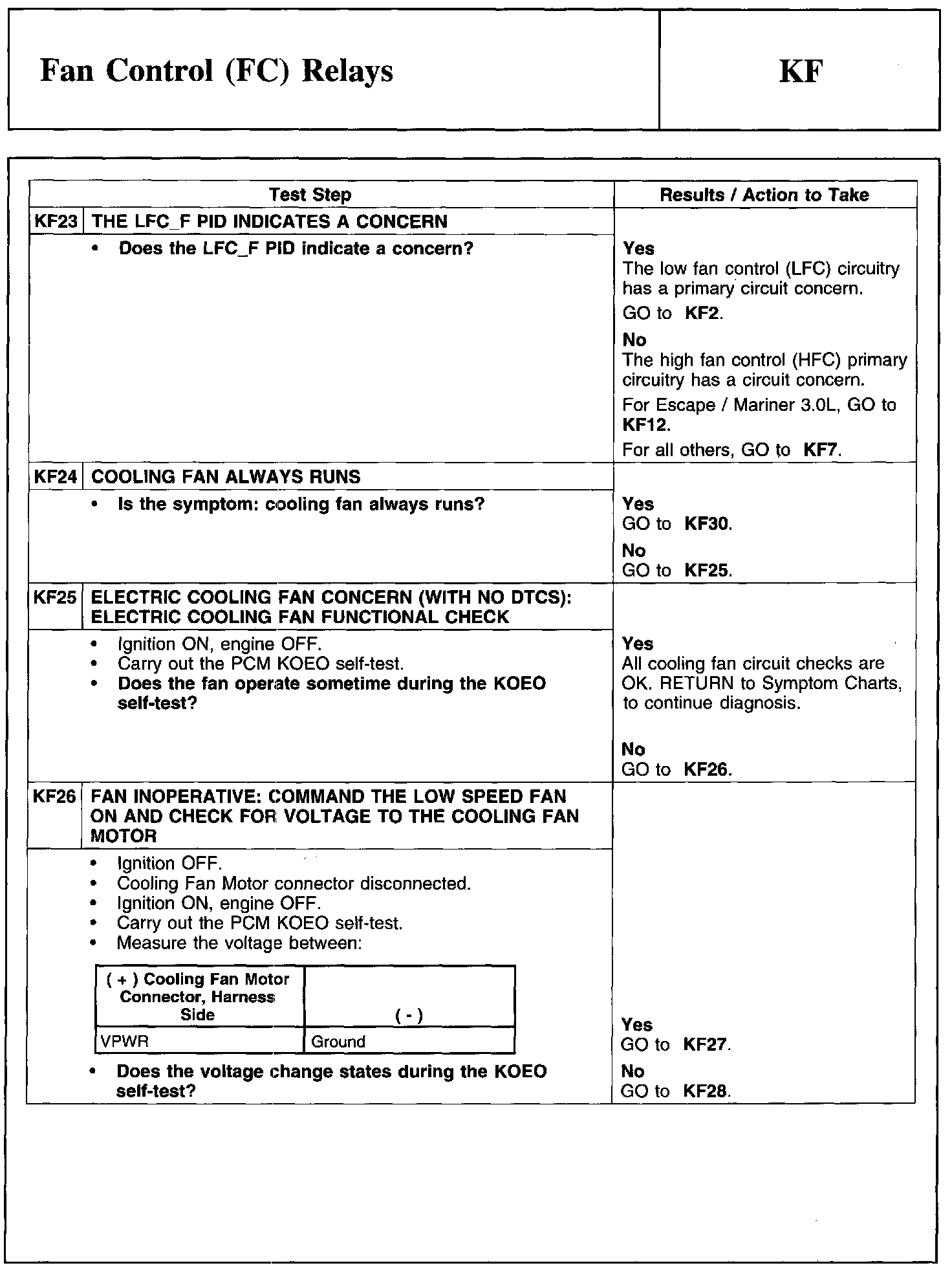

KF23-KF26:

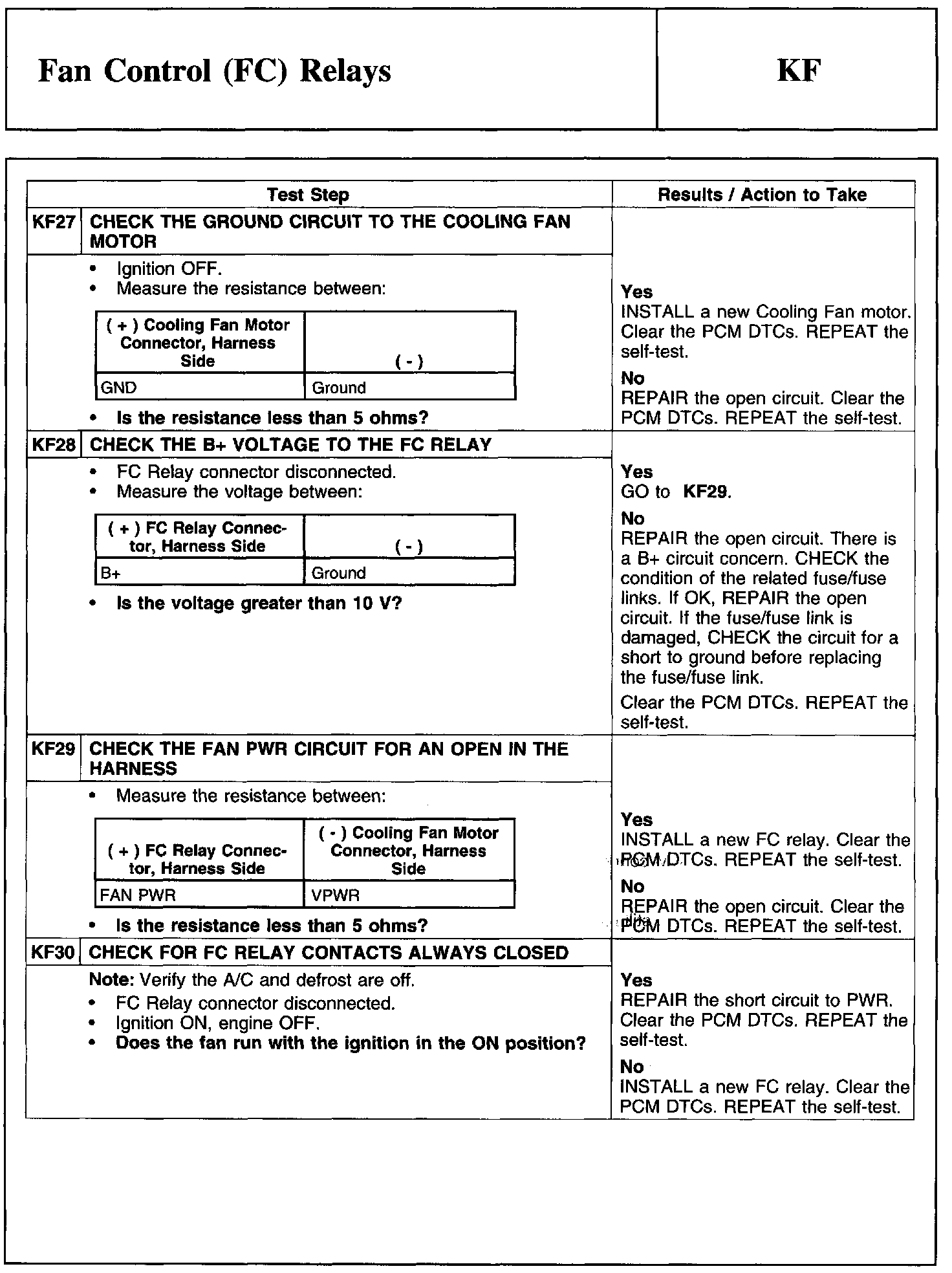

KF27-KF30:

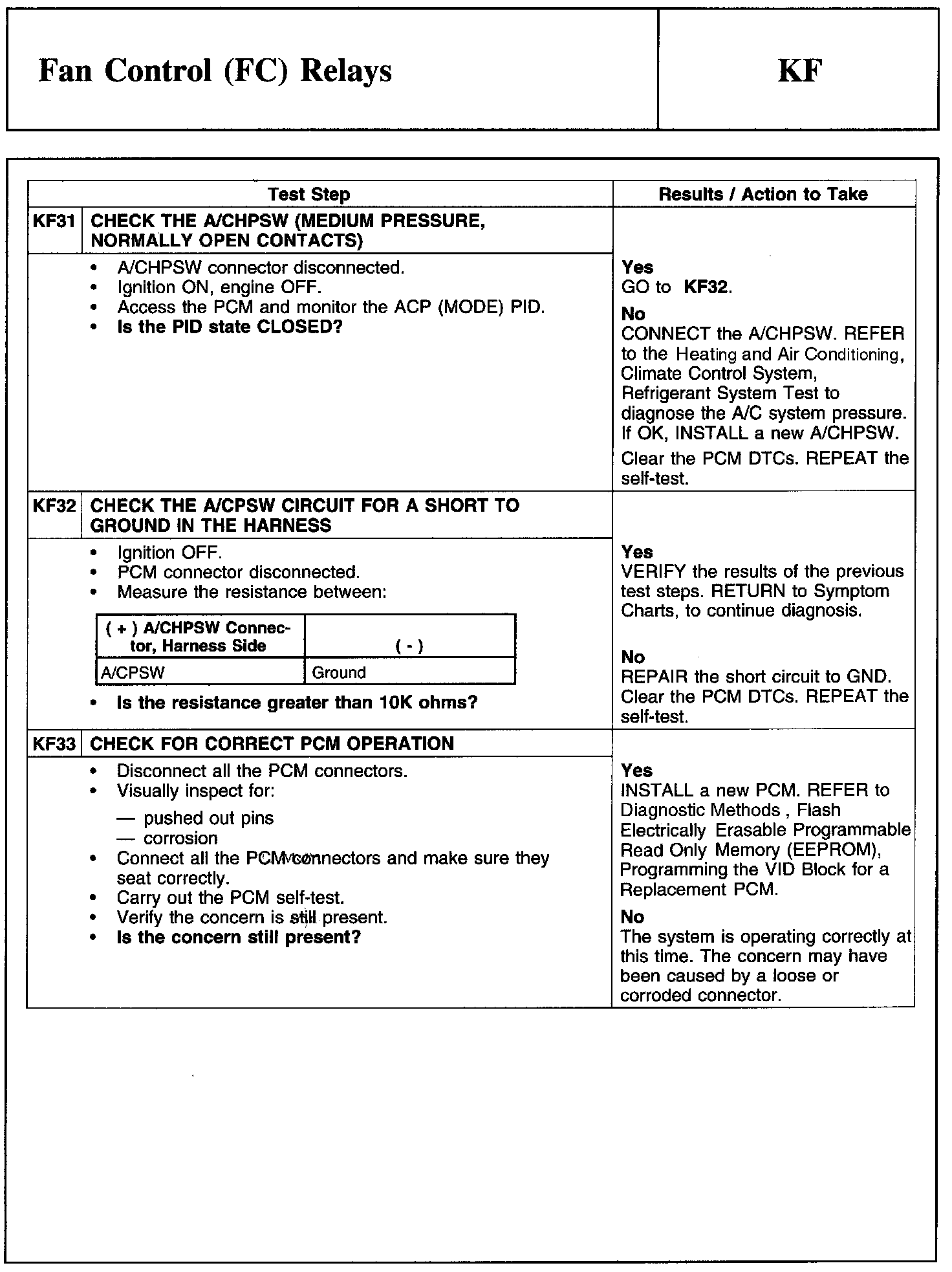

KF31-KF33:
