2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Test KD: Electric Exhaust Gas Recirculation (EEGR) System
PINPOINT TEST KD: ELECTRIC EXHAUST GAS RECIRCULATION (EEGR) SYSTEM

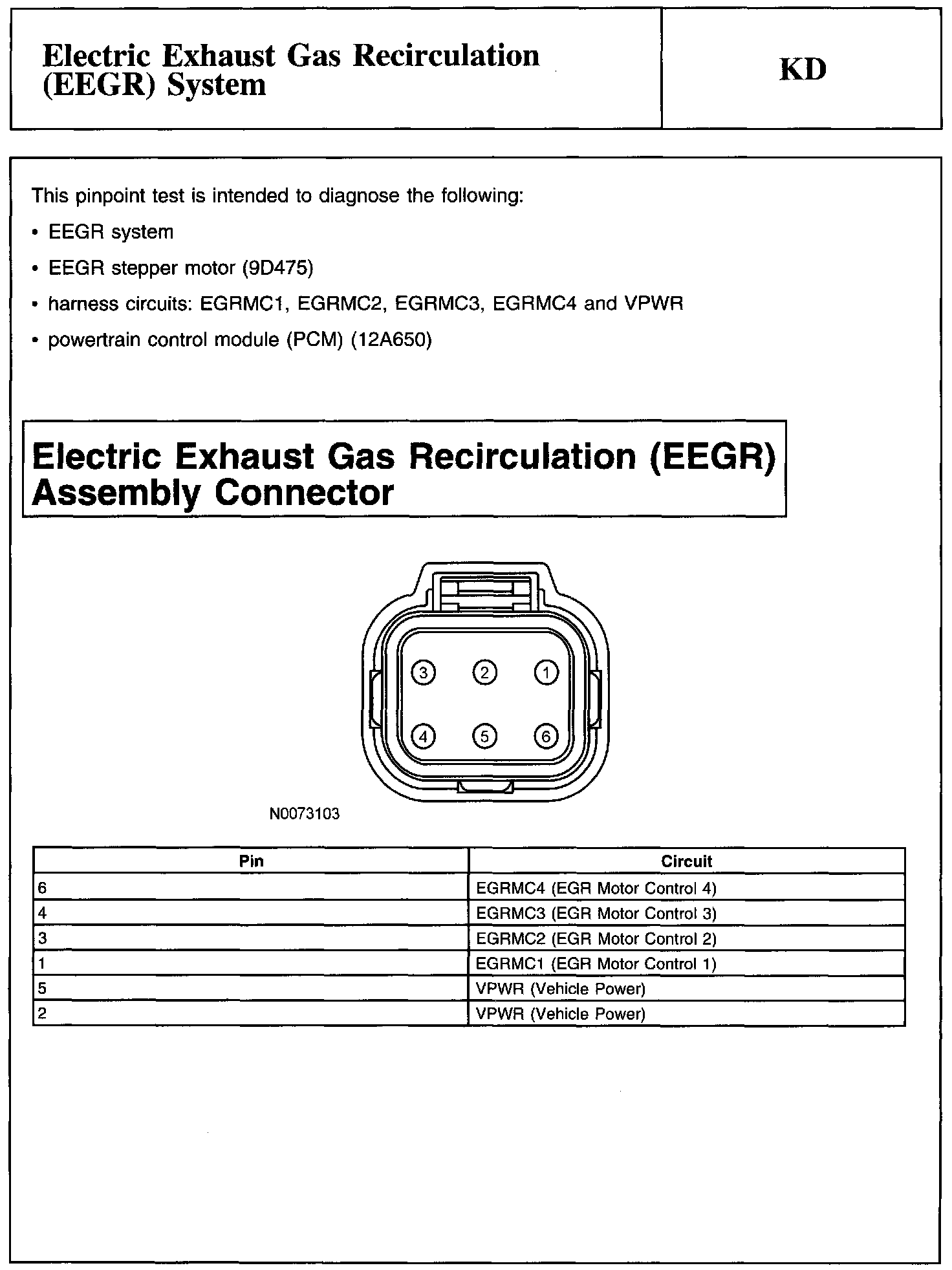

Electric Exhaust Gas Recirculation (EEGR) Assembly Connector:

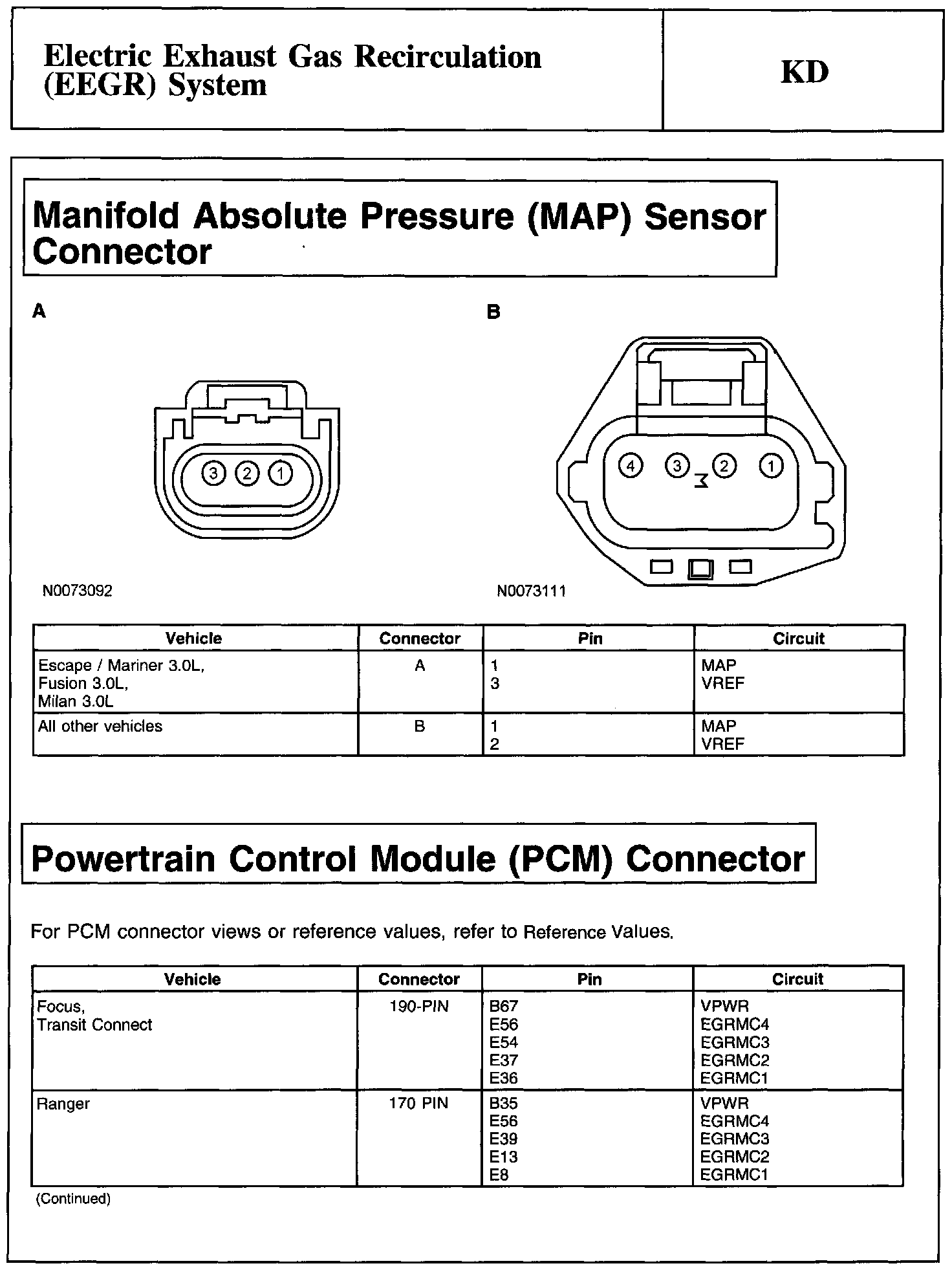

Manifold Absolute Pressure (MAP) Sensor Connector And Powertrain Control Module (PCM) Connector:

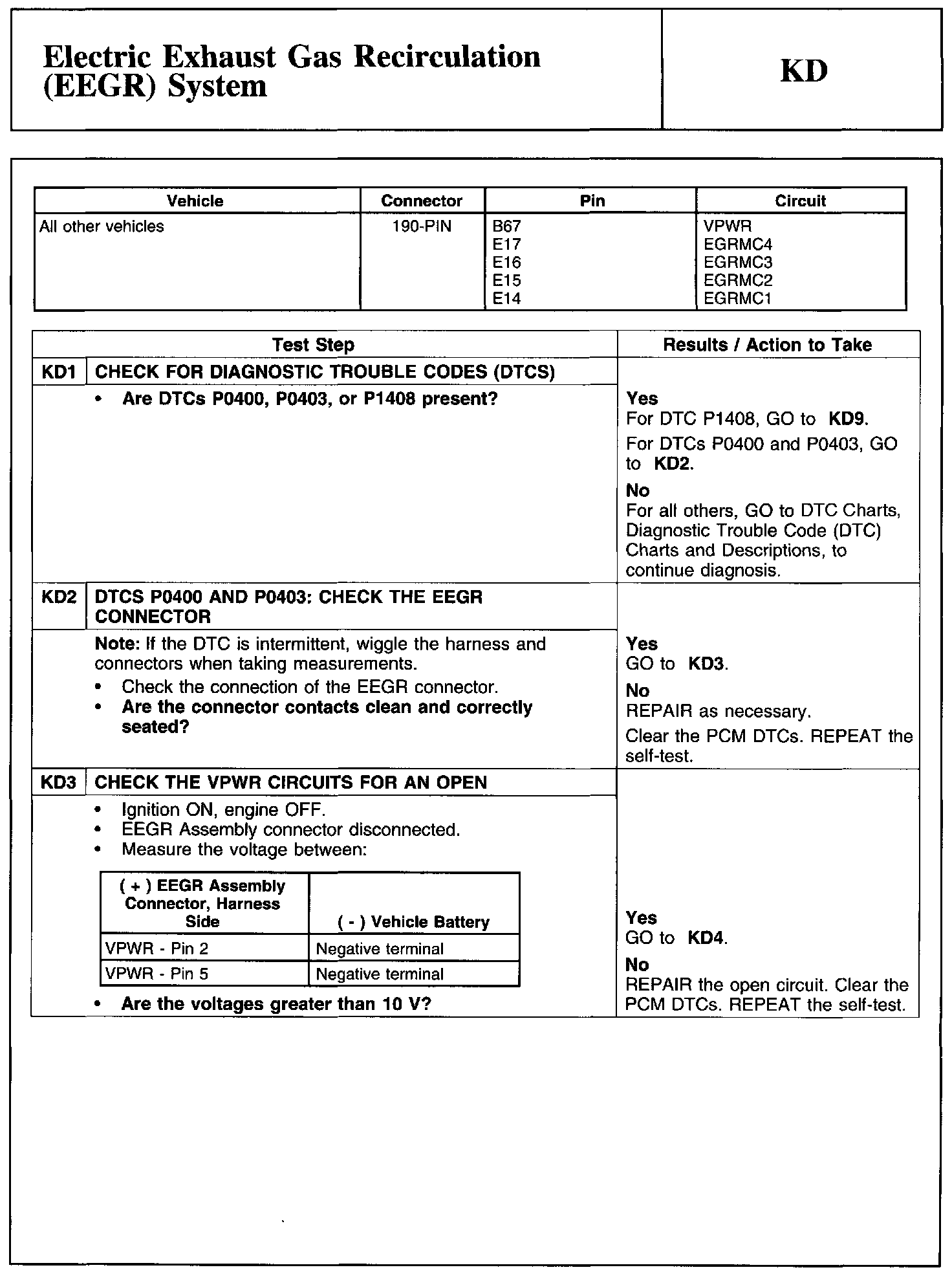

KD1-KD3:

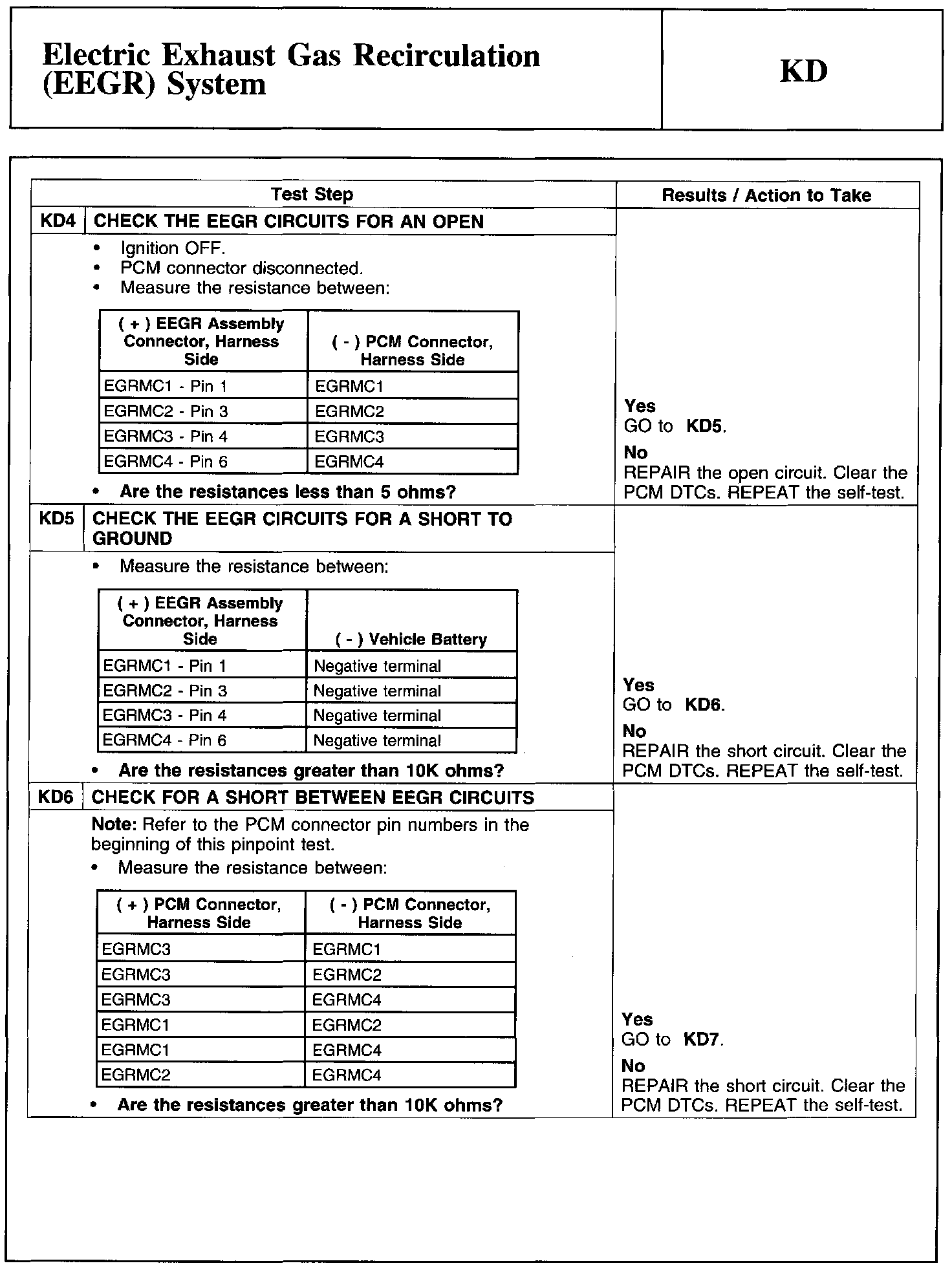

KD4-KD6:

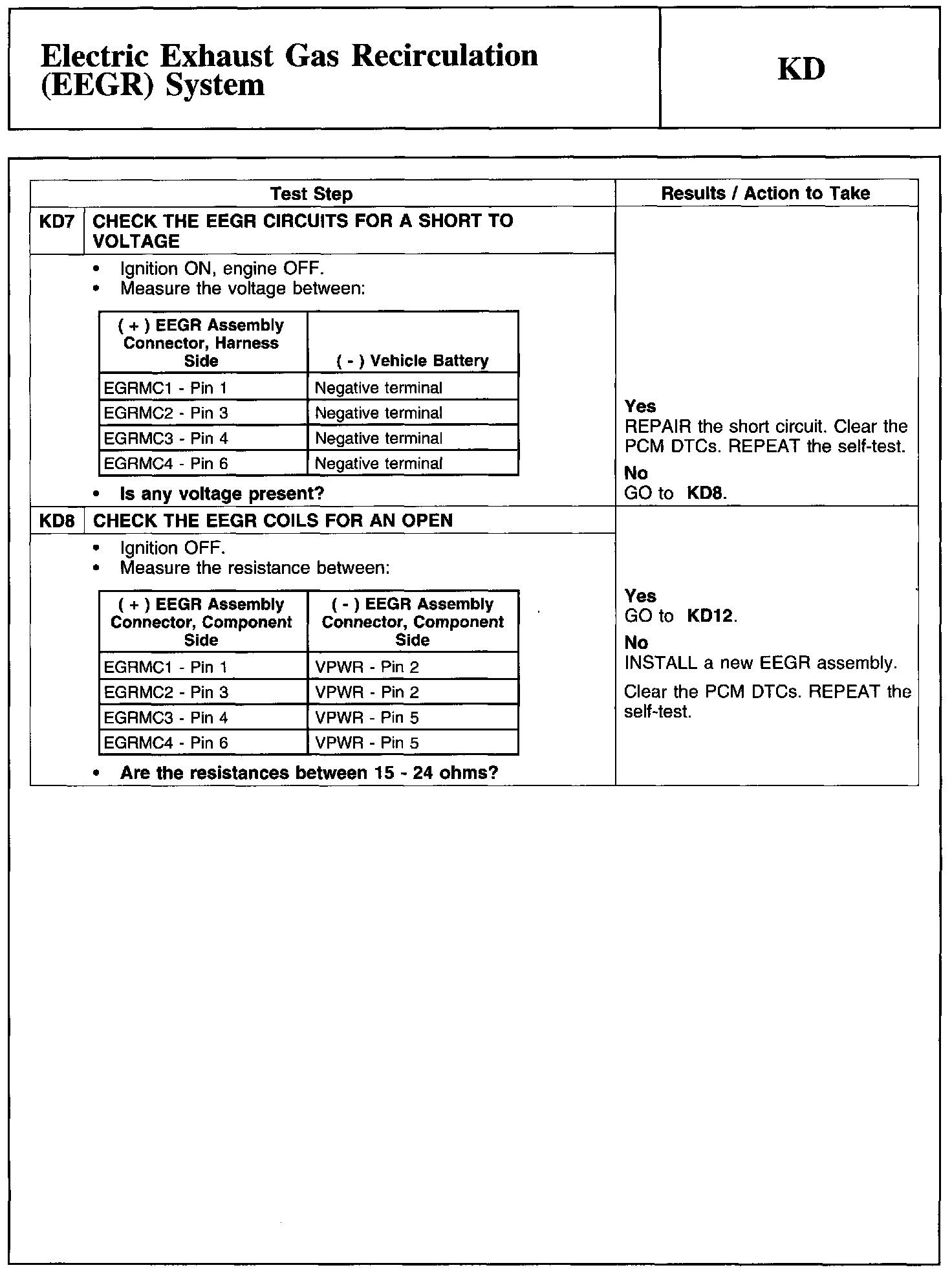

KD7-KD8:

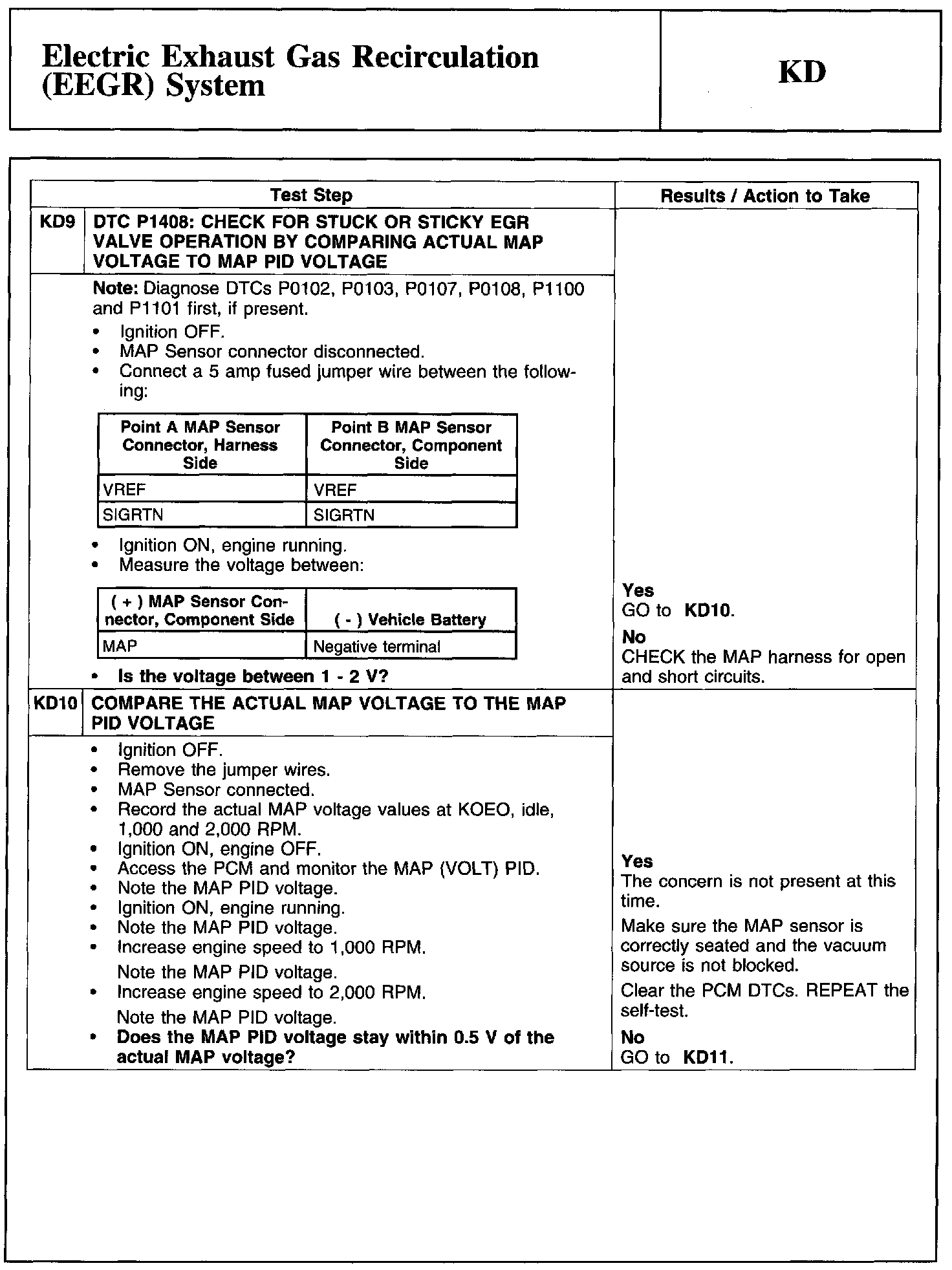

KD9-KD10:

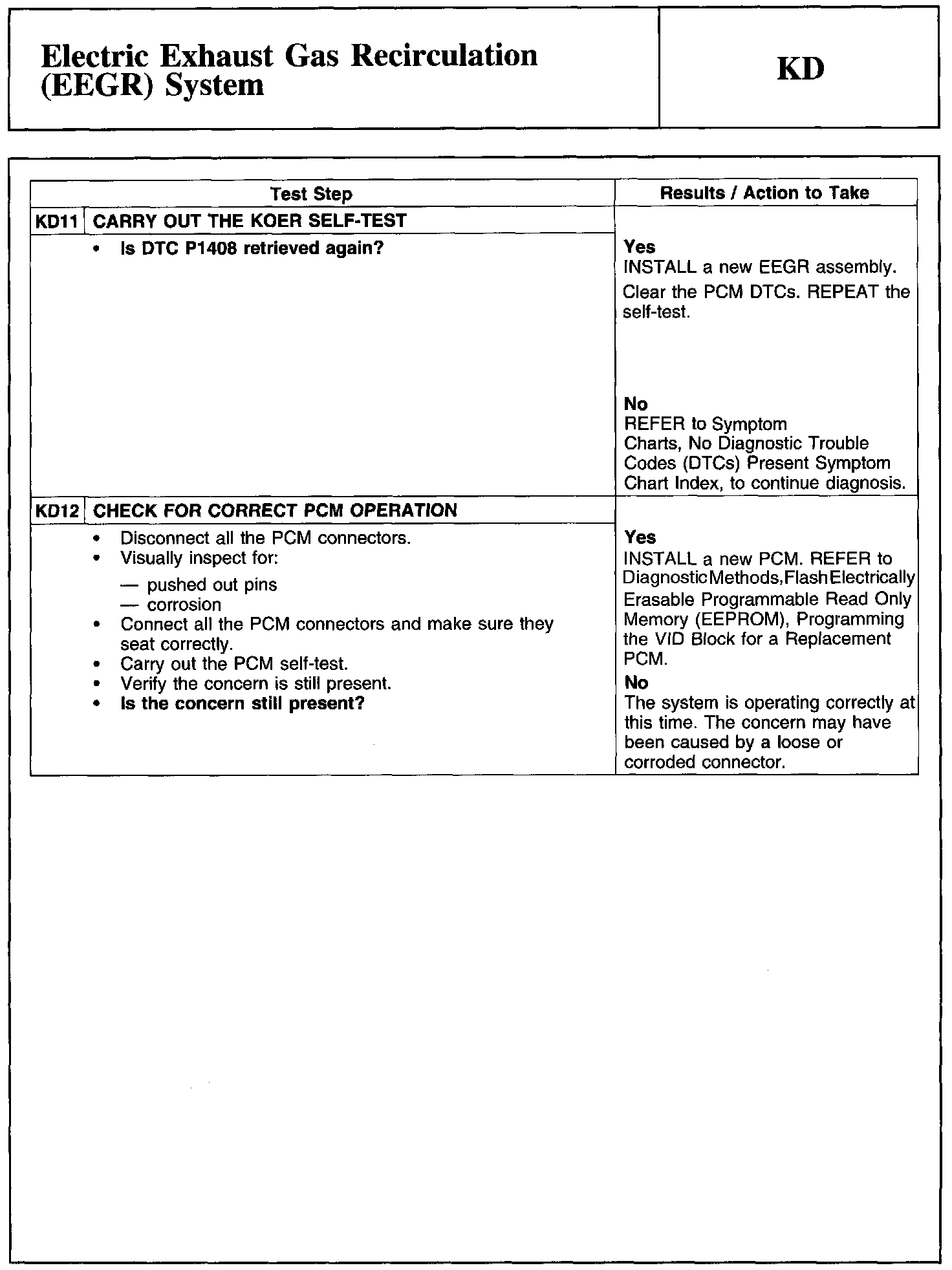

KD11-KD12:
