2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE

Test JB: Secondary Ignition (COP)

PINPOINT TEST JB: SECONDARY IGNITION (COP)

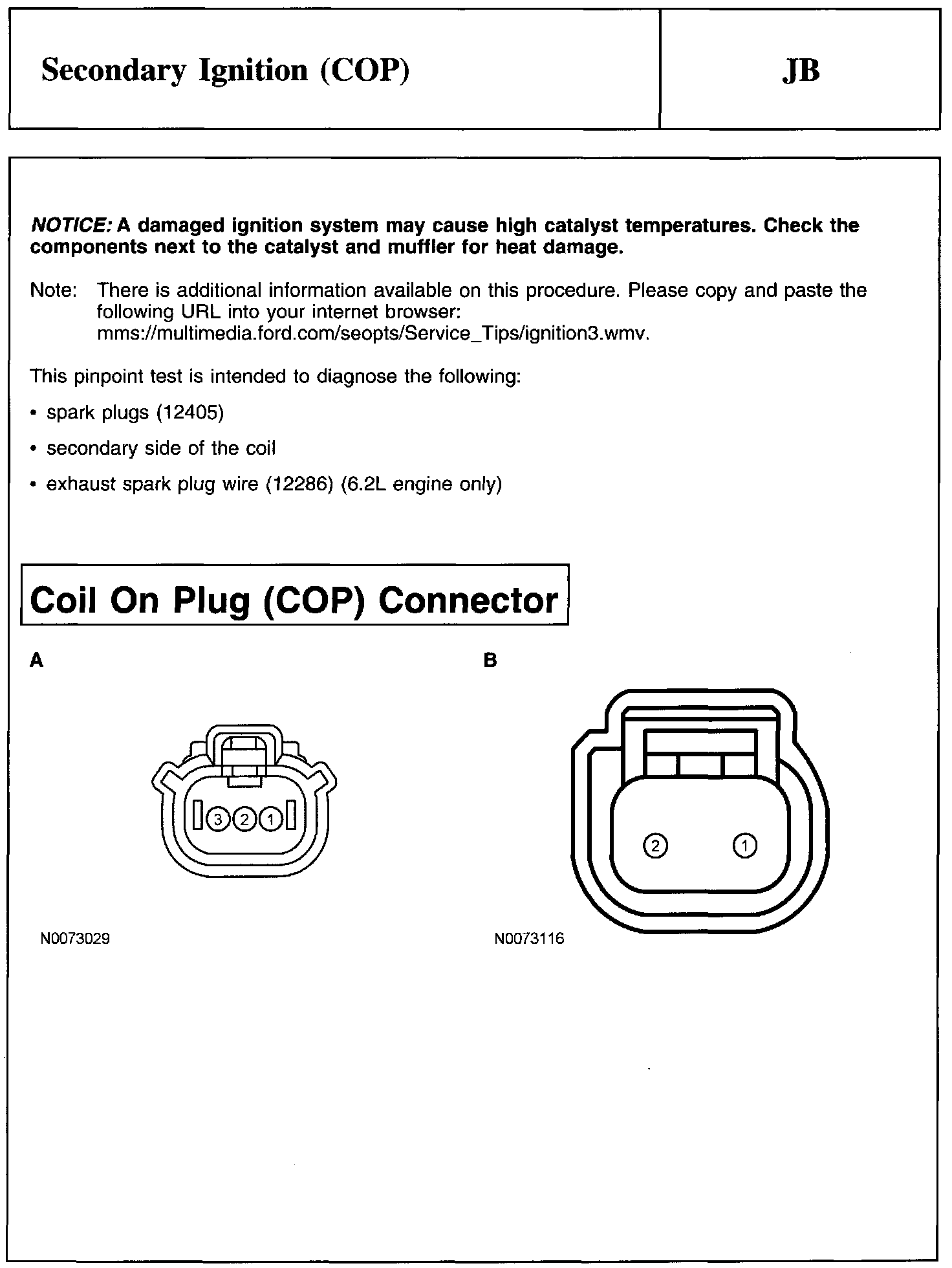

Notice, Note And Coil On Plug (COP) Connector:

Factory service manual diagram

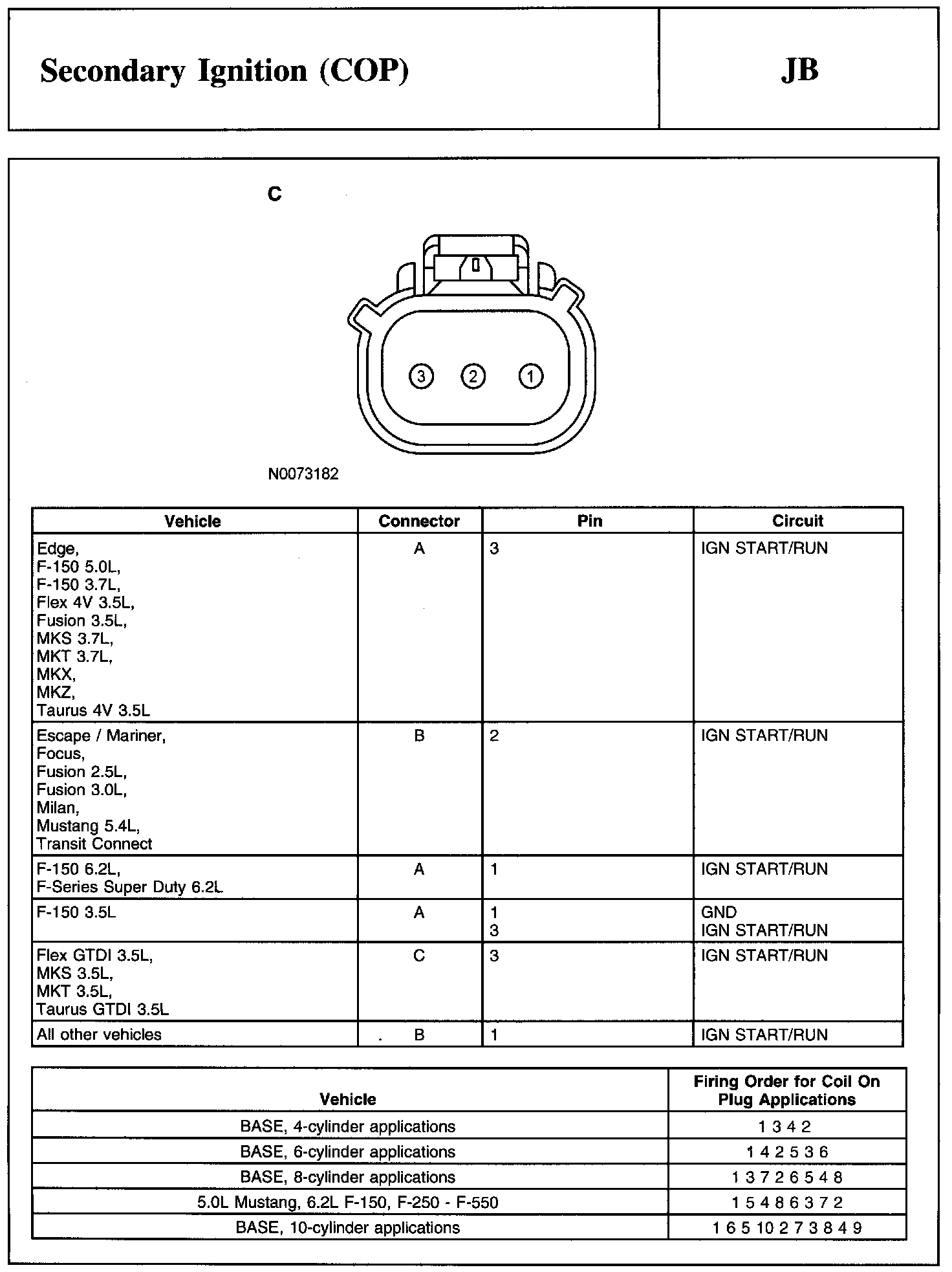

Coil On Plug (COP) Connector:

Factory service manual diagram

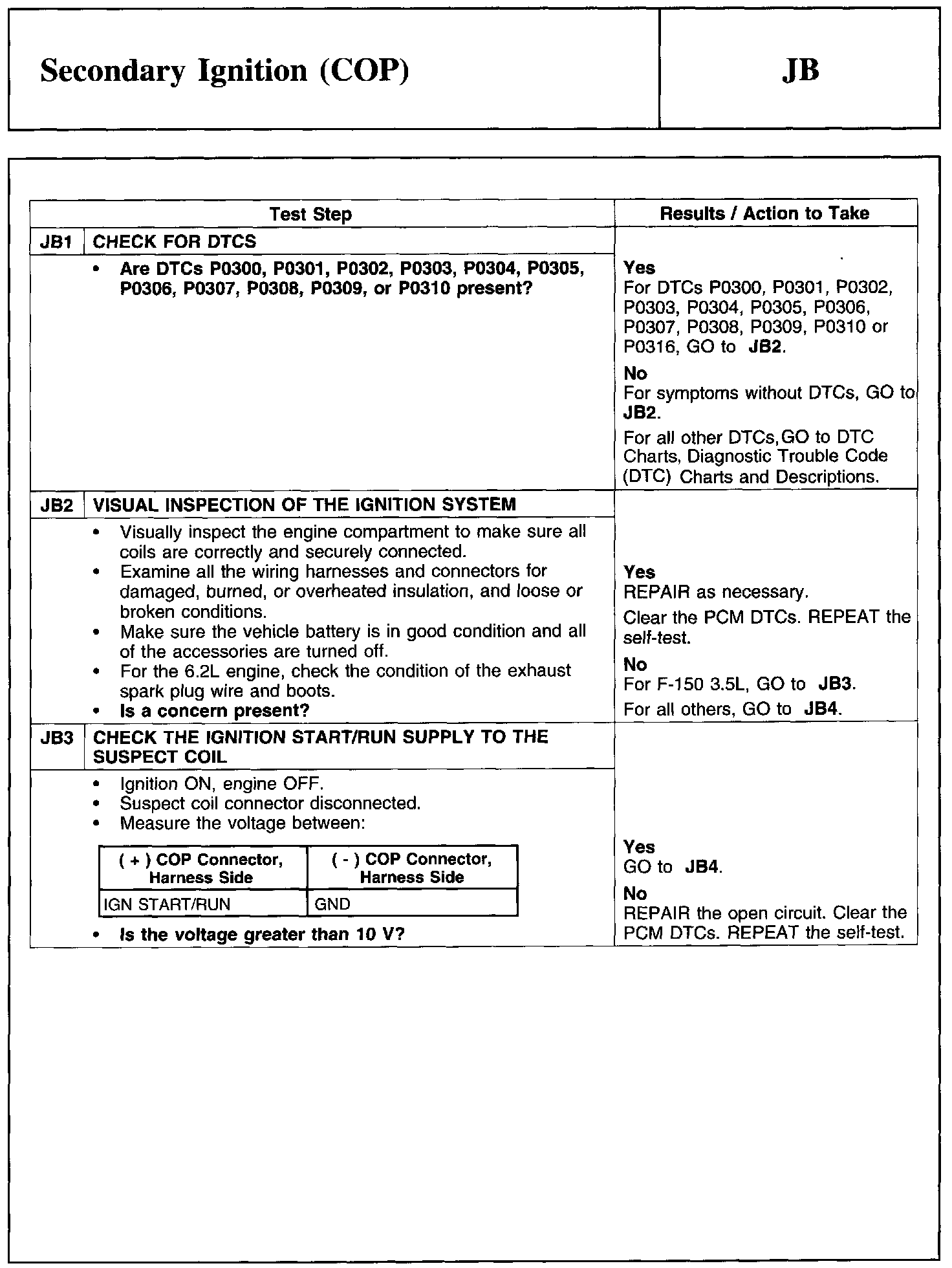

JB1-JB3:

Factory service manual diagram

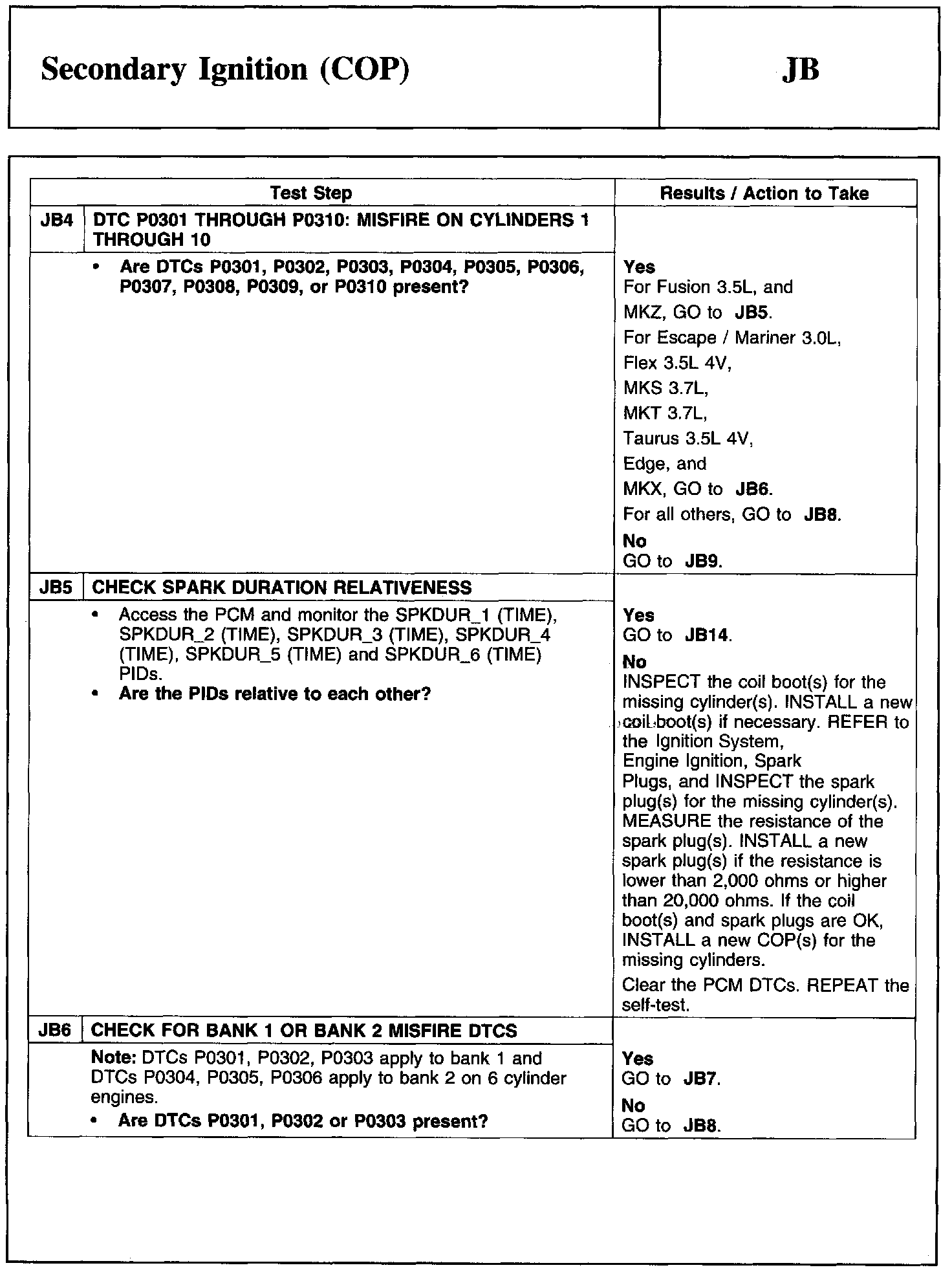

JB4-JB6:

Factory service manual diagram

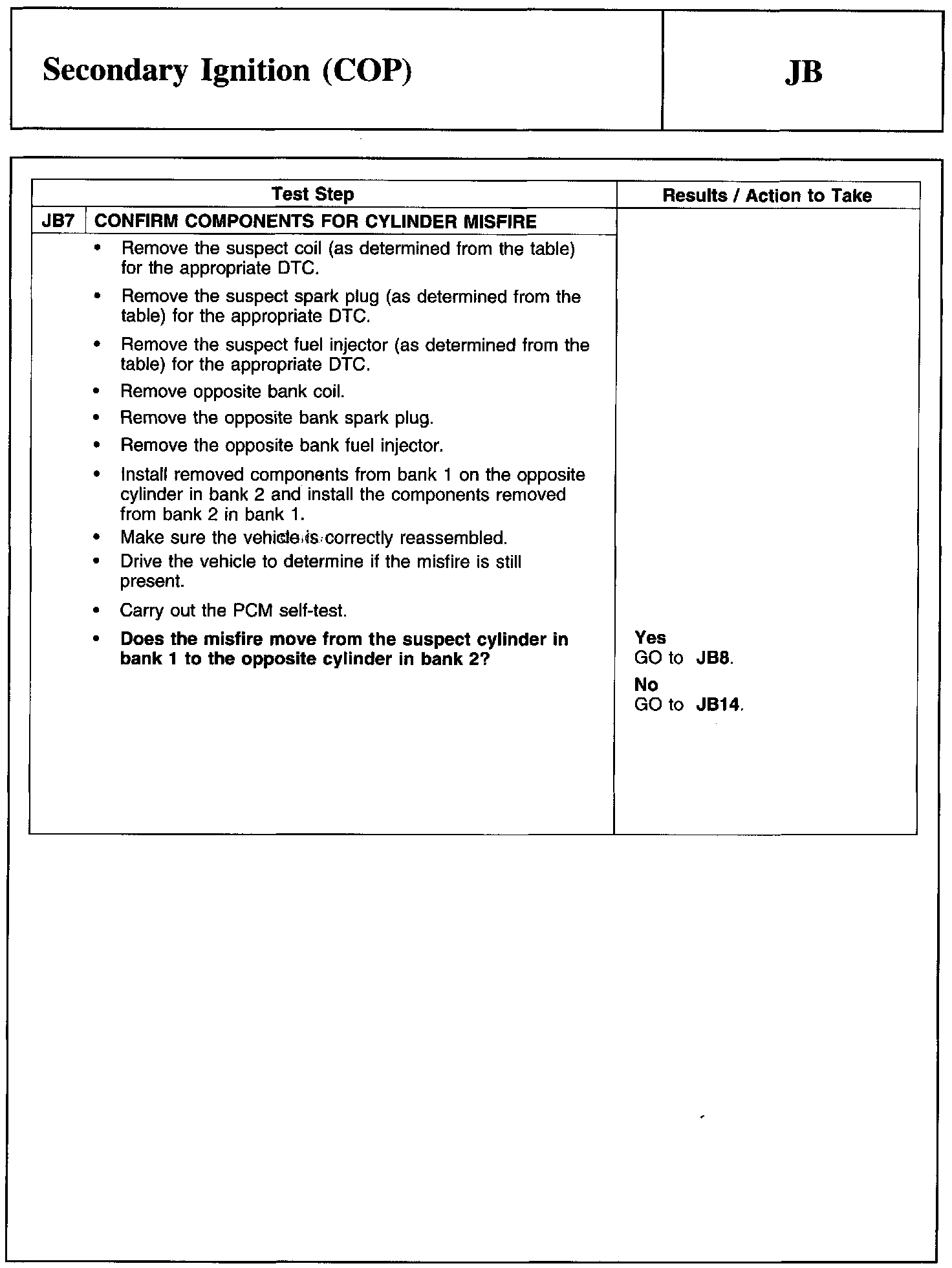

JB7:

Factory service manual diagram

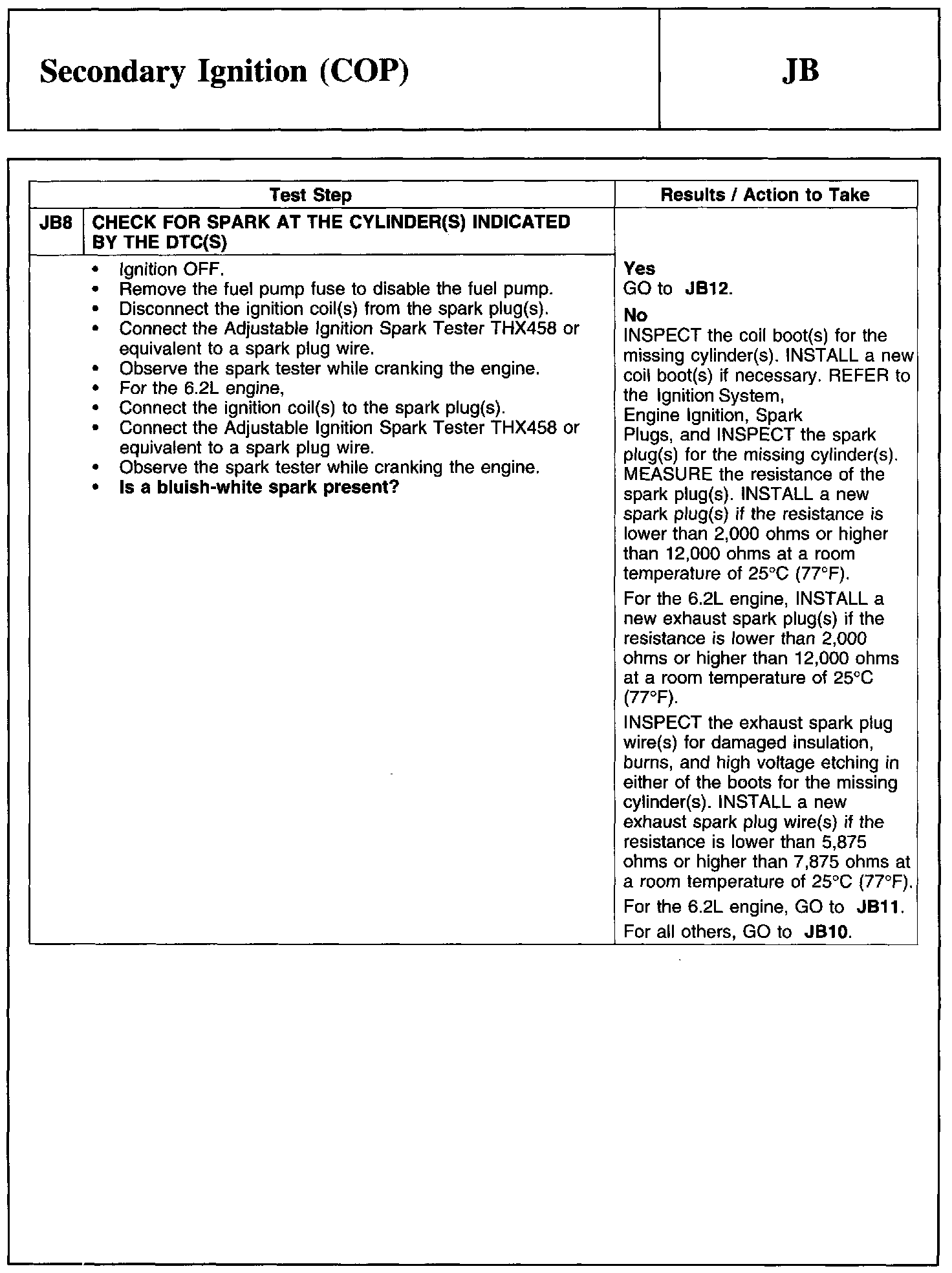

JB8:

Factory service manual diagram

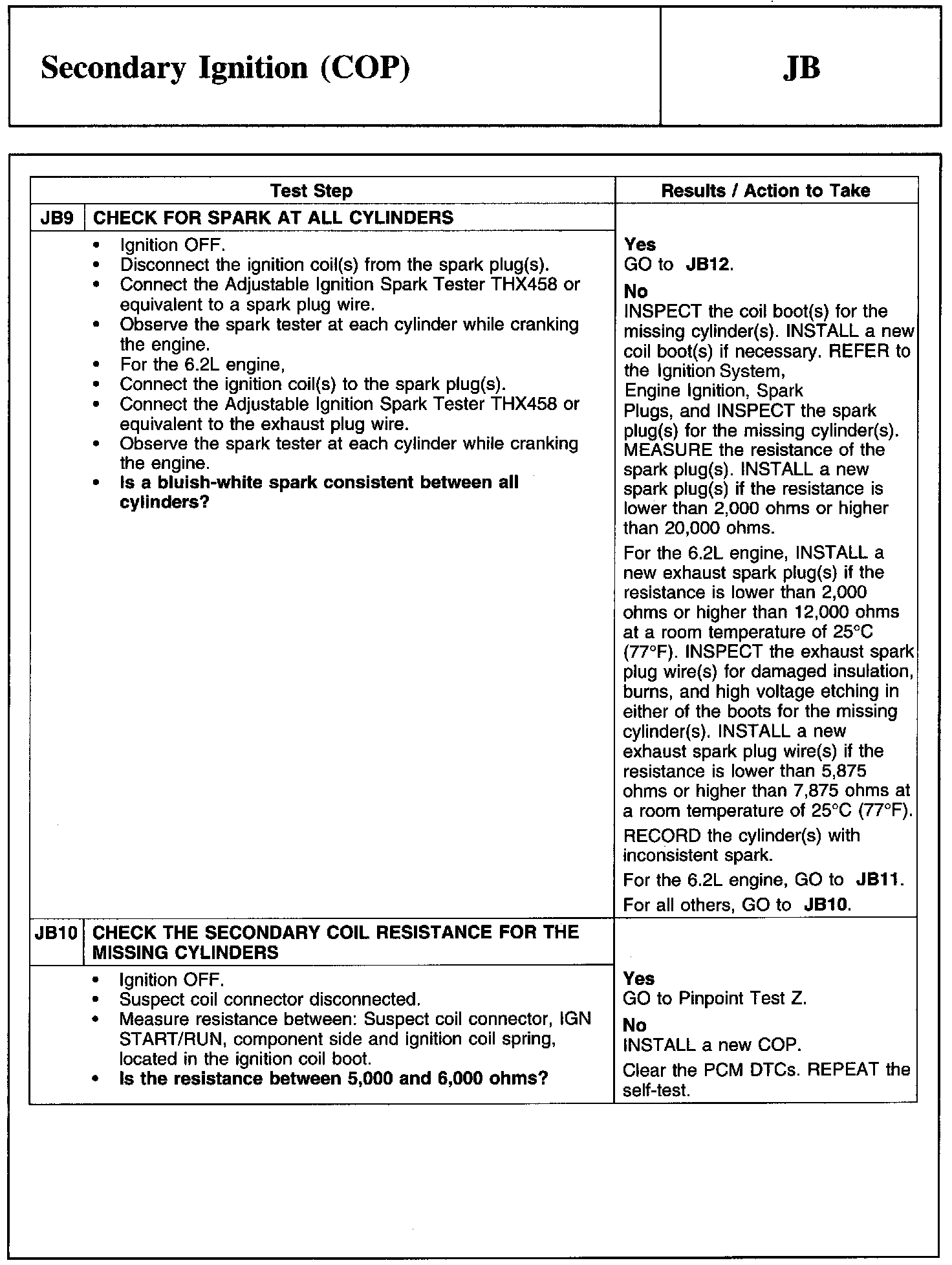

JB9-JB10:

Factory service manual diagram

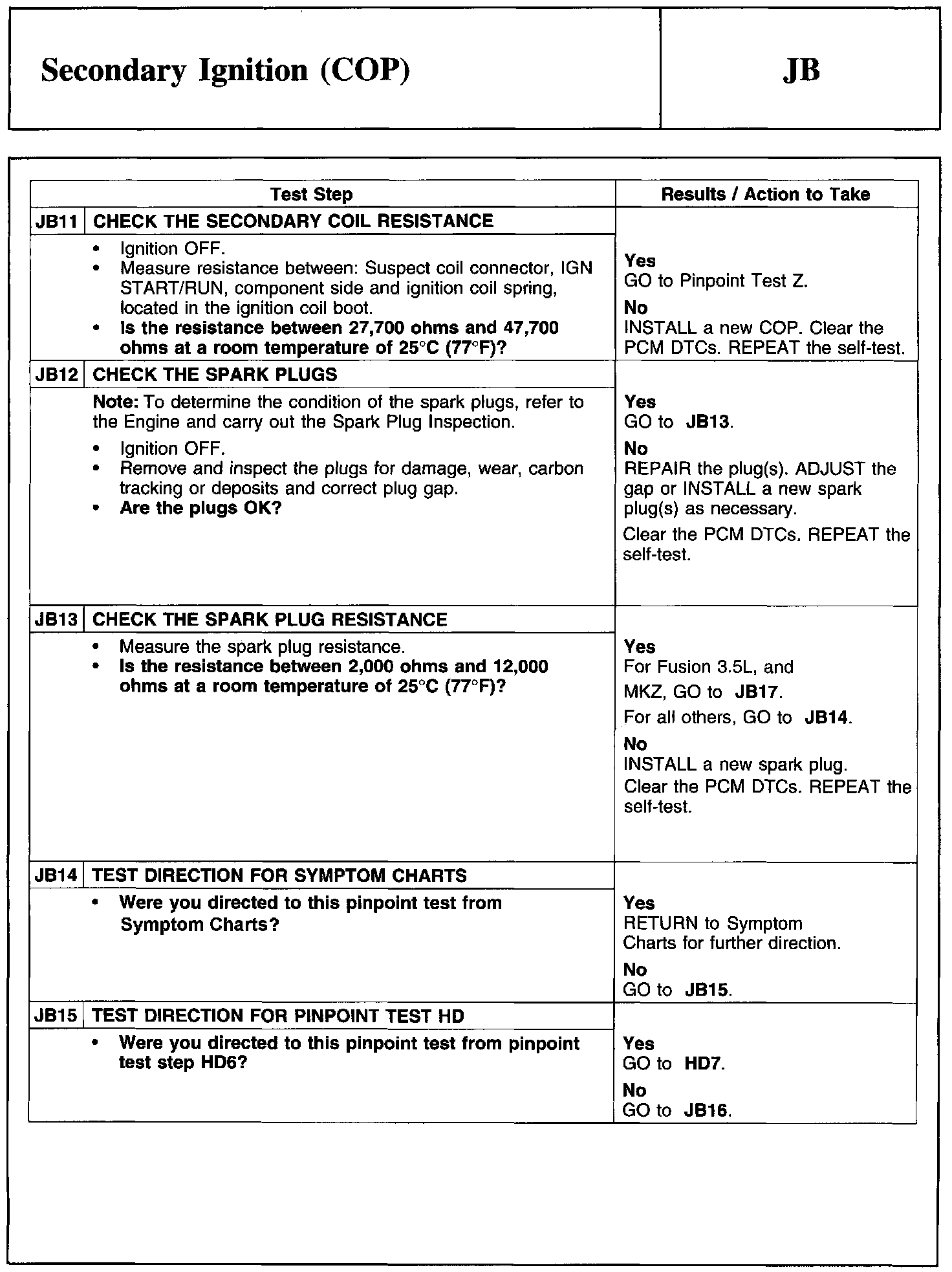

JB11-JB15:

Factory service manual diagram

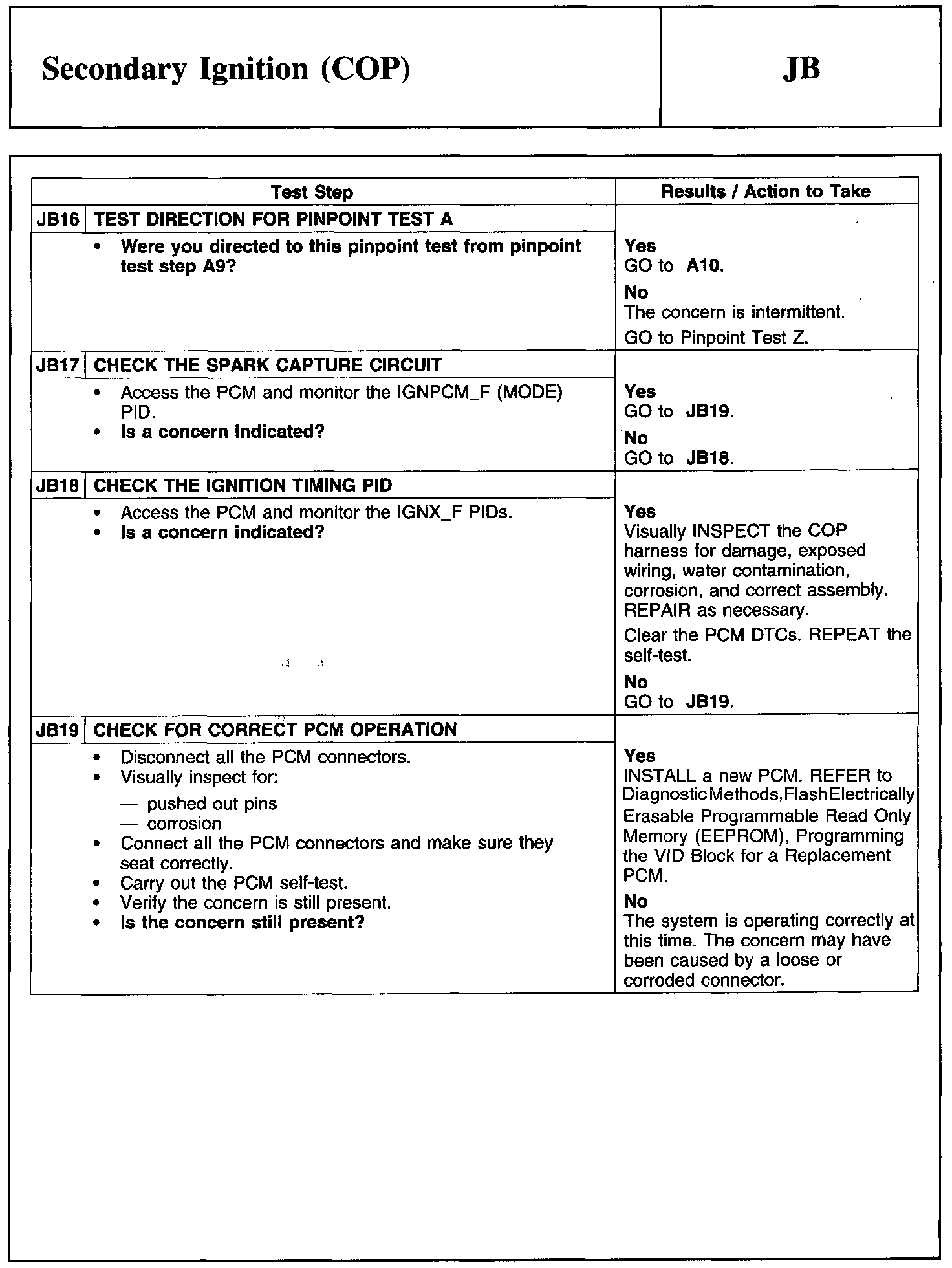

JB16-JB19:

Factory service manual diagram
