2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE

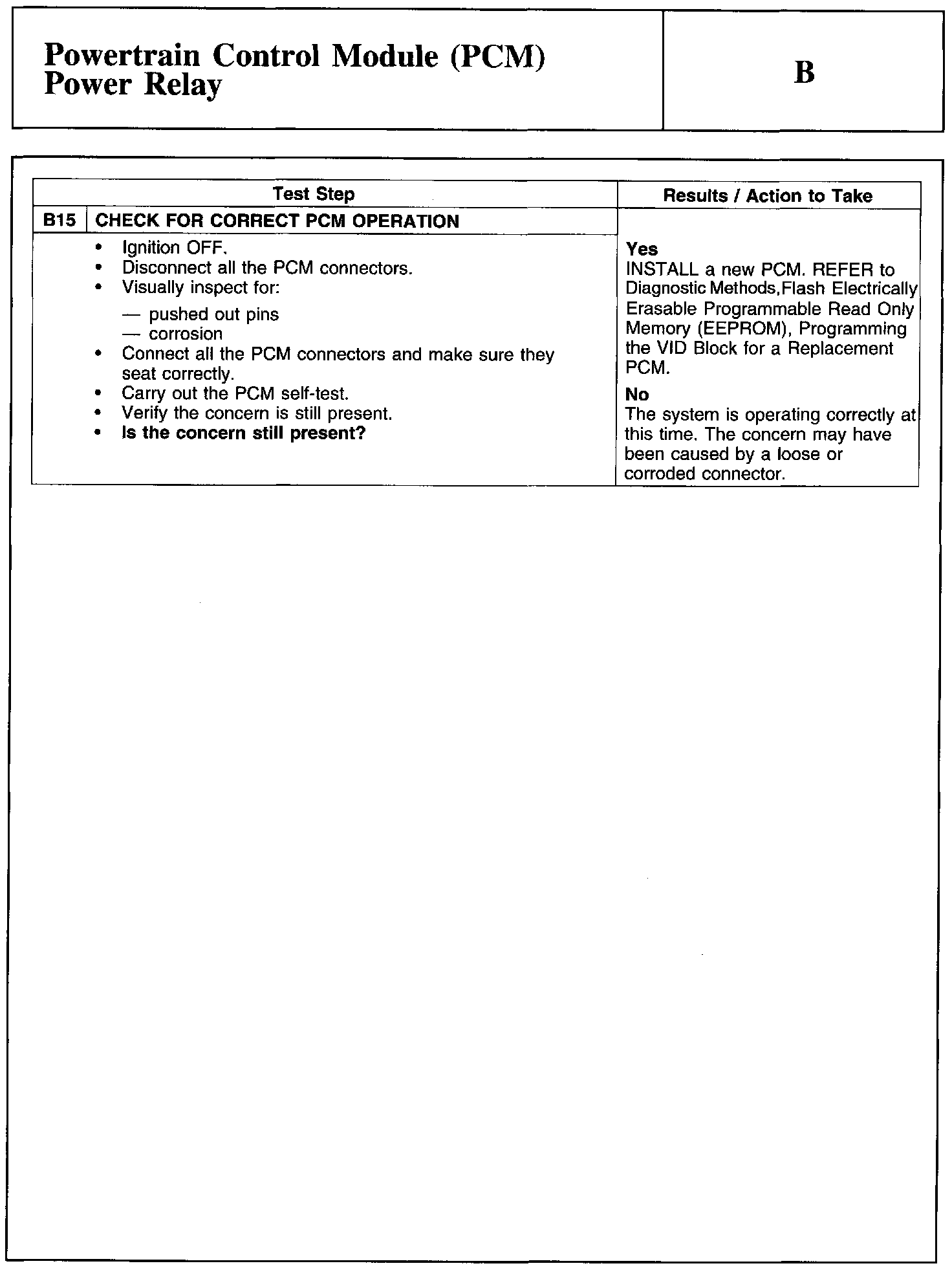

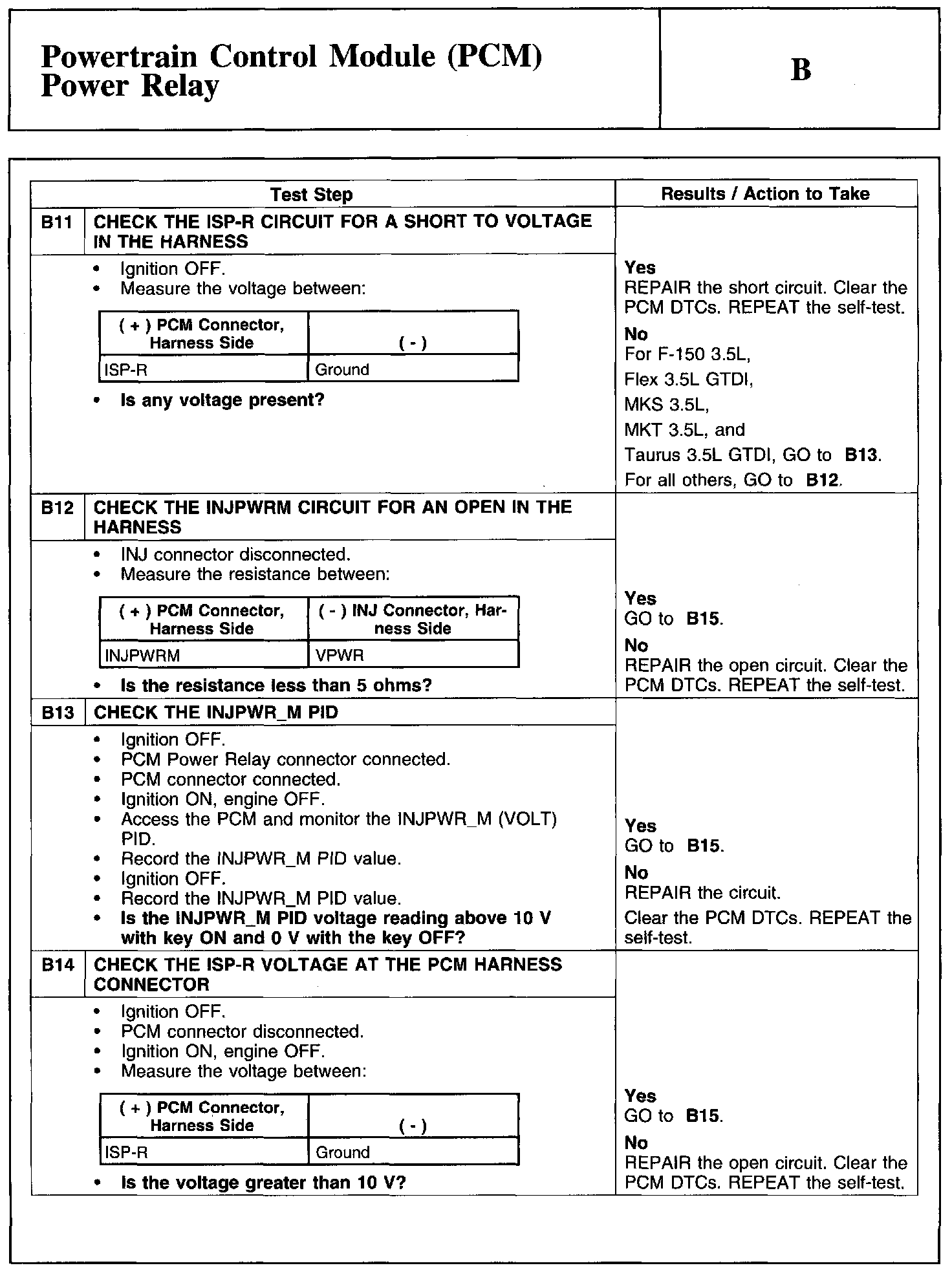

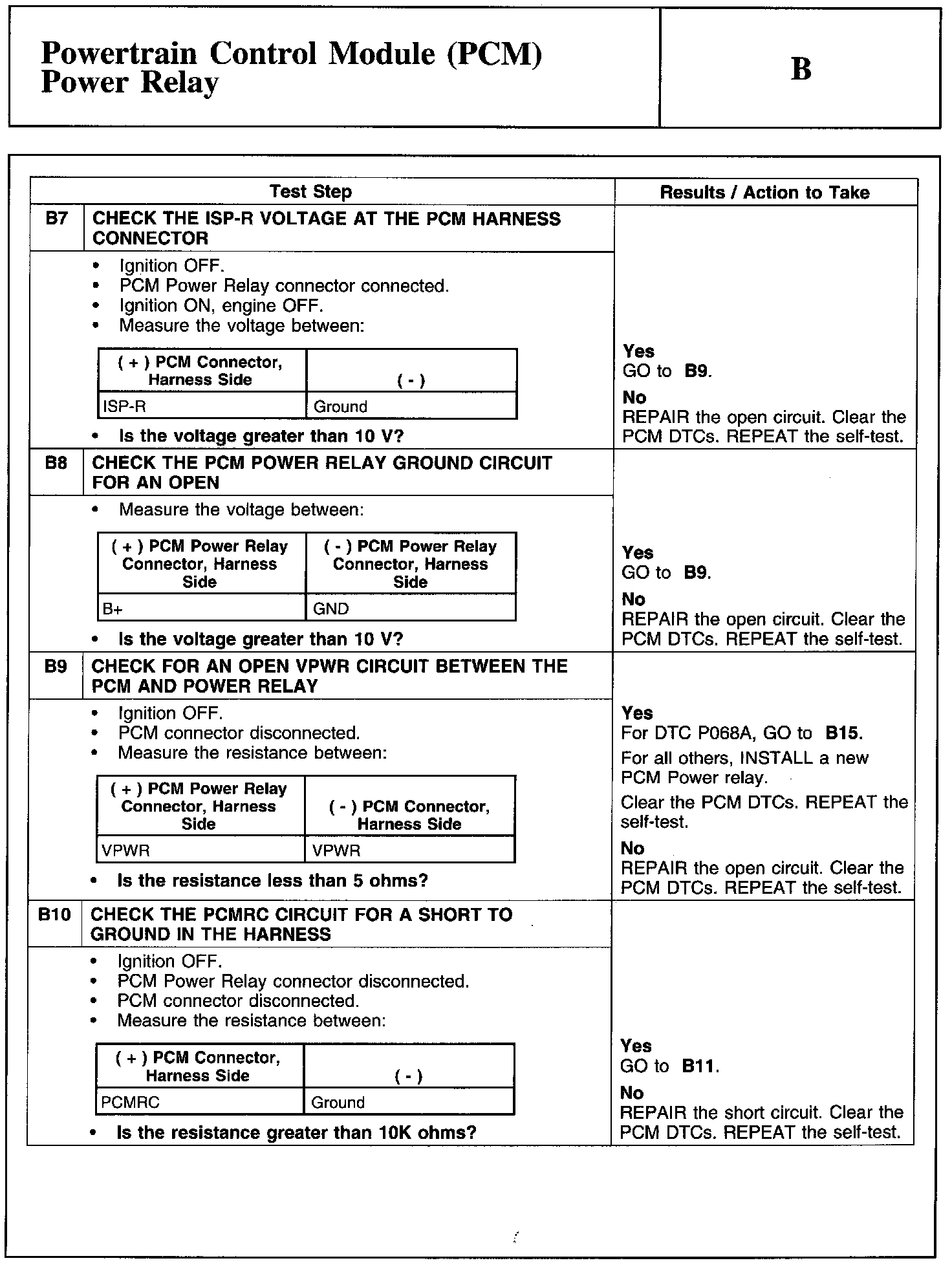

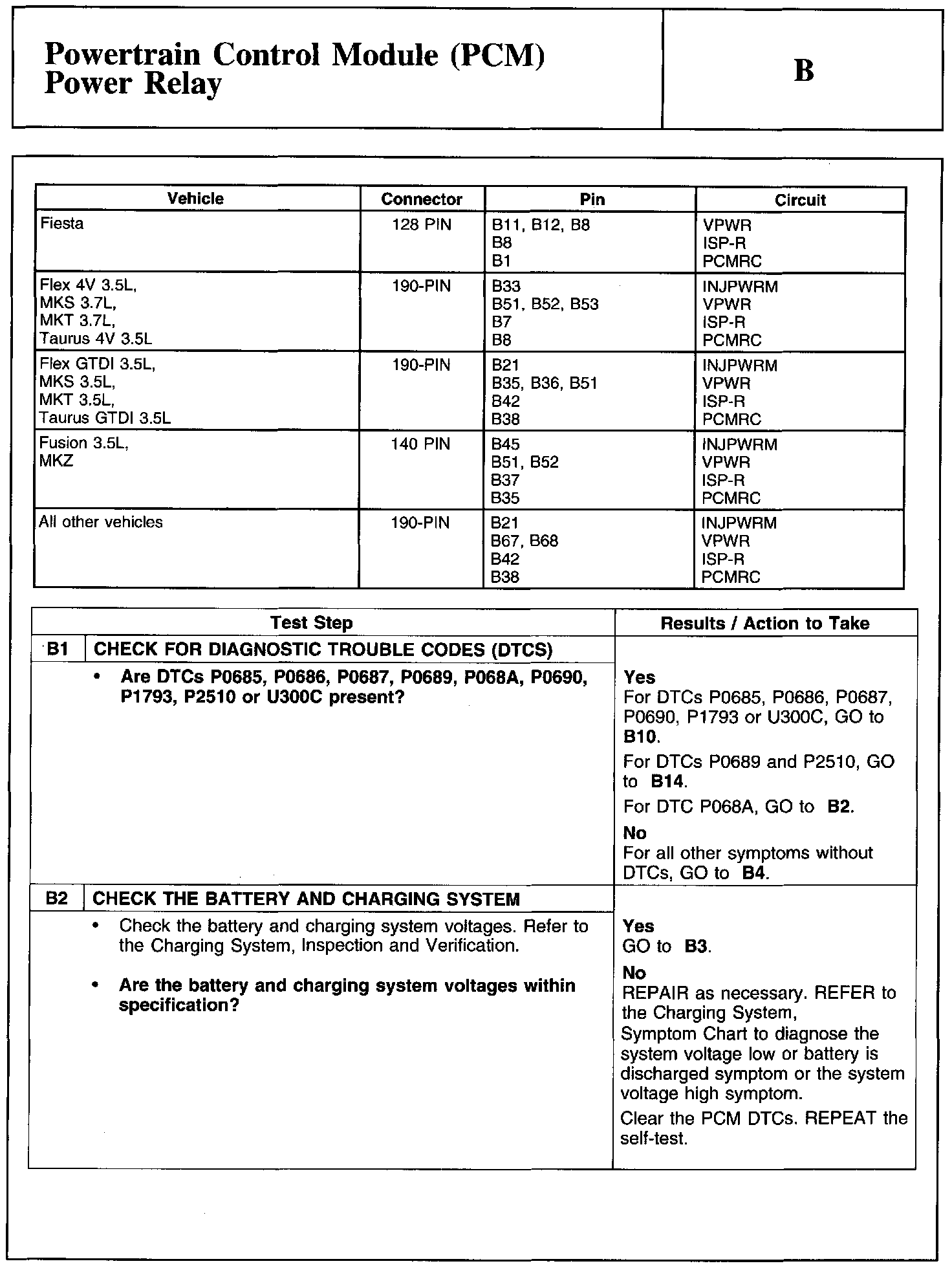

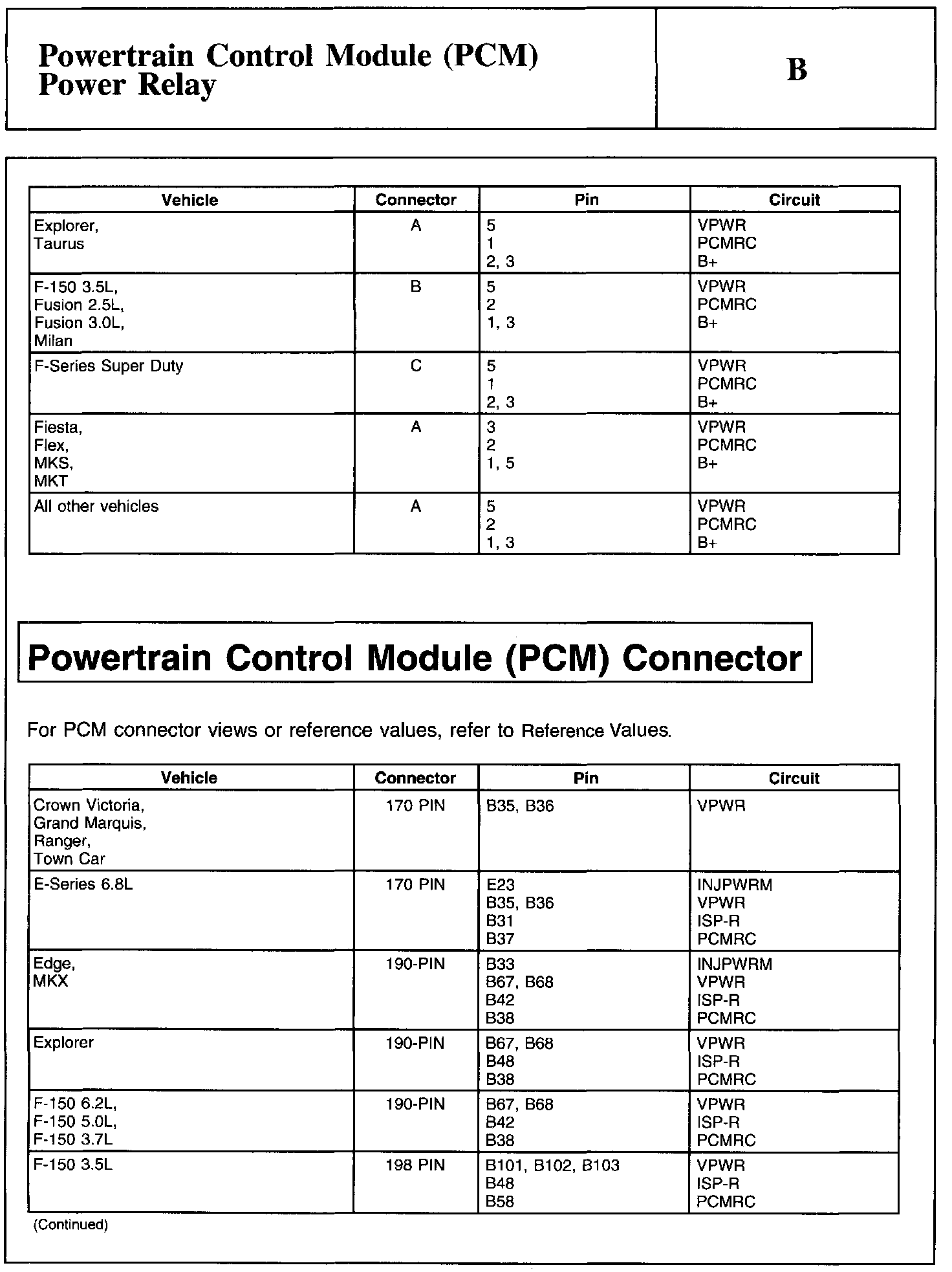

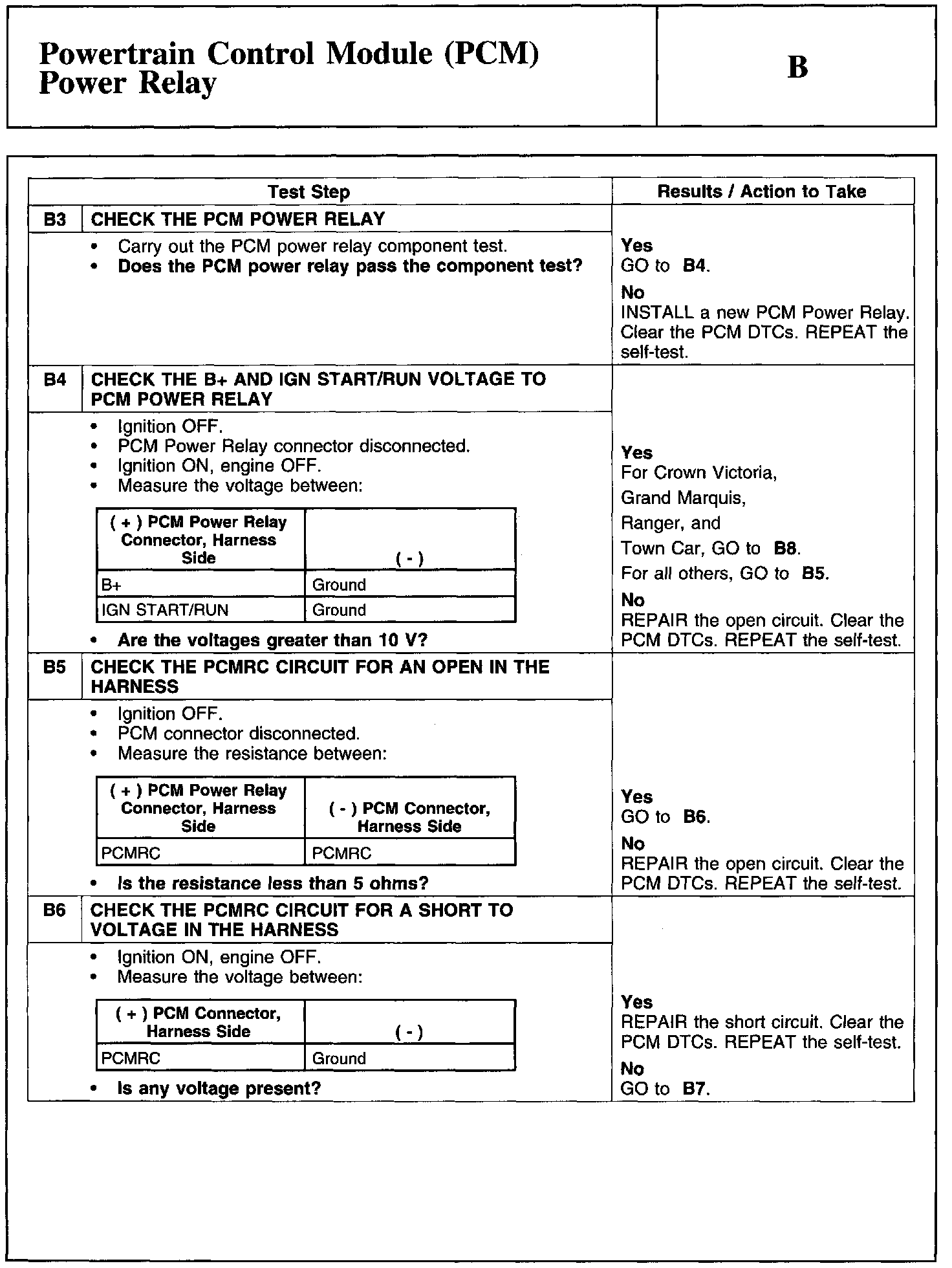

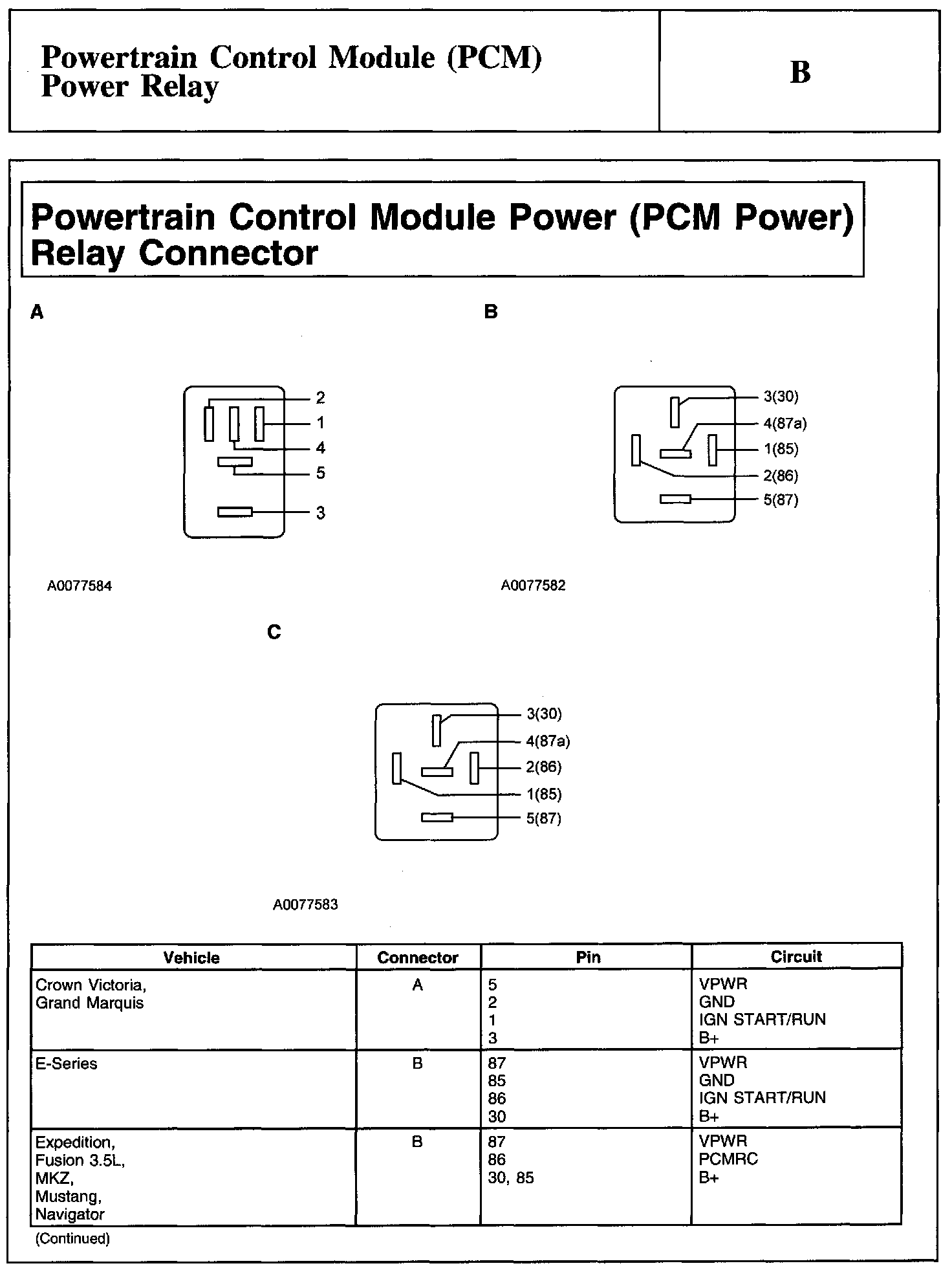

Test B: Powertrain Control Module (PCM) Power Relay
