2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair
Knock Sensor (KS)

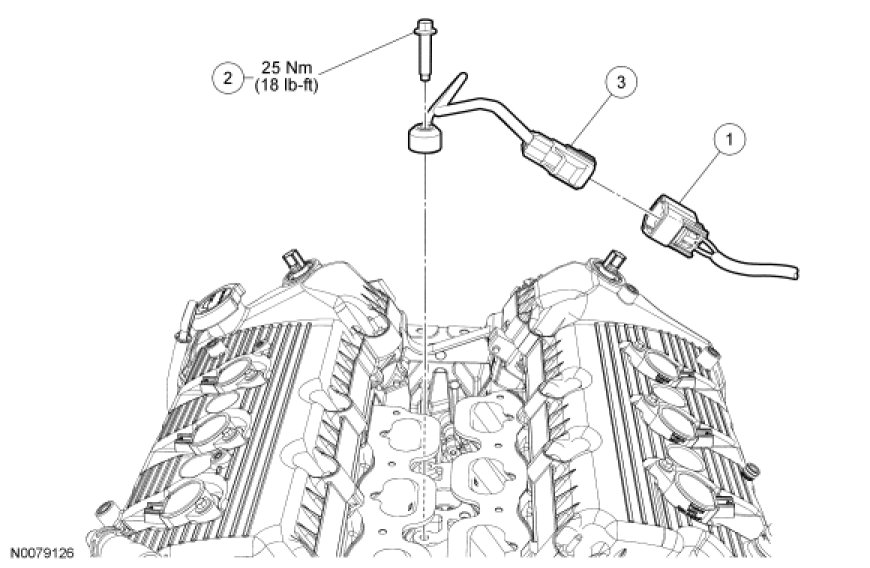

Cylinder-Head Mounted Knock Sensor (KS)

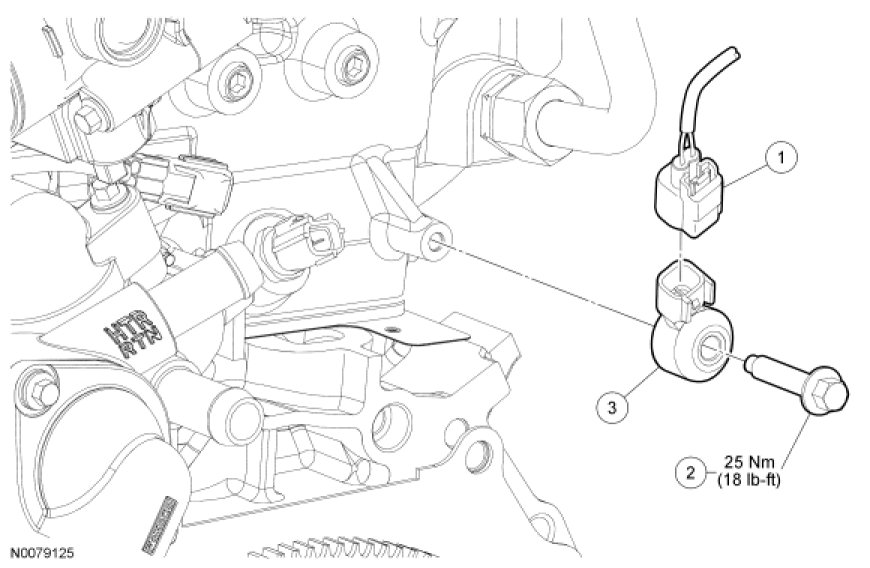

Cylinder-Block Mounted Knock Sensor (KS)
Removal
Cylinder head-mounted
1. Disconnect the Knock Sensor (KS) electrical connector.
2. Remove the bolt and the KS.
Engine block-mounted
3. Remove the lower intake manifold. For additional information, refer to Engine - 3.0L (4V) Lower Intake Manifold.
4. Disconnect the KS electrical connector.
5. Remove the bolt and the KS.
Installation
Engine block-mounted
1. Install the KS and the bolt.
- To install, tighten to 25 Nm (18 lb-ft).
2. Connect the KS electrical connector.
3. Install the lower intake manifold. For additional information, refer to Engine - 3.0L (4V) Lower Intake Manifold.
Cylinder head-mounted
4. Install the KS and the bolt.
- To install, tighten to 25 Nm (18 lb-ft).
5. Connect the KS electrical connector.
