2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Manifold Pressure/Vacuum Sensor: Service and Repair
Manifold Absolute Pressure (MAP) Sensor
Removal and Installation

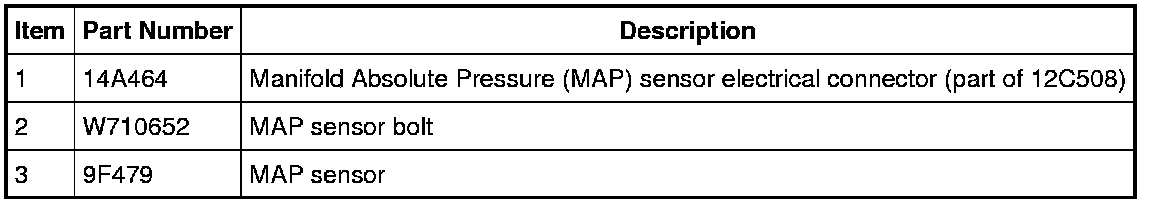

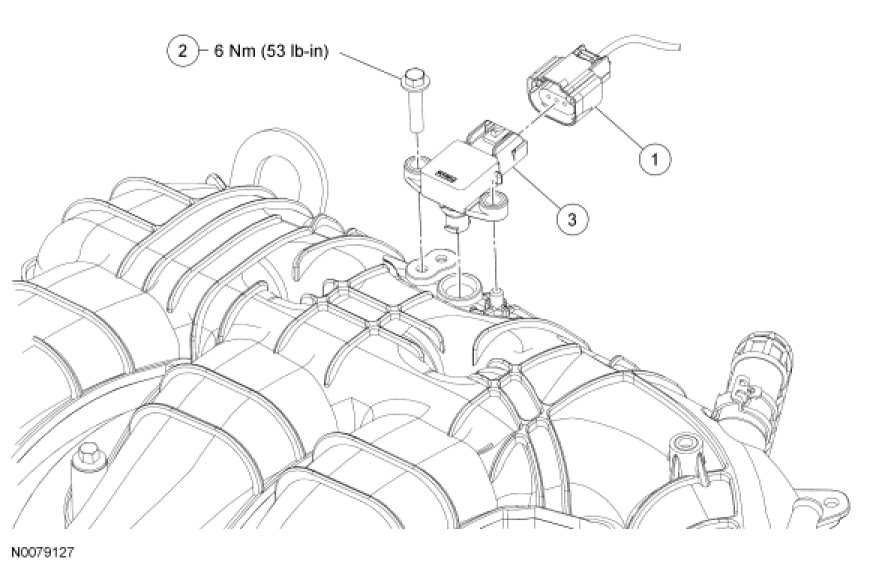

1. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.
2. Remove the bolt and the MAP sensor.
- To install, tighten to 6 Nm (53 lb-in).
- When installing the sensor, if the bolt fails to hold specified torque, relocate the sensor and retain, using the auxiliary bolt hole in the intake manifold.
3. NOTE: Clean and inspect the sealing surface.
To install, reverse the removal procedure.
