2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Module Configuration - DTC Charts
Module Configuration

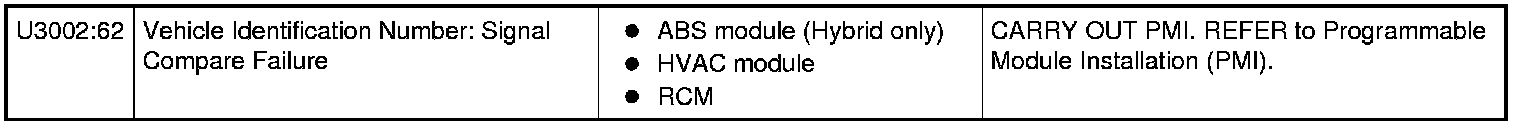

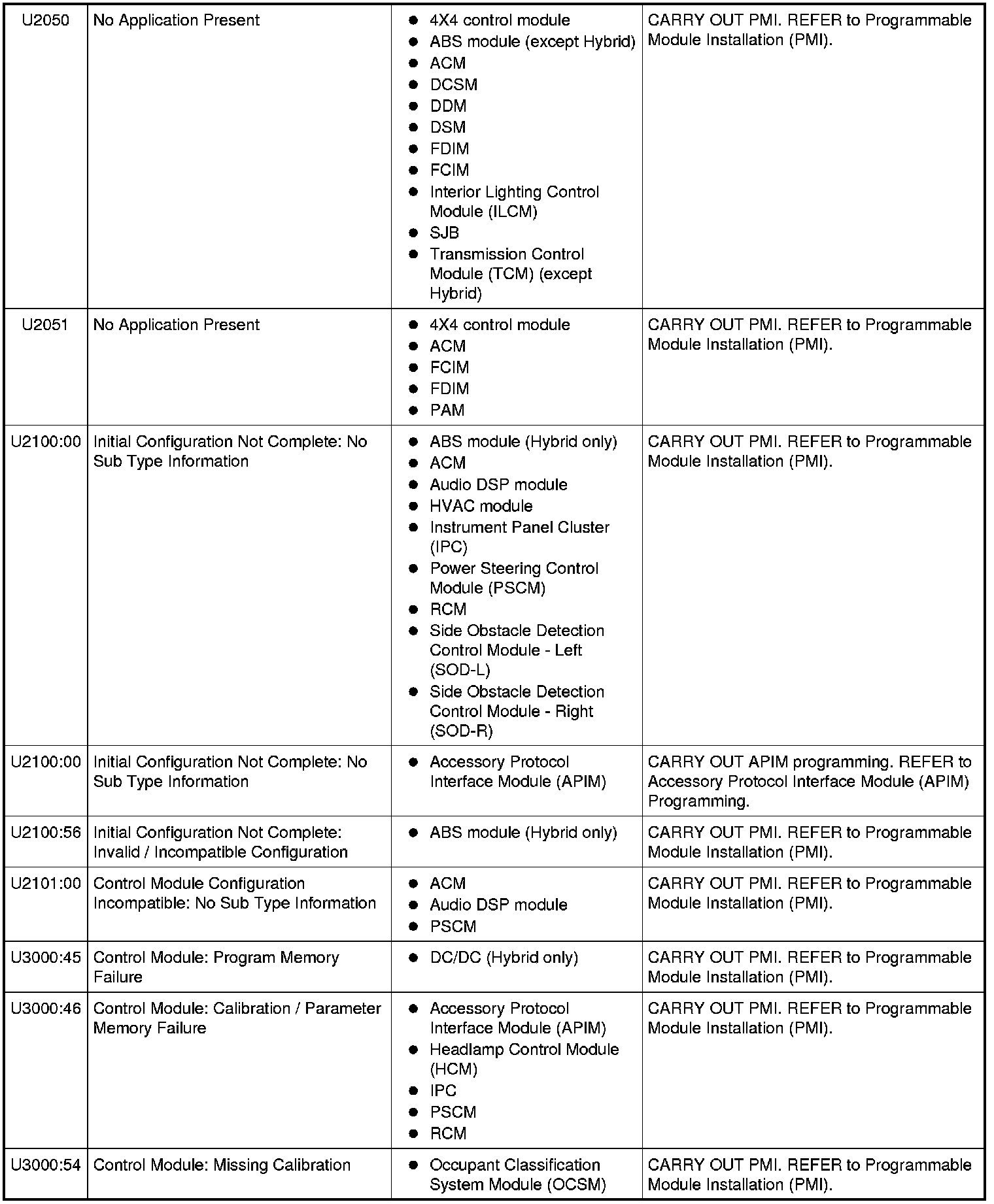

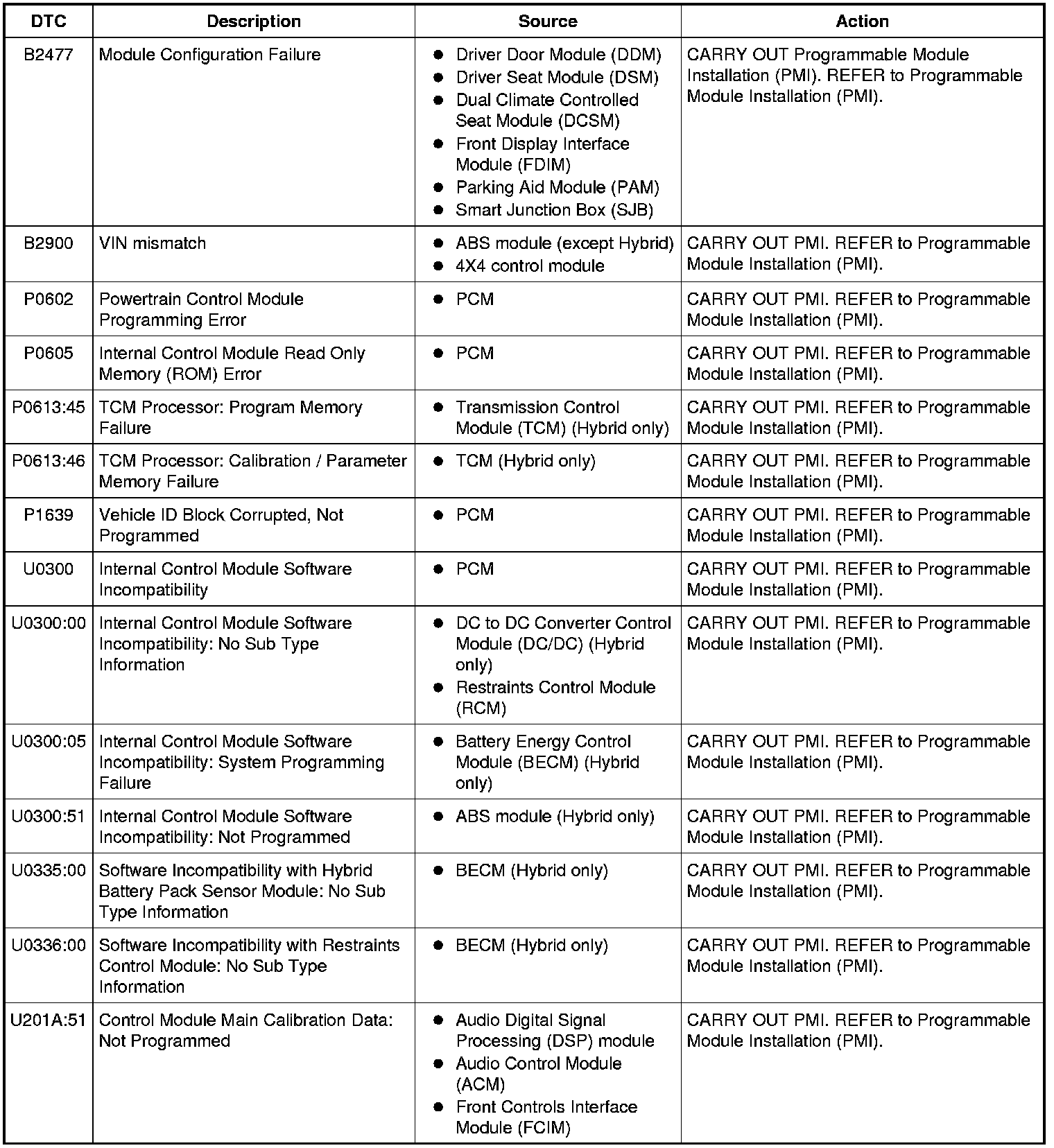

DTC Chart
NOTE: Some modules on this vehicle utilize a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous Memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.
