2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair
Crankshaft Position (CKP) Sensor
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

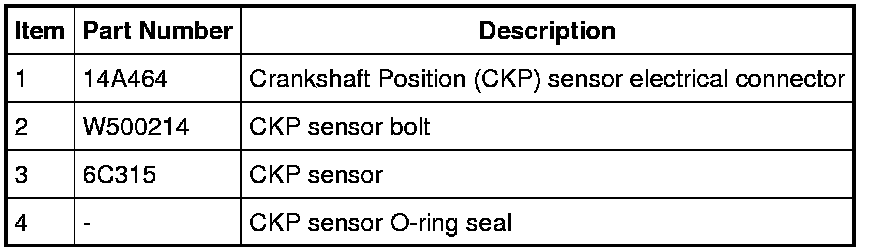

2. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

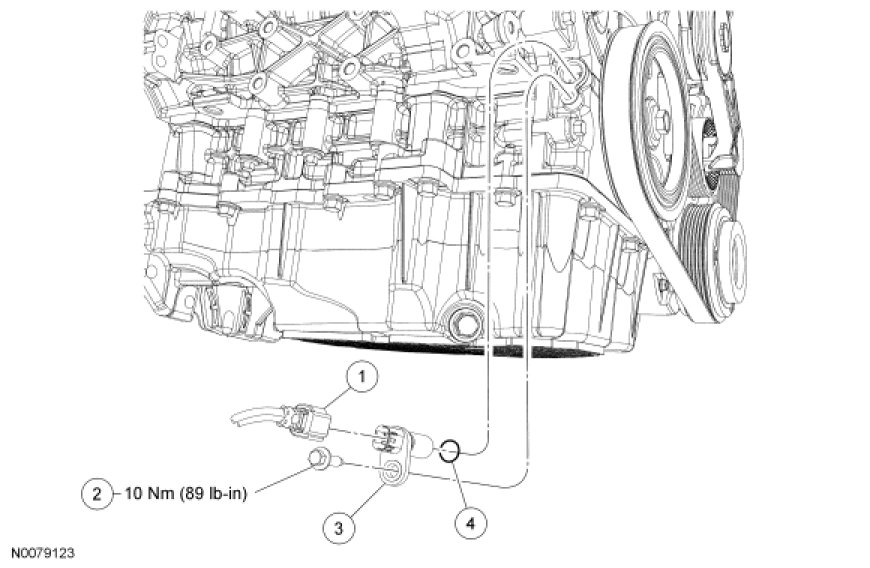

3. Remove the bolt and the CKP.
- To install, tighten to 10 Nm (89 lb-in).
- Inspect the O-ring seal and install new as necessary.

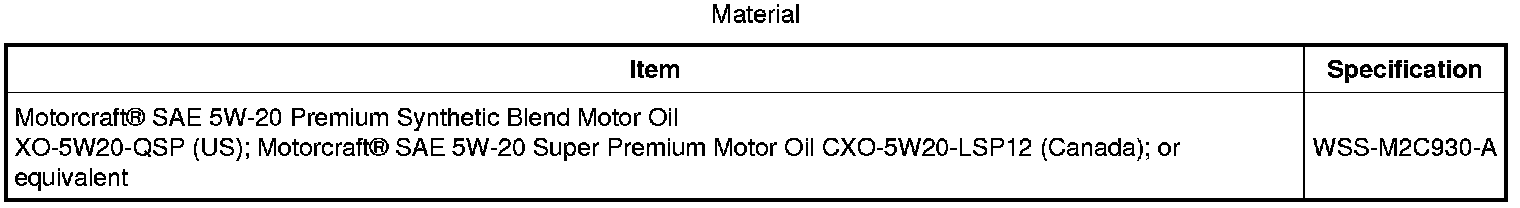

4. NOTE: Lubricate the CKP O-ring seal with clean engine oil.
To install, reverse the removal procedure.

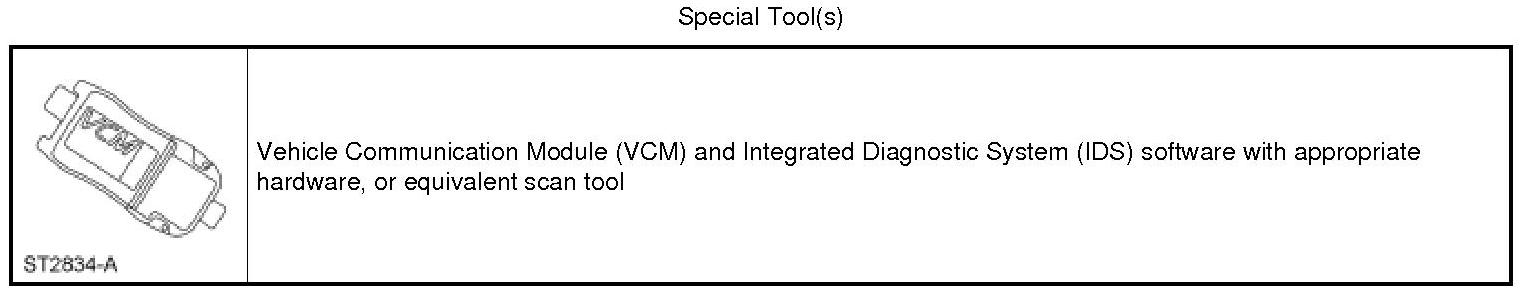

5. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
