2011 Mercury Milan AWD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Toe Adjustment - Front
Toe Adjustment - Front
1. Start the engine and center the steering wheel.
2. Turn the engine OFF and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.
3. Using alignment equipment and the manufacturer's instructions, measure the front toe.

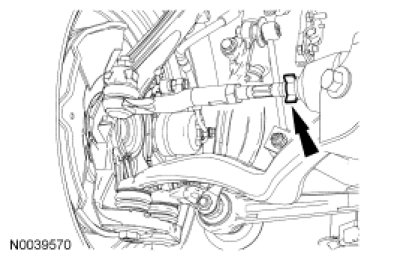

4. Remove the steering gear bellows clamps.

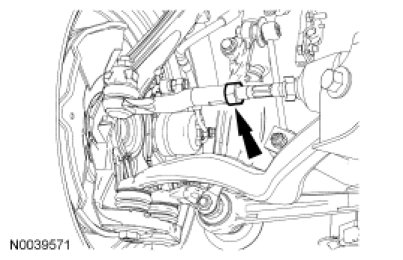

5. Loosen the tie-rod jam nuts.
6. NOTE: Do not allow the steering gear bellows to twist when the tie rod is rotated.

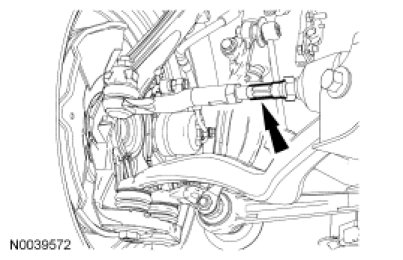

Rotate the tie rods until the toe setting is within specifications.
7. Tighten the jam nuts to 80 Nm (59 lb-ft).
8. Install the steering gear bellows clamps.
9. Recheck the front toe settings and adjust as necessary.
