Splice Locations

2011 Mercury Milan AWD V6-3.0LSECTION Splice Locations

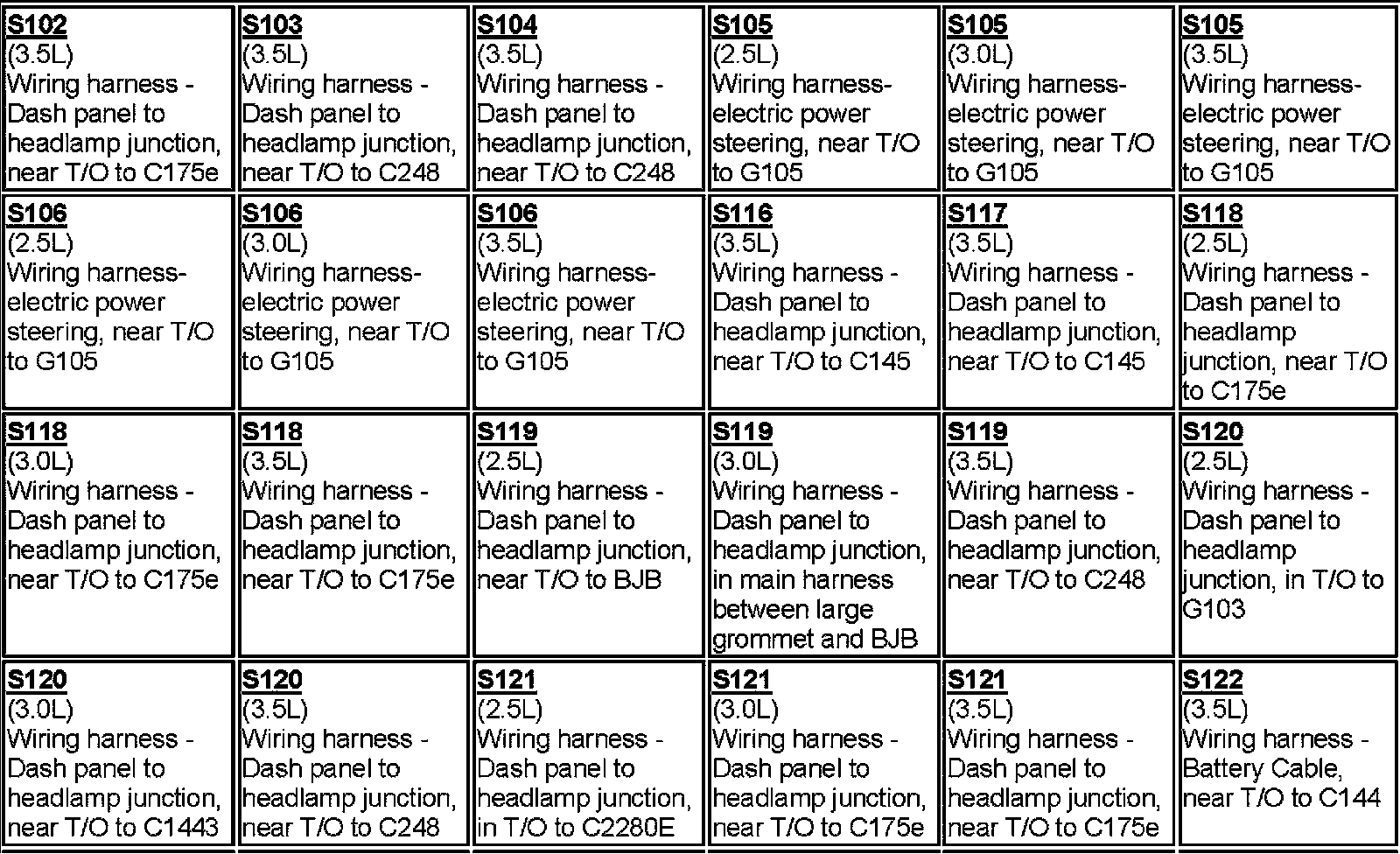

S102-S122:

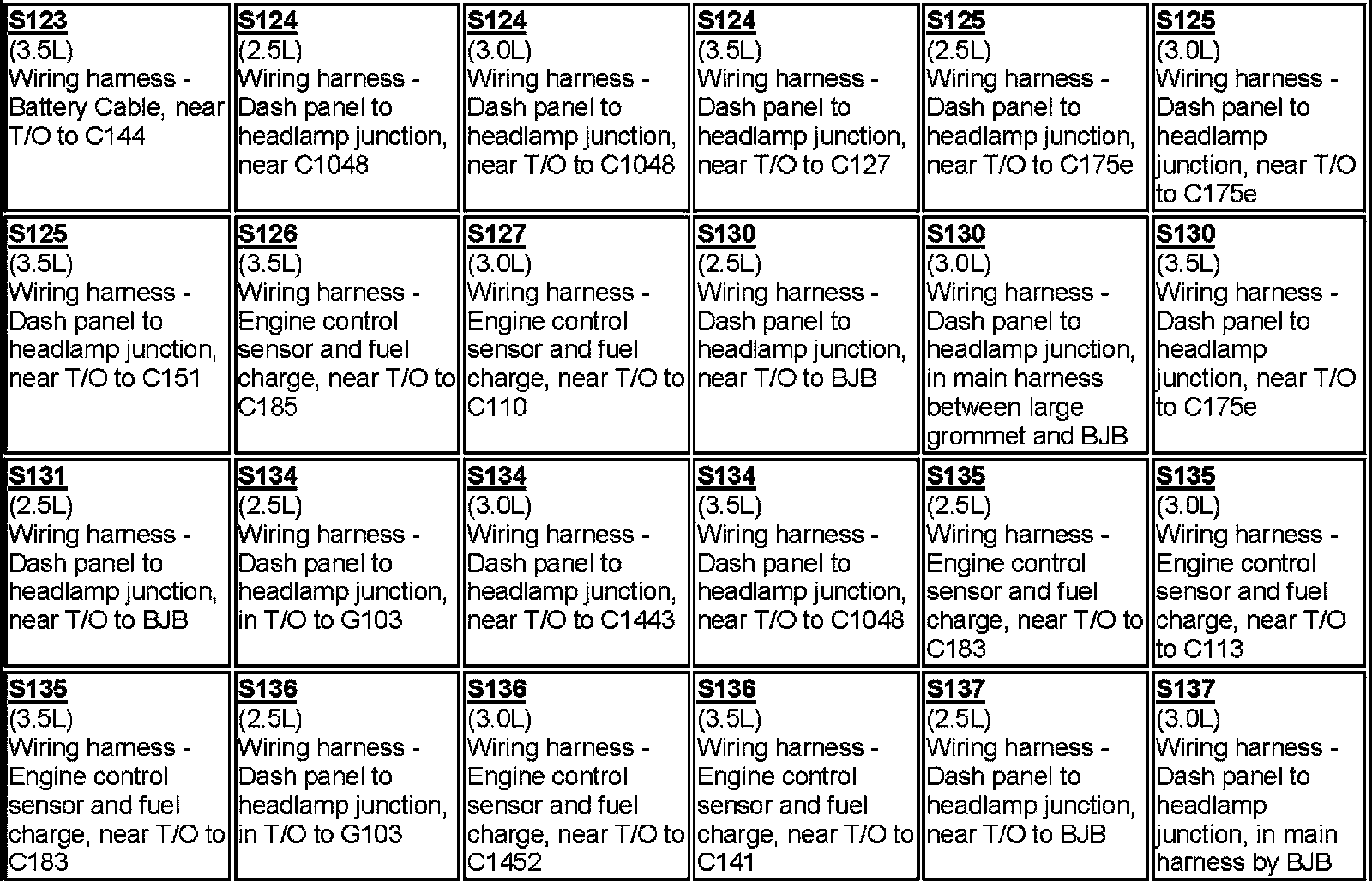

S123-S137:





S137-S151:





S151-S170:

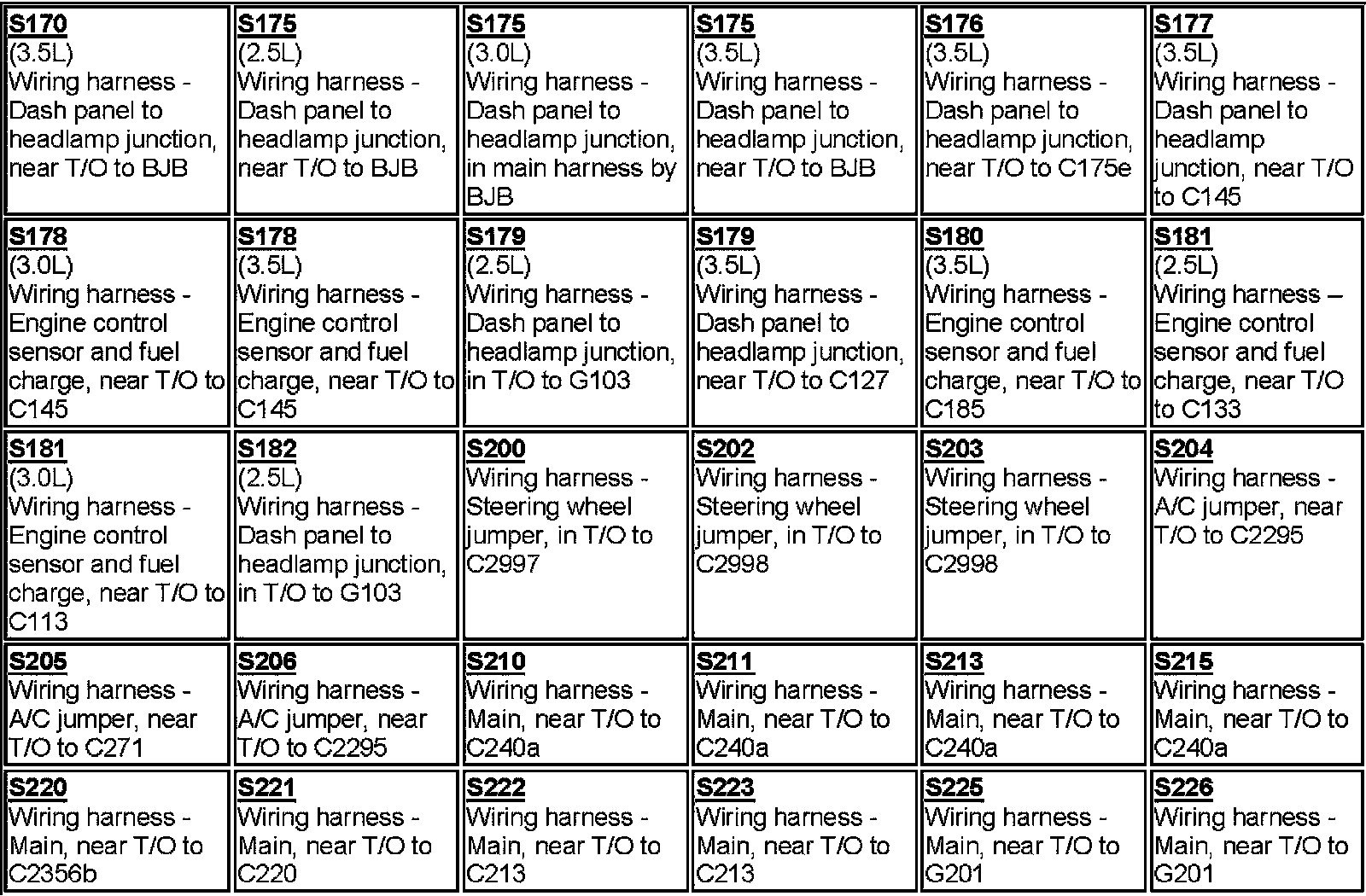

S170-S226:





S227-S321:

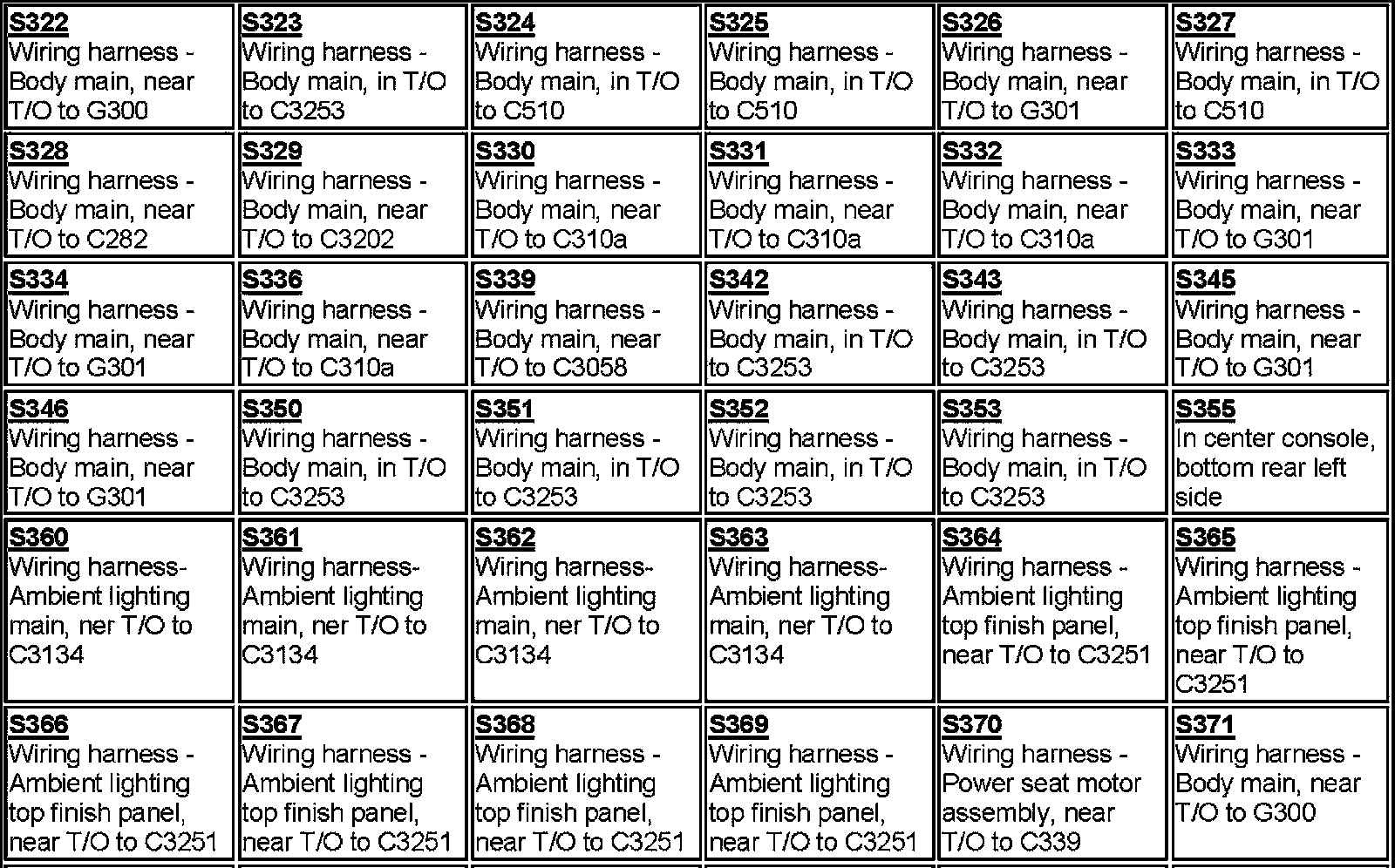

S322-S371:

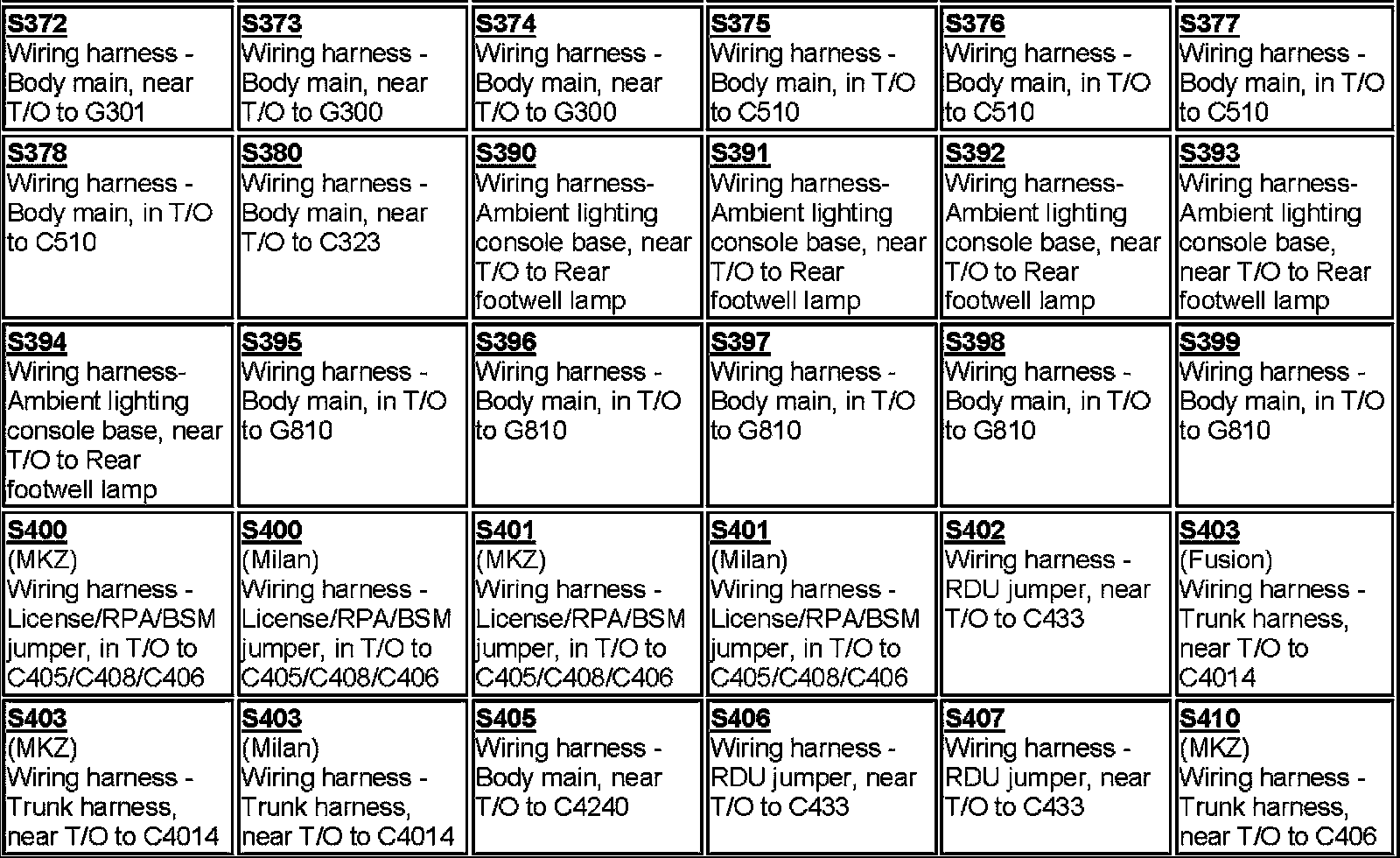

S372-S410:

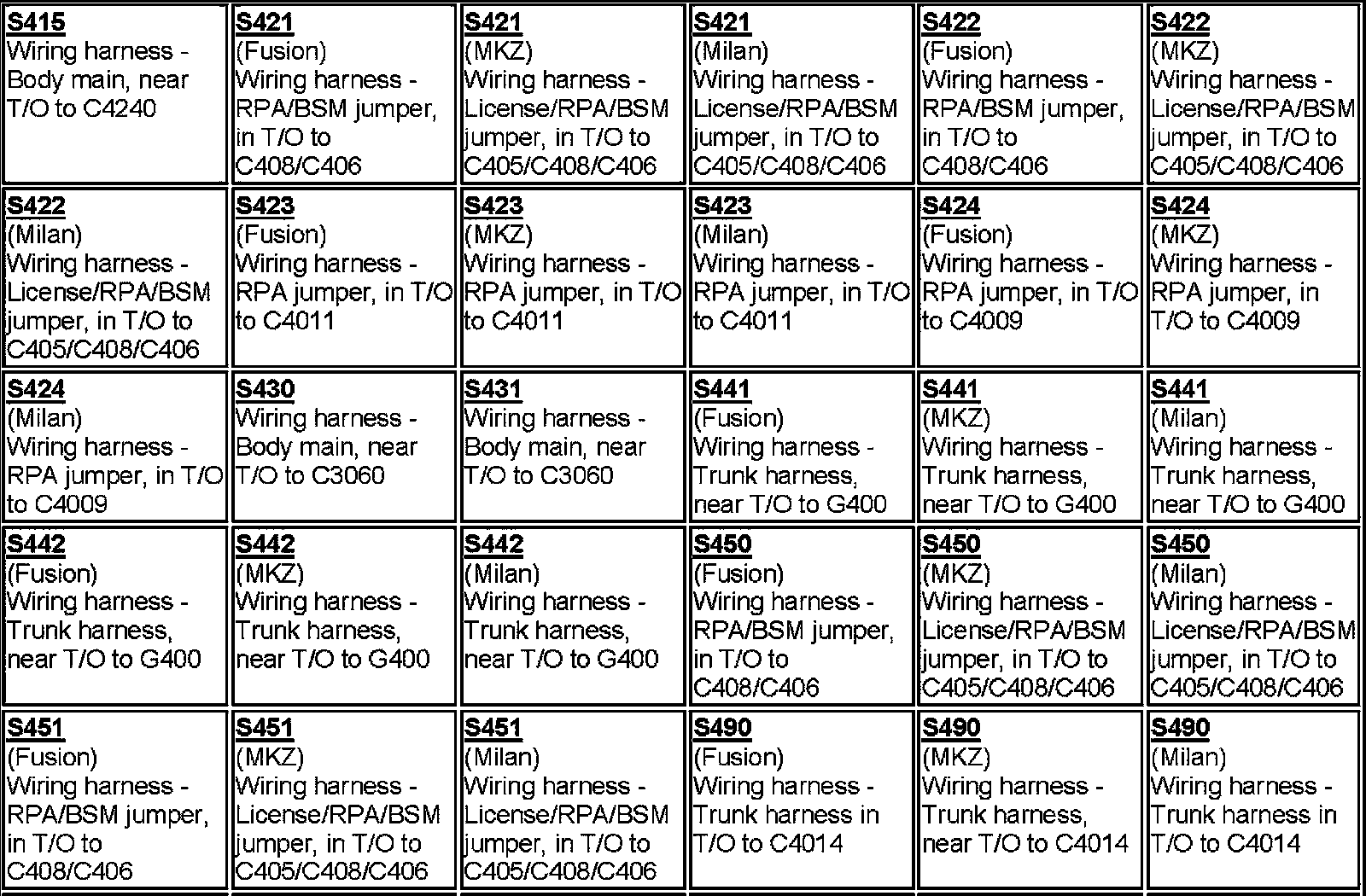

S415-S490:





S491-S700:

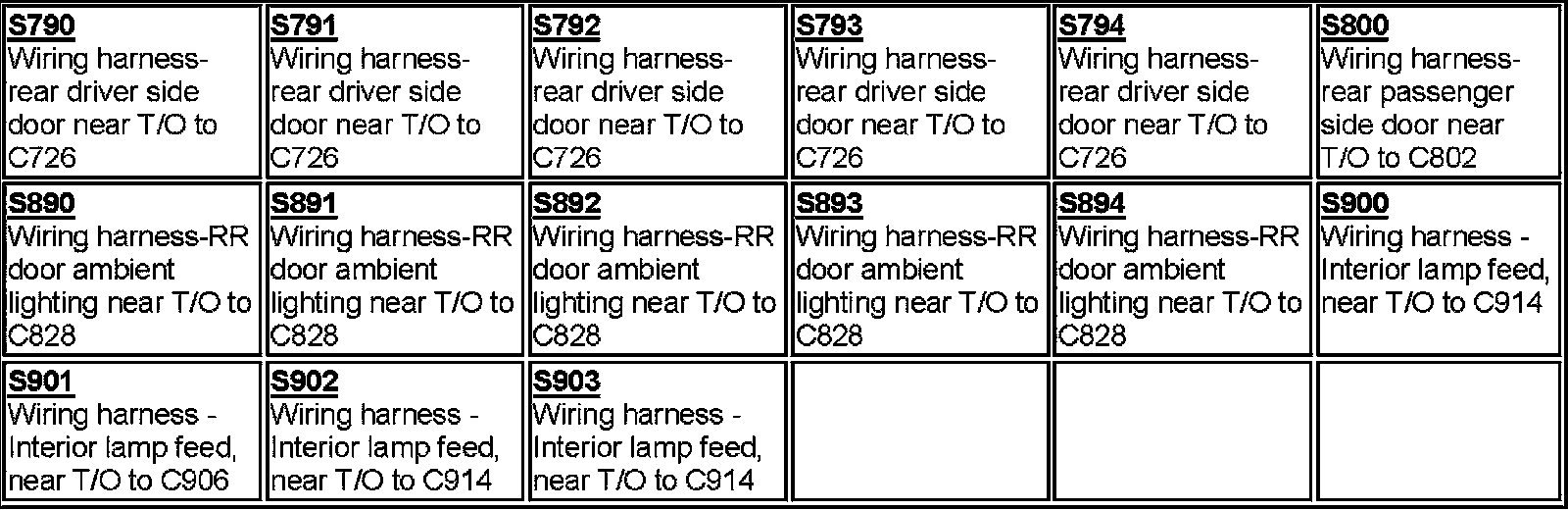

S790-S903:
